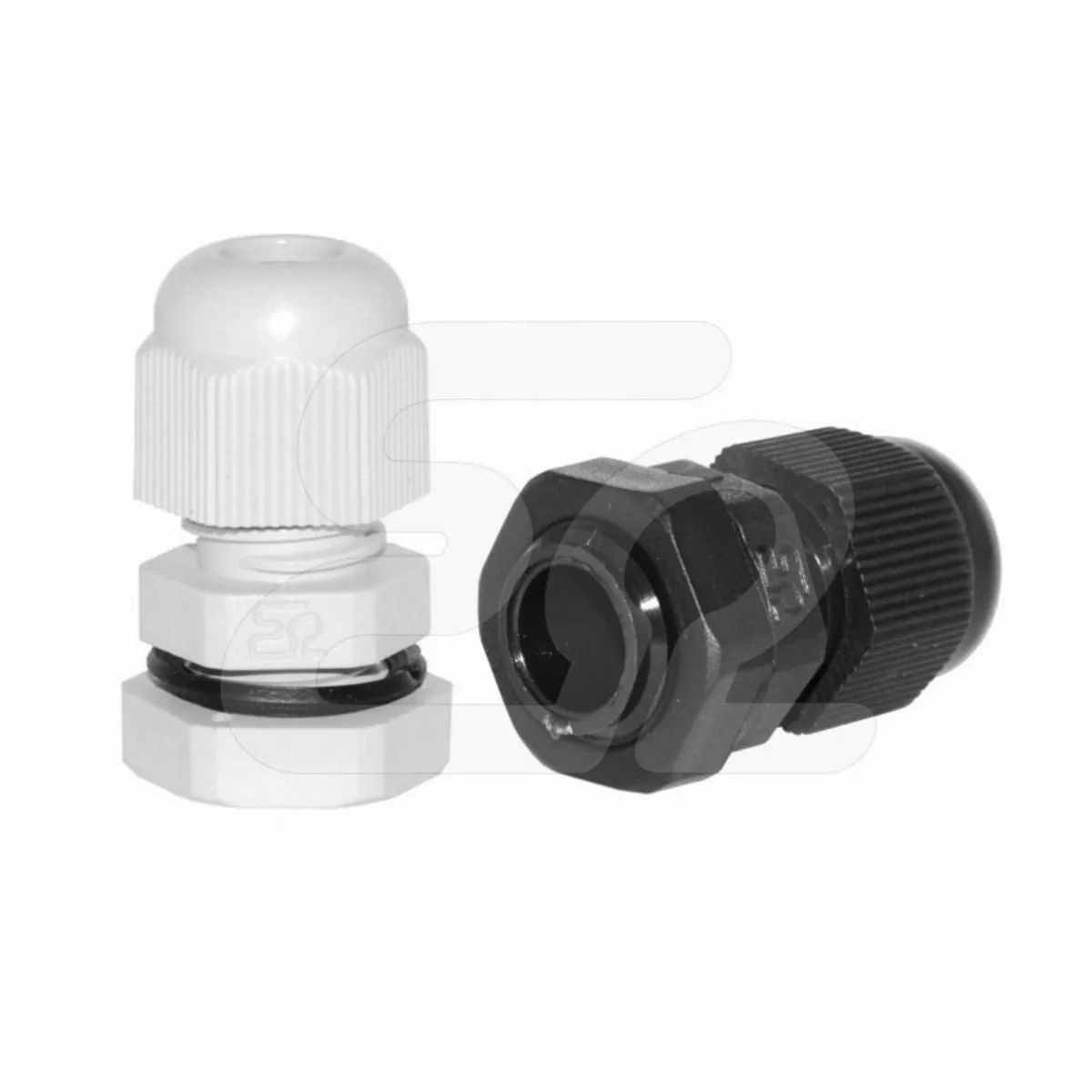

Plastic cable gland DP 7/H PG7 IP54 grey E03DK-01030100101
local index:
RRR429ERGO
Catalog No:
E03DK-01030100101
Price:
0,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Features of DP type cable glands:
- basic construction type of glands
- tightness class sufficient for indoor applications in dry rooms
- gland included with nut
Technical data
-
ThreadPG7
-
Maximum operating temperature [°C]80
-
Level of securityIP54
-
PKWIU22.21.29.0
-
ColorGray
-
MaterialPolyamide
-
Minimum operating temperature [°C]-thirty
Other technical data
-
Thread typePG
-
Thread length8 mm
-
Suitable for cable diameter3.5 ... 6 mm
-
Material qualityPolyamide (PA)
-
Halogen freeNo
-
Degree of protection (IP)IP68
-
ColourJasnoszary
-
With locknutYes
-
Multi seal areaNo
-
With strain reliefNo
-
Separable screw glandYes
-
Explosion-tested versionNo
-
For Ex-Zone dustNone
-
Nominal thread size metric/PG7
-
Wrench width16 mm
-
MaterialPlastic
-
Surface protectionUntreated
-
Glass-fibre reinforcedNo
-
Shock resistantYes
-
Bend radius protection/trumpet flareNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-30 ... 80 °C
-
For Ex-zone gasNone
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 100 pcs. |
| Weight (kg) | 0,055 |
| Width (m) | 0,020 |
| Length (m) | 0,010 |
| Depth (m) | 0,020 |
