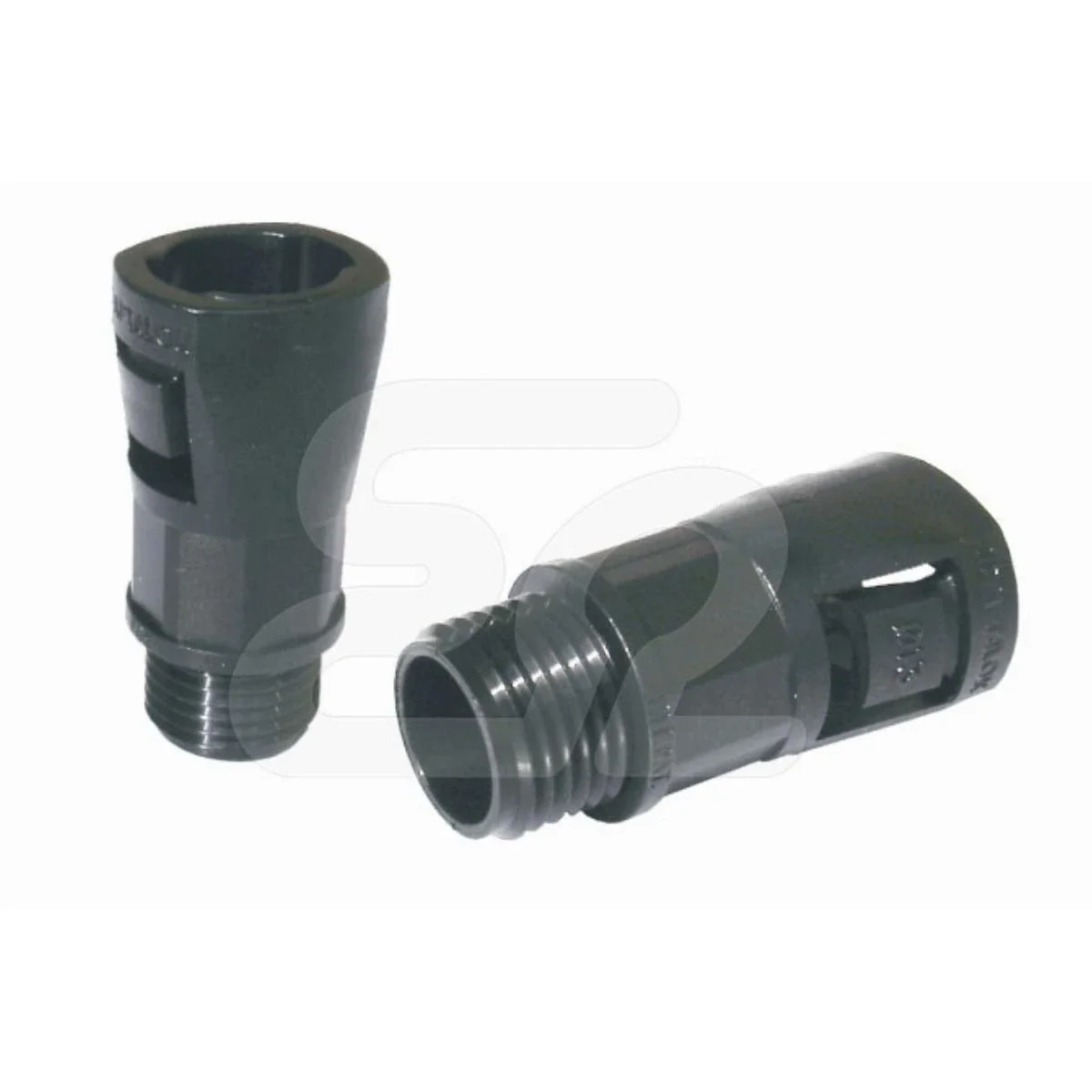

Pipe connector SFD 16M black E03DK-07060100501

local index:
RRR486ERGO
Catalog No:
E03DK-07060100501
Manufacturer: ERGOM
Halogen free: Yes
Thread: M16x1.5
Color: Black
Price:
2,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Couplings for inserting the WTE pipe into the housing,

  • PG and M threads
  • very quick assembly and disassembly of WTE pipes with glands
  • nuts black N...M BK, N...M BK and UUPE, UUPE...M seals for the connector should be ordered separately
  •  grey color on request

Technical data

  • Halogen free
    Yes
  • Color
    Black
  • Level of security
    IP66
  • Thread
    M16x1.5
  • Material
    Polyamide
  • PKWIU
    22.21.29.0

Other technical data

  • Degree of protection (IP)
    IP66
  • Revolving thread
    No
  • Type of connection
    Snap connection
  • Thread length
    11 mm
  • With integrated holder
    No
  • Materiał uszczelki
    Other
  • Colour
    Black
  • Approved in combination with protective conduit UR
    No
  • Model
    Straight
  • Construction type
    External thread
  • Thread connection size
    PG16
  • One-piece
    No
  • Material screw gland
    Polyamide (PA)
  • Max. outer diameter hose
    21.2 mm
  • Approved in combination with protective conduit according to DIN EN 61386-23
    No

Bulk packaging

A kind of package Sztuka
Quantity 10 pcs.
Weight (kg) 0,097
Width (m) 0,150
Length (m) 0,040
Depth (m) 0,100
