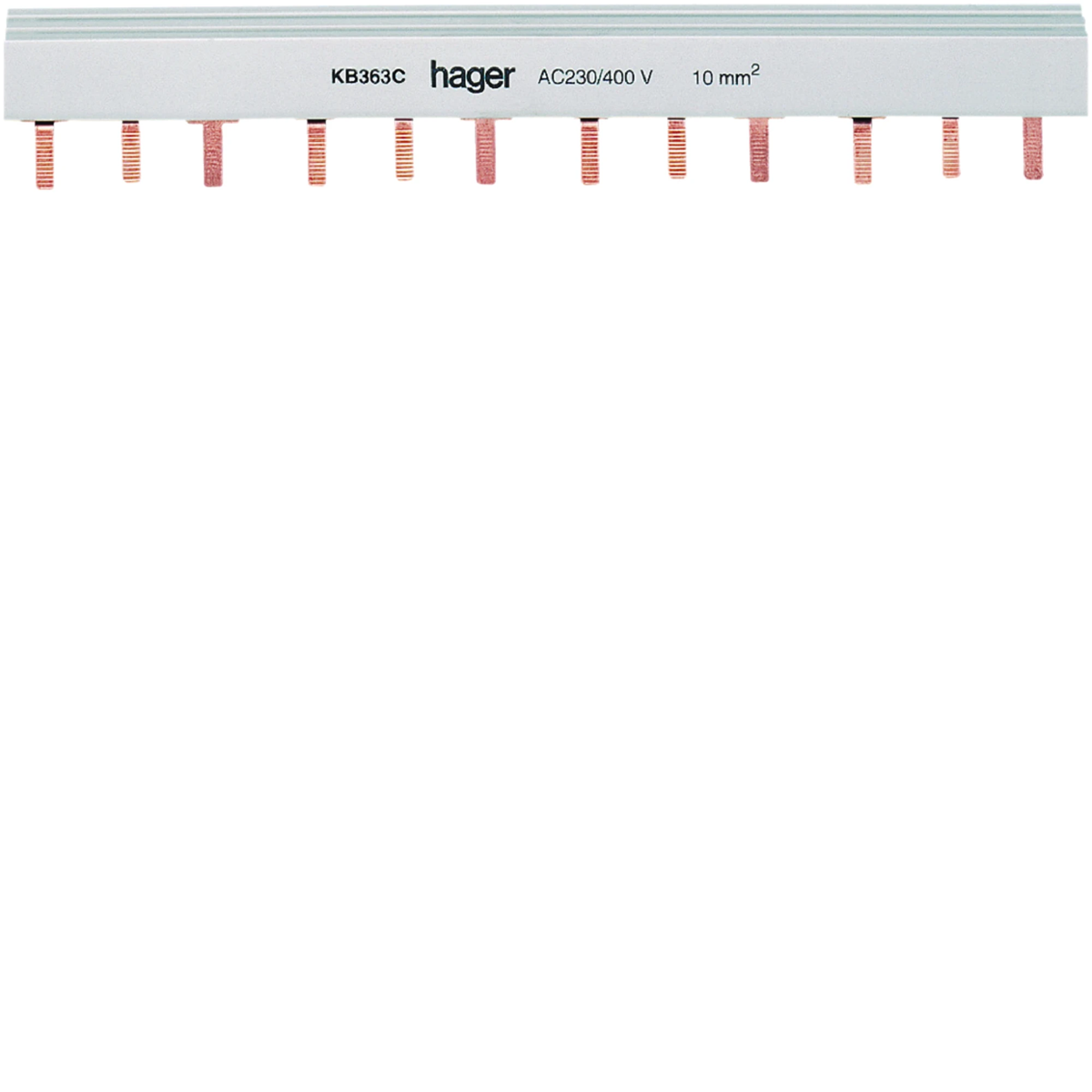

Pin rail 3P 10 mm² 24M KB363C

local index:
RPU068HAGE
Catalog No:
KB363C
EAN code:
3250613720124
Manufacturer: HAGER
Length [mm]: 420
Color: Gray
Number of poles: 3P
Price:
37,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Comb phase rail:

  • pin
  • horizontal
  • 24 modules

Series characteristics:

  • making vertical connections between 4-pole residual current devices (connection on the left side, from the top of the devices)
  • making vertical connections between 3-pole overcurrent circuit breakers (connection on the left or right side, from the bottom of the devices)
  • distance between switchgear rows: 125mm
  • rated current: 63A
  • section: 10mm²

Technical data

  • Length [mm]
    420
  • Number of poles
    3P
  • Connection type
    With a screw
  • Number of modules
    24
  • Connection type
    comb rail
  • PKWIU
    27.33.13.0
  • Color
    Gray
  • Rated current [A]
    63
  • Rated impulse voltage [kV]
    4
  • Maximum operating voltage [V]
    400
  • Conductor cross-section (wire) [mm²]
    10

Other technical data

  • Number of phases
    3
  • Suitable for number of devices
    8
  • Cross section
    10 mm²
  • Rated permanent current Iu
    63 A
  • Insulated
    Yes
  • Max. rated operation voltage Ue
    400 V
  • Suitable for devices with auxiliary switch
    No
  • Number of poles
    3
  • Module width
    17.8 mm
  • Length
    420 mm
  • Type of electric connection
    Pin
  • Rated surge voltage
    4 kV
  • Suitable for devices with N-conductor
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 10 pcs. 2000 pcs.
Weight (kg) 0,188 1,920 407,000
Width (m) 0,105 0,092 0,800
Length (m) 0,055 0,092 1,200
Depth (m) 0,455 1,030 1,200
