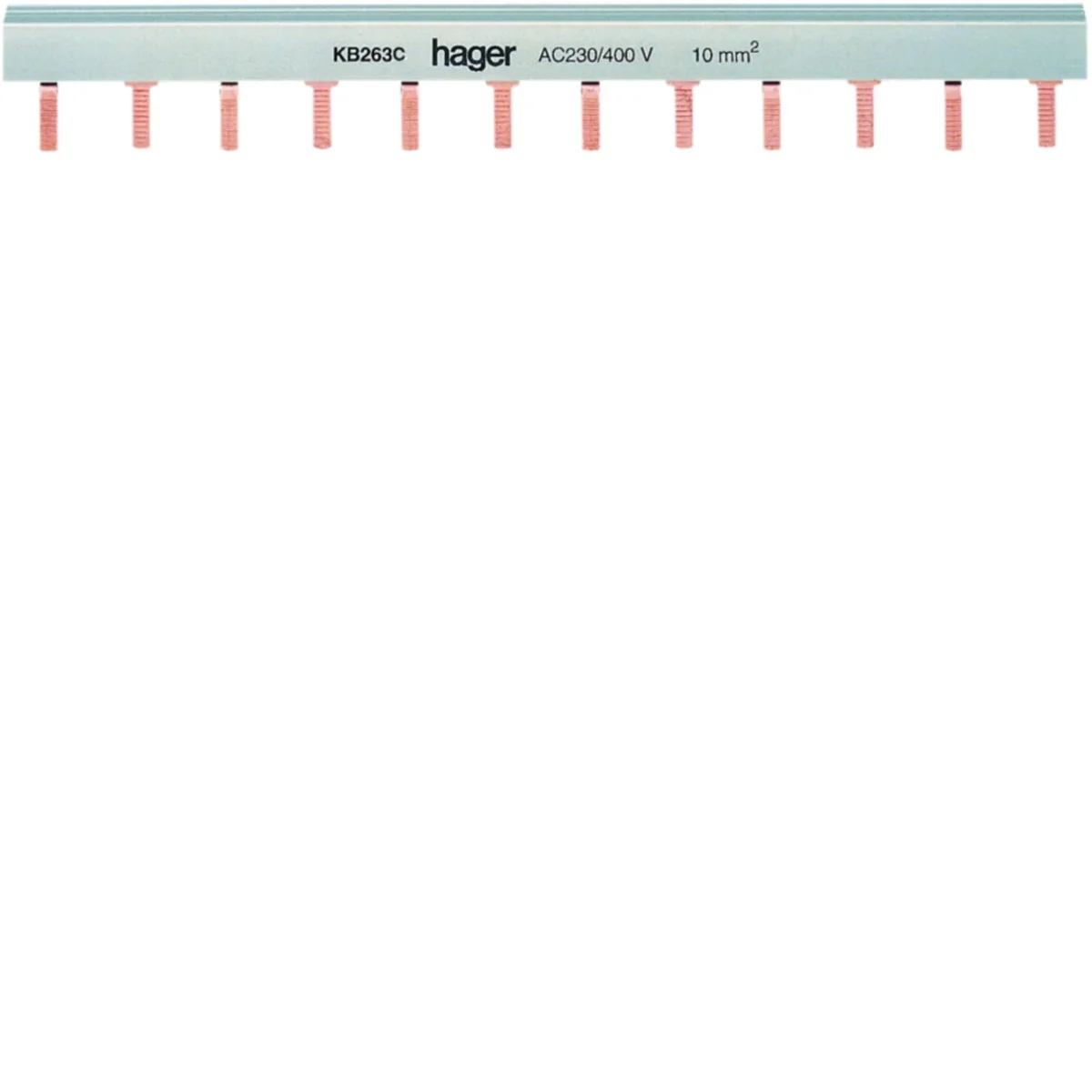

Pin rail 2P 10 mm² 24M KB263C
local index:
RPU067HAGE
Catalog No:
KB263C
EAN code:
3250613720346
Price:
25,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Comb phase rail:
- pin
- horizontal
- 24 modules
Series characteristics:
- making vertical connections between 4-pole residual current devices (connection on the left side, from the top of the devices)
- making vertical connections between 3-pole overcurrent circuit breakers (connection on the left or right side, from the bottom of the devices)
- distance between switchgear rows: 125mm
- rated current: 63A
- section: 10mm²
Technical data
-
Length [mm]420
-
Number of poles2P
-
Connection typeWith a screw
-
Number of modules24
-
Connection typecomb rail
-
PKWIU27.33.13.0
-
ColorGray
-
Rated current [A]63
-
Rated impulse voltage [kV]4
-
Maximum operating voltage [V]400
-
Conductor cross-section (wire) [mm²]10
Other technical data
-
Number of poles2
-
Module width17.8 mm
-
Length420 mm
-
Type of electric connectionPin
-
Rated surge voltage4 kV
-
Suitable for devices with N-conductorYes
-
Suitable for number of devices12
-
Cross section10 mm²
-
Rated permanent current Iu63 A
-
InsulatedYes
-
Max. rated operation voltage Ue400 V
-
Suitable for devices with auxiliary switchNo
Manufacturer details
-
ManufacturerHAGER POLO Sp. z o. o.
-
Address43-100 Tychy Fabryczna 10
-
E-mail
-
Tax identification number6460015532
-
GLN5900009931532
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 2500 pcs. |
| Weight (kg) | 0,140 | 1,435 | 383,750 |
| Width (m) | 0,010 | 0,110 | 0,800 |
| Length (m) | 0,015 | 0,055 | 1,078 |
| Depth (m) | 0,450 | 0,455 | 1,200 |
