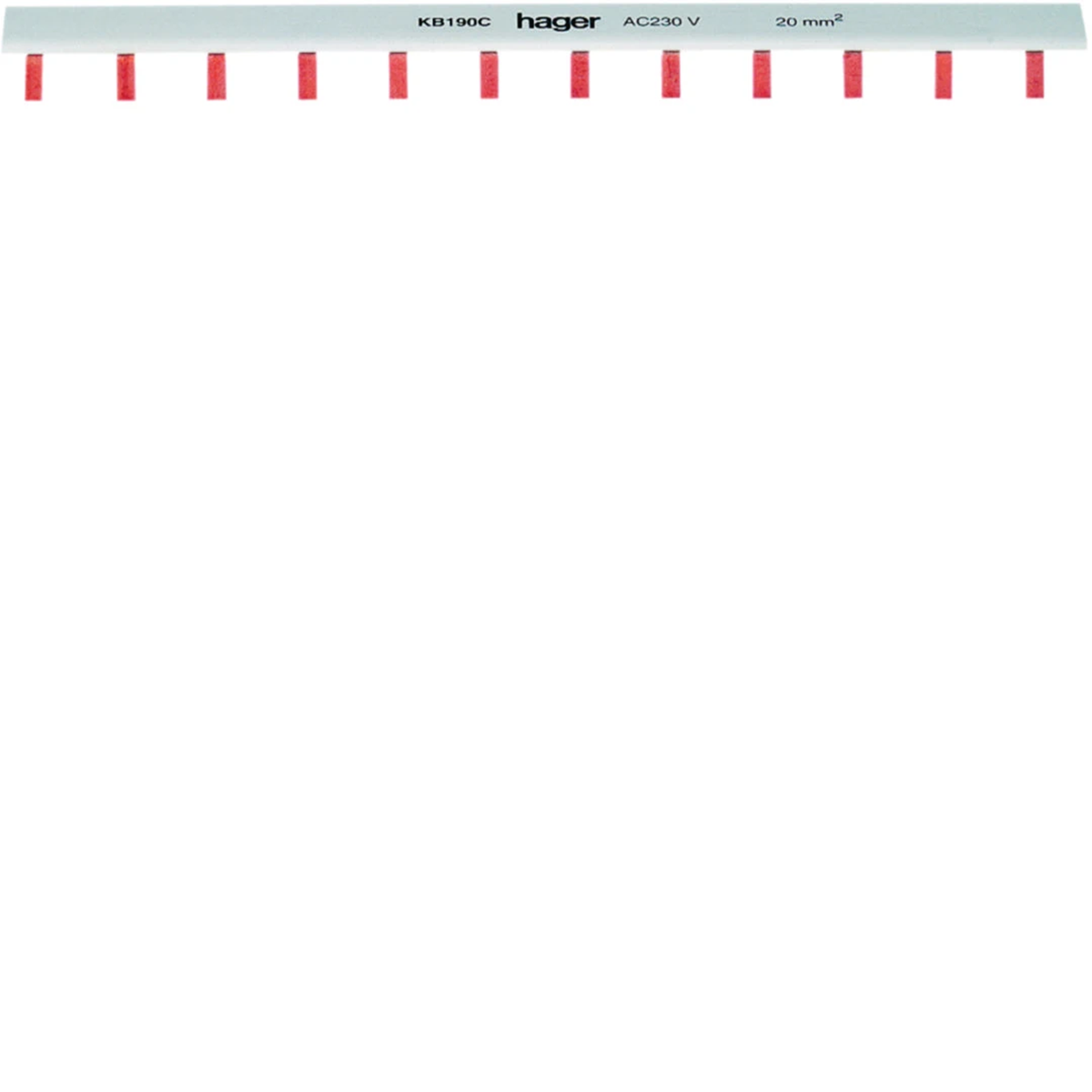

Pin rail 1P 20 mm² 24M KB190C
local index:
RPU065HAGE
Catalog No:
KB190C
EAN code:
3250613720315
Price:
23,14 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Comb phase rail:
- pin
- horizontal
- 24 modules
Series characteristics:
- making vertical connections between 4-pole residual current devices (connection on the left side, from the top of the devices)
- making vertical connections between 3-pole overcurrent circuit breakers (connection on the left or right side, from the bottom of the devices)
- distance between switchgear rows: 125mm
- rated current: 63A
- section: 10mm²
Technical data
-
Length [mm]420
-
Number of poles1P
-
Connection typeWith a screw
-
Number of modules24
-
Connection typecomb rail
-
PKWIU27.33.13.0
-
ColorGray
-
Rated current [A]100
-
Rated impulse voltage [kV]4
-
Maximum operating voltage [V]230
-
Conductor cross-section (wire) [mm²]20
Other technical data
-
Number of phases1
-
Suitable for number of devices24
-
Cross section20 mm²
-
Rated permanent current Iu100 A
-
InsulatedYes
-
Max. rated operation voltage Ue415 V
-
Suitable for devices with auxiliary switchNo
-
Number of poles1
-
Module width17.8 mm
-
Length420 mm
-
Type of electric connectionPin
-
Rated surge voltage4 kV
-
Suitable for devices with N-conductorNo
Manufacturer details
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 200 pcs. | 4800 pcs. |
| Weight (kg) | 0,110 | 1,140 | 23,240 | 582,760 |
| Width (m) | 0,055 | 0,090 | 0,200 | 0,800 |
| Length (m) | 0,015 | 0,060 | 0,216 | 1,014 |
| Depth (m) | 0,420 | 1,070 | 0,370 | 1,200 |
