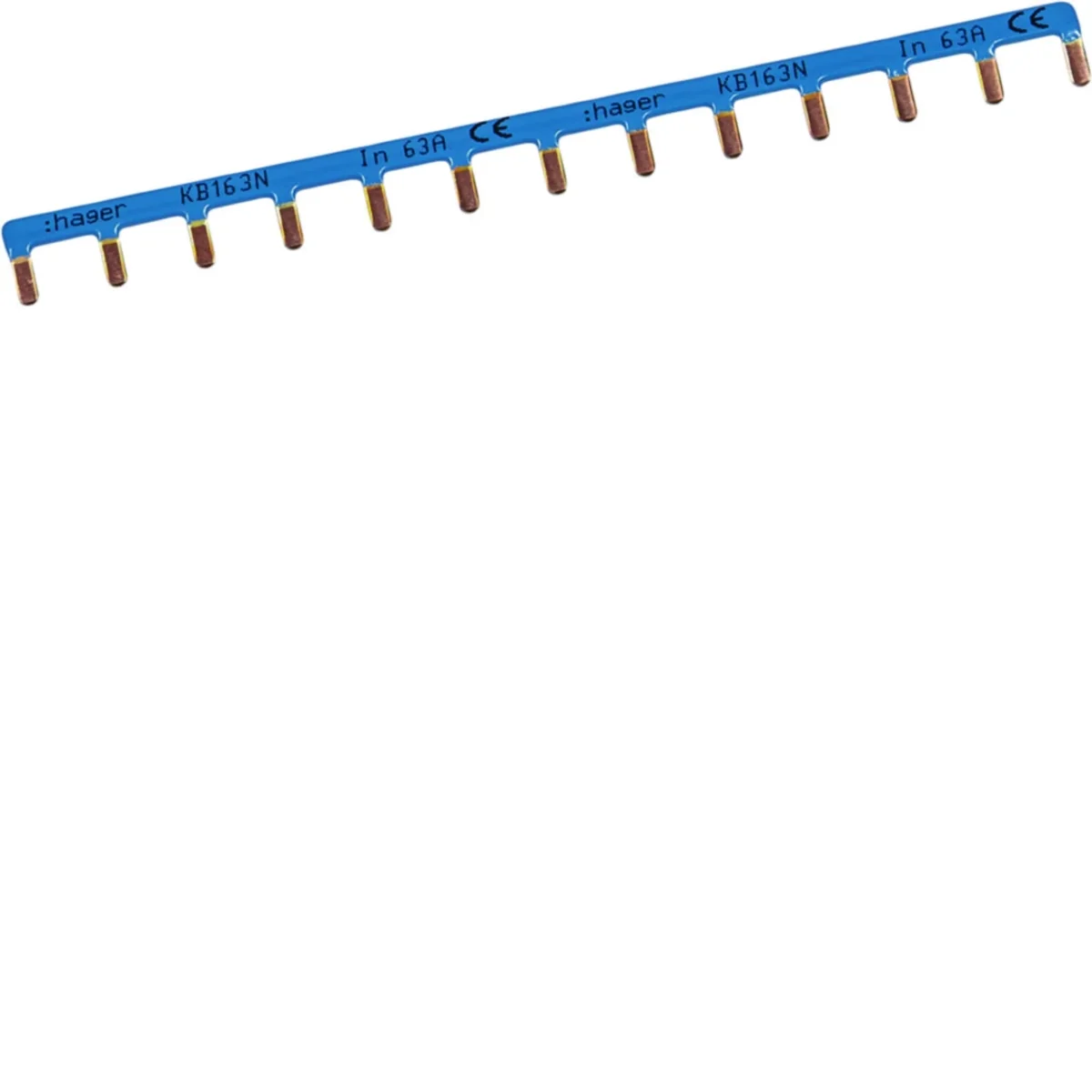

Pin rail 1P 10 mm² 13M blue coating KB163N

local index:
RPU063HAGE
Catalog No:
KB163N
EAN code:
3250613720025
Manufacturer: HAGER
Length [mm]: 228
Color: Blue
Number of poles: 1P
Price:
5,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Comb phase rail:

  • pin
  • horizontal
  • 13 modules

Series characteristics:

  • making vertical connections between 4-pole residual current devices (connection on the left side, from the top of the devices)
  • making vertical connections between 3-pole overcurrent circuit breakers (connection on the left or right side, from the bottom of the devices)
  • distance between switchgear rows: 125mm
  • rated current: 63A
  • section: 10mm²

Technical data

  • Length [mm]
    228
  • Number of poles
    1P
  • Connection type
    With a screw
  • Number of modules
    13
  • Connection type
    comb rail
  • PKWIU
    27.33.13.0
  • Color
    Blue
  • Rated current [A]
    63
  • Rated impulse voltage [kV]
    4
  • Maximum operating voltage [V]
    230
  • Conductor cross-section (wire) [mm²]
    10

Other technical data

  • Number of phases
    1
  • Suitable for number of devices
    13
  • Cross section
    10 mm²
  • Rated permanent current Iu
    63 A
  • Insulated
    Yes
  • Max. rated operation voltage Ue
    415 V
  • Suitable for devices with auxiliary switch
    No
  • Number of poles
    1
  • Module width
    17.8 mm
  • Length
    228 mm
  • Type of electric connection
    Pin
  • Rated surge voltage
    4 kV
  • Suitable for devices with N-conductor
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 50 pcs. 600 pcs. 10800 pcs.
Weight (kg) 0,032 1,720 21,150 403,700
Width (m) 0,002 0,100 0,315 0,800
Length (m) 0,022 0,085 0,255 1,210
Depth (m) 0,219 0,245 0,355 1,200
