Phase rail 3 pole. 16qmm 57mod KDN380B

local index:
RPU061HAGE
Catalog No:
KDN380B
EAN code:
3250613741044
Manufacturer: HAGER
Number of modules: 57
Number of poles: 3
Rated current [A]: 80
Price:
56,86 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

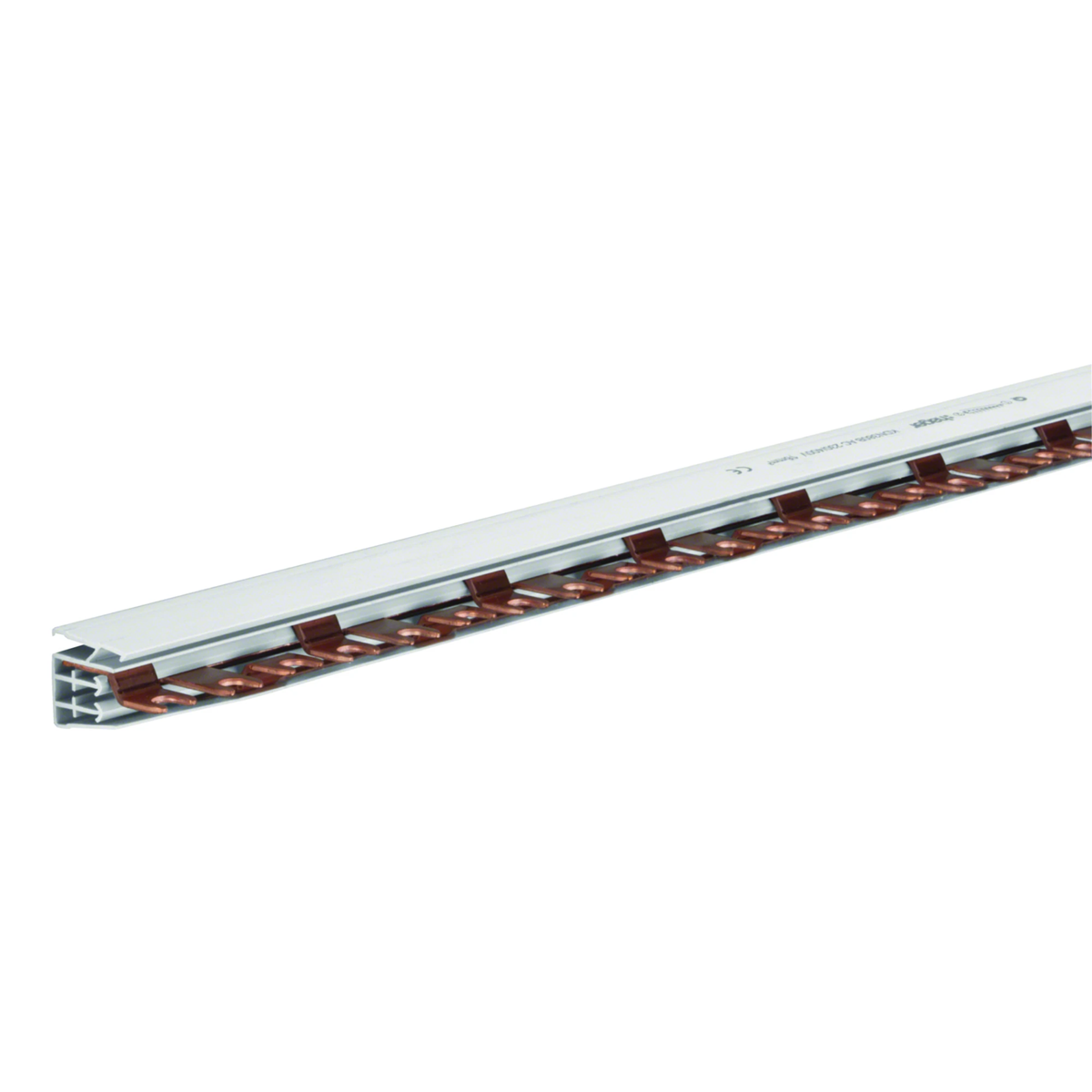

Fork comb phase busbar for 19 3-pole MCBs

Technical data

  • Number of modules
    57
  • Rated current [A]
    80
  • PKWIU
    27.33.13.0
  • Number of poles
    3
  • Number of modules
    57

Other technical data

  • Number of phases
    3
  • Suitable for number of devices
    19
  • Cross section
    16 mm²
  • Rated permanent current Iu
    80 A
  • Insulated
    Yes
  • Max. rated operation voltage Ue
    400 V
  • Suitable for devices with auxiliary switch
    No
  • Number of poles
    3
  • Module width
    17.8 mm
  • Length
    1000 mm
  • Type of electric connection
    Fork
  • Rated surge voltage
    4.5 kV
  • Suitable for devices with N-conductor
    No

Manufacturer details

  • Manufacturer
    HAGER POLO Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532

Bulk packaging

A kind of package Karton Paleta
Quantity 10 pcs. 800 pcs.
Weight (kg) 7,720 717,600
Width (m) 0,115 0,840
Length (m) 0,060 1,200
Depth (m) 1,075 1,240
