el12
Switchboards and enclosures
Elements of switchgears and stations
Copper rails
el12
sale
El12 and HAGER

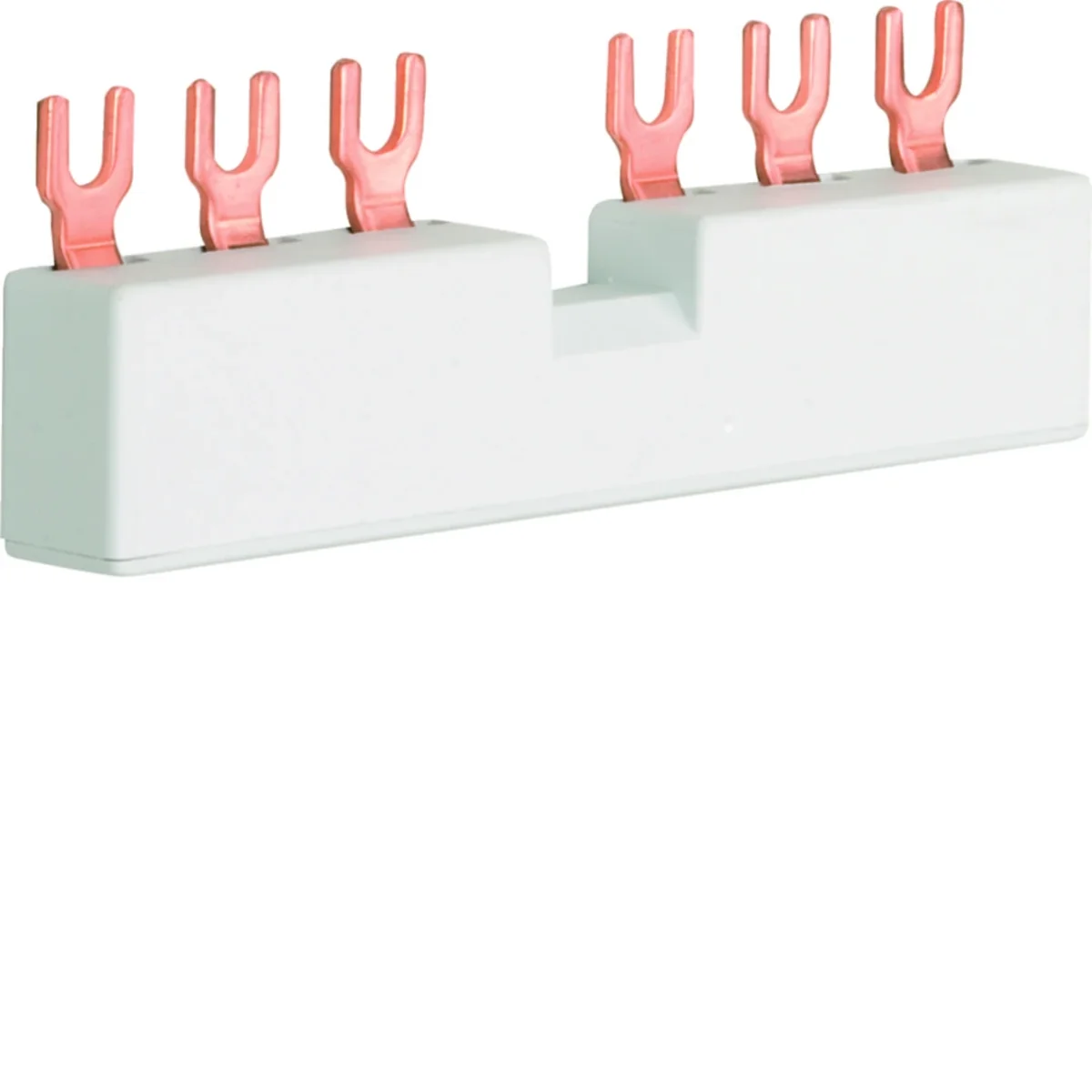

Phase rail 3 pole 10mm2 6 mod KD302M
local index:
RPU090HAGE
Catalog No:
KD302M
EAN code:
3250613740429
Click on the photo to enlarge
Manufacturer:
HAGER
Length [mm]:
88
Color:
Gray
Number of poles:
3P
See full description
Price:
5,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Phase rail 3 pole 10mm2 6 mod
Technical data
Length [mm]
88
Number of poles
3P
Level of security
IP20
Operating temperature range [°C]
from -25 to 55
Number of modules
5
Connection type
comb rail
Conductor cross-section (wire) [mm²]
10
Color
Gray
Rated current [A]
63
Connection type
With a screw
Rated switching voltage [V]
230/400
Maximum operating voltage [V]
400
storage temperature [°C]
from -25 to 80
PKWIU
27.33.13.0
Other technical data
Number of phases
3
Suitable for number of devices
2
Cross section
10 mm²
Rated permanent current Iu
63 A
Insulated
Yes
Max. rated operation voltage Ue
400 V
Suitable for devices with auxiliary switch
Yes
Number of poles
3
Module width
17.8 mm
Length
88 mm
Type of electric connection
Fork
Rated surge voltage
4.5 kV
Suitable for devices with N-conductor
No
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
10 pcs.
10000 pcs.
Weight (kg)
0,038
0,415
438,000
Width (m)
0,070
0,080
0,800
Length (m)
0,045
0,050
1,050
Depth (m)
0,102
0,120
1,200
