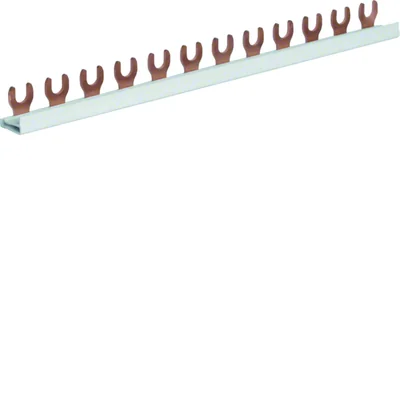

Phase rail 1 pole. 10qmm 12mod KDN163A
local index:
RPU003HAGE
Catalog No:
KDN163A
EAN code:
3250613740900
Price:
5,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
2-pole comb phase busbar for 6 MCBs 2-pole, 1+N or for 6 2-pole RCDs or for 6 MCBs with 2-pole MCBs
Technical data
-
Number of modules12
-
Rated current [A]63
-
PKWIU27.33.13.0
-
Number of poles1
-
Number of modules12
Other technical data
-
Number of phases1
-
Suitable for number of devices12
-
Cross section10 mm²
-
Rated permanent current Iu63 A
-
InsulatedYes
-
Max. rated operation voltage Ue415 V
-
Suitable for devices with auxiliary switchNo
-
Number of poles1
-
Module width17.8 mm
-
Length210 mm
-
Type of electric connectionFork
-
Rated surge voltage4.5 kV
-
Suitable for devices with N-conductorNo
Manufacturer details
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 100 pcs. | 11000 pcs. |
| Weight (kg) | 0,051 | 5,200 | 595,000 |
| Width (m) | 0,018 | 0,165 | 0,800 |
| Length (m) | 0,018 | 0,140 | 1,050 |
| Depth (m) | 0,130 | 0,230 | 1,200 |
