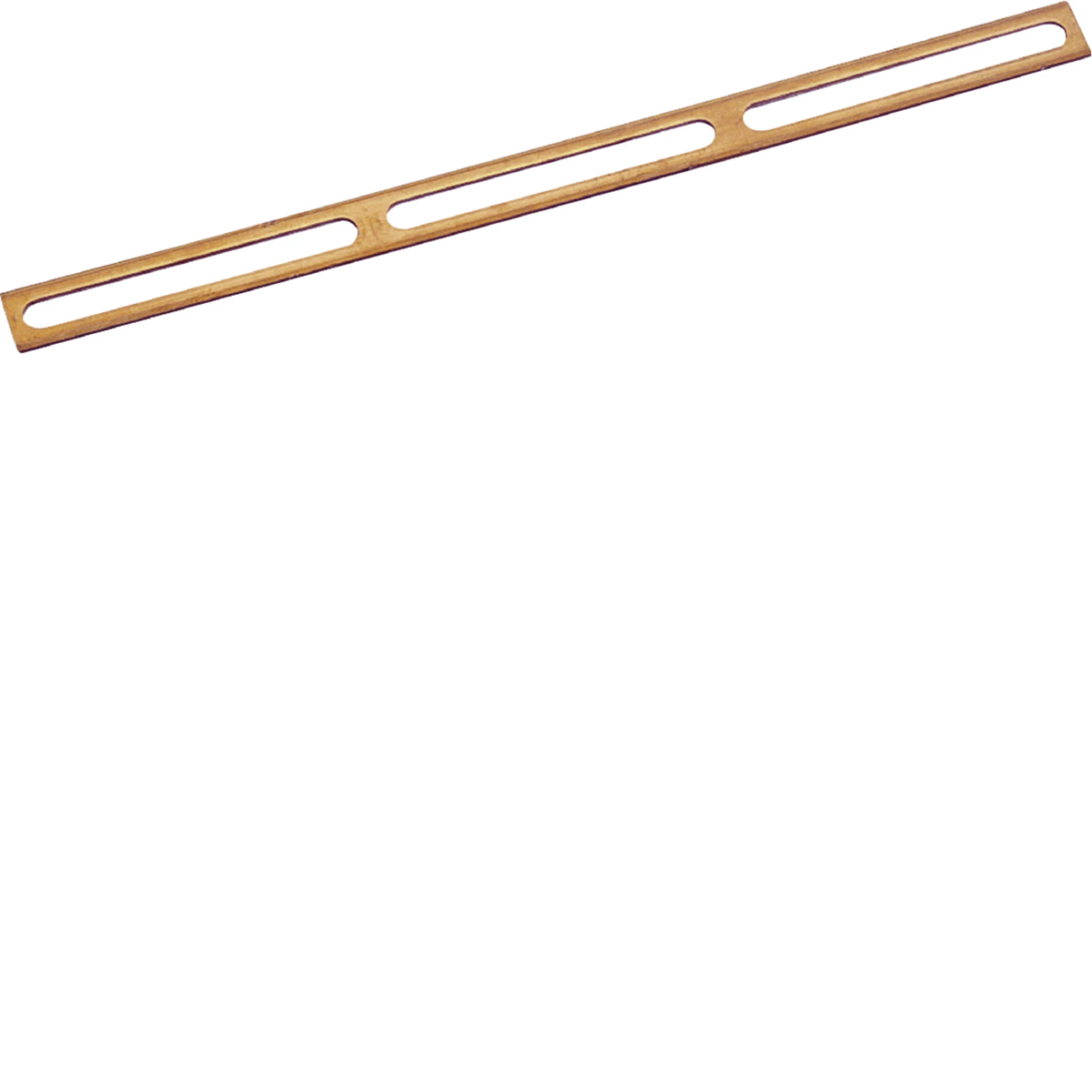

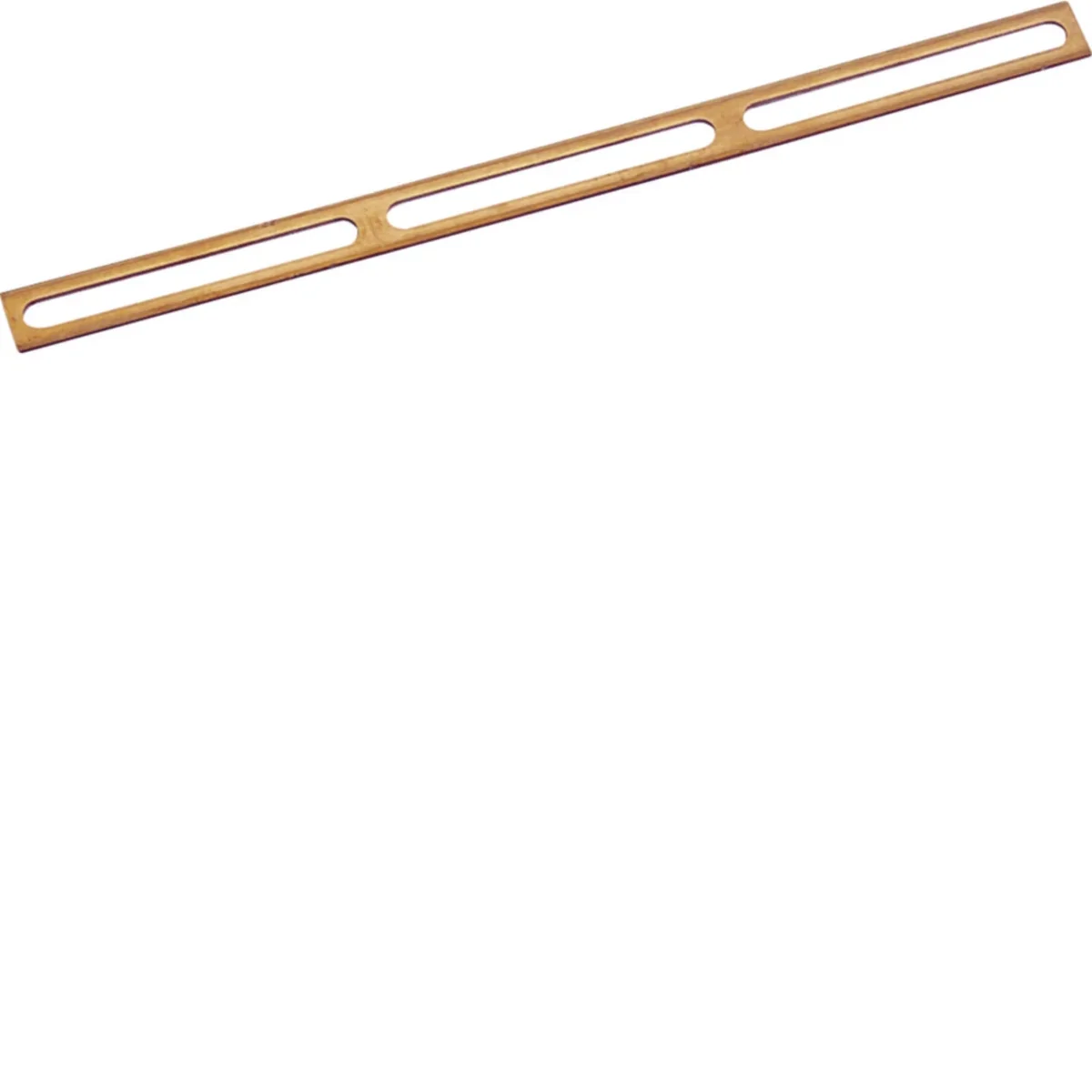

Phase rail 1 pole 10mm2 191mm KD199D

local index:
RPU089HAGE
Catalog No:
KD199D
EAN code:
3250613740344
Manufacturer: HAGER
Length [mm]: 191
Number of poles: 1P
Material: Copper
Price:
3,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Phase rail 1 pole 10mm2 191mm

Technical data

  • Length [mm]
    191
  • Material
    Copper
  • power loss [W]
    1.6
  • Fuse link size
    DII
  • Rated switching voltage [V]
    400/440
  • Connection type
    Phase bars with quick connection
  • Conductor cross-section (wire) [mm²]
    10
  • PKWIU
    27.33.13.0
  • Number of poles
    1P
  • Rated current [A]
    80
  • Width [mm]
    6.3
  • Height [mm]
    1.6
  • Number of modules
    11
  • Rated surge voltage [V]
    400
  • Coverage
    Tin plated

Other technical data

  • Number of phases
    1
  • Suitable for number of devices
    5
  • Length
    191 mm
  • Type of electric connection
    Other
  • Rated surge voltage
    0.4 kV
  • Suitable for devices with auxiliary switch
    No
  • Number of poles
    1
  • Cross section
    10 mm²
  • Rated permanent current Iu
    80 A
  • Insulated
    No
  • Max. rated operation voltage Ue
    440 V

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 100 pcs. 29000 pcs.
Weight (kg) 0,018 0,190 2,200 638,000
Width (m) 0,006 0,045 0,175 0,800
Length (m) 0,002 0,005 0,175 1,200
Depth (m) 0,191 0,190 0,245 1,200
