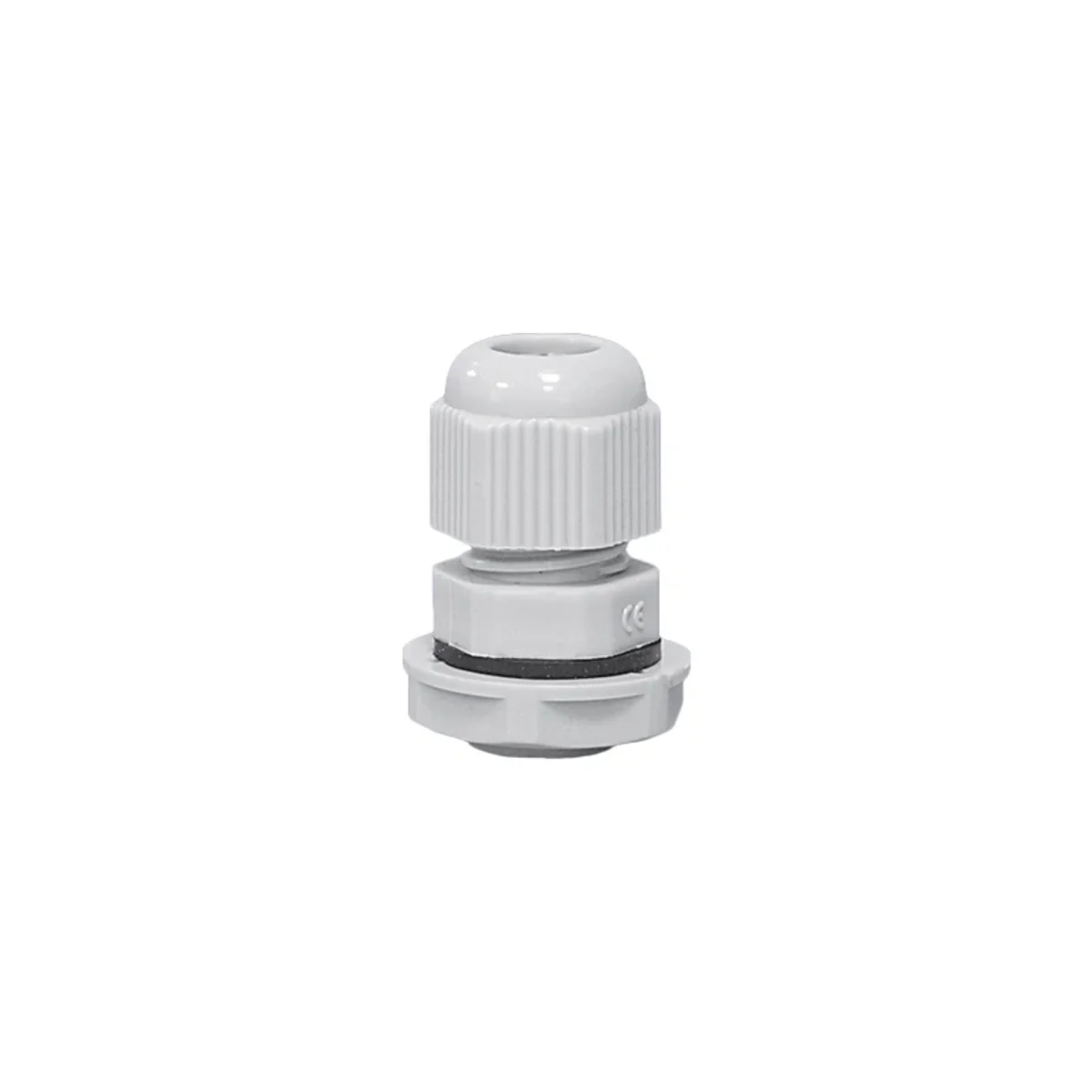

Pg-7 stuffing box 34.7

local index:
RRR024ELOP
Catalog No:
34.7
EAN code:
5905548282817
For cable size [mm]: 3.5-6
Dimension B1 [mm]: 6
Dimension D1 [mm]: 7
Price:
0,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

PG glands designed to seal cable passages through enclosures of electrical devices. Made of polyamide 6.6, a material resistant to weather conditions - very durable, self-extinguishing, free of halogens and phosphorus. They do not contain silicone additives. The special design of the gland prevents the cable from twisting inside and ensures high breaking strength. Easy to assemble. They allow to achieve the degree of protection IP 68 (tightness class 10 bar according to EN60529). A wide range of sizes allows the fastening of cables with a diameter of 3mm to 44mm. Operating temperature: -40 degrees C to +85 degrees C (short-term up to +120 degrees C). Gray (RAL 7035). Supplied complete with gasket and nut.

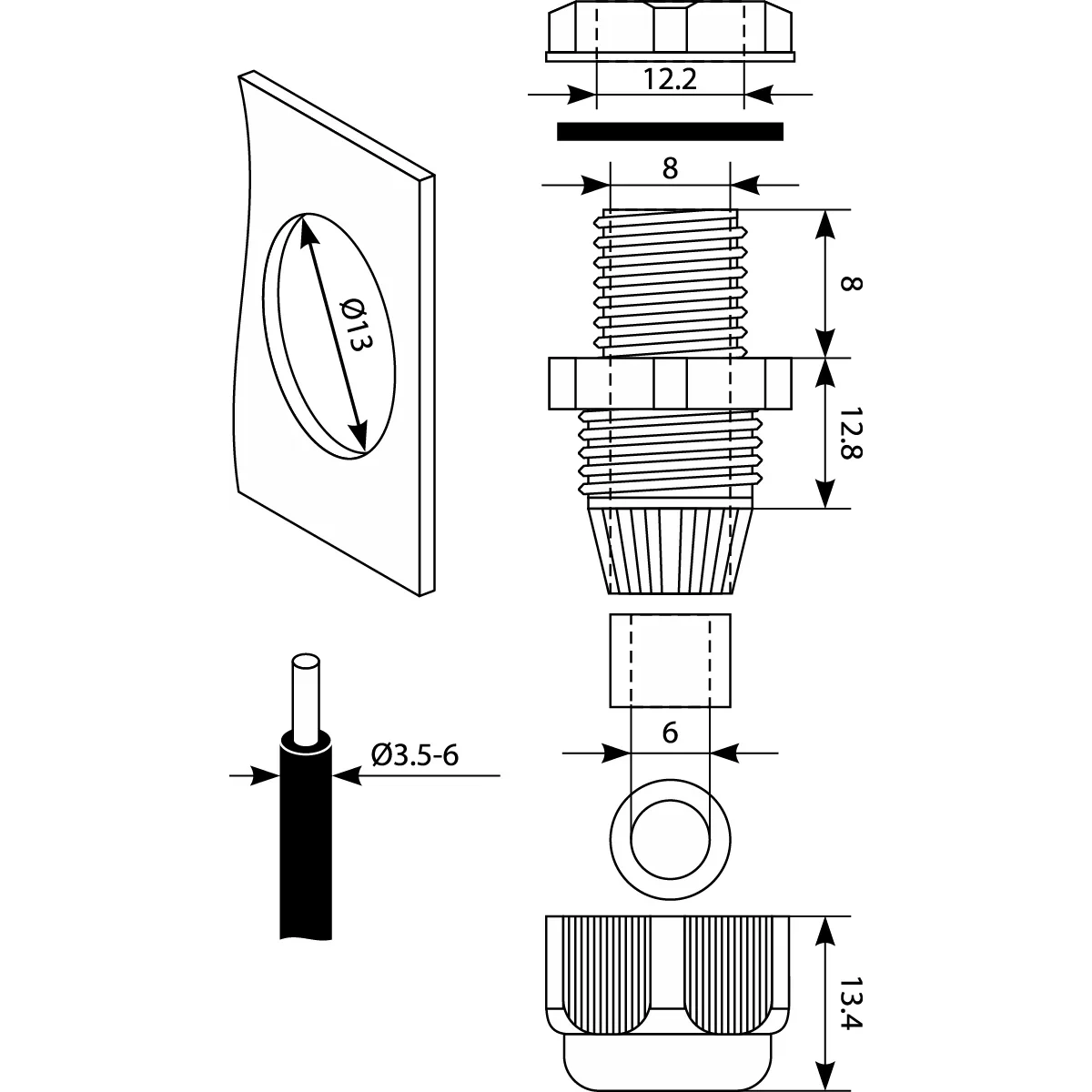

Technical data

  • For cable size [mm]
    3.5-6
  • Dimension D1 [mm]
    7
  • Dimension L1 [mm]
    8
  • Dimension L3 [mm]
    13.3
  • Dimension B1 [mm]
    6
  • Dimension D2 [mm]
    8
  • Dimension L2
    12.8
  • PKWIU
    27.12.40.0

Other technical data

  • Thread type
    PG
  • Nominal thread size inch/gas pipe thread
    Other
  • Thread length
    8 mm
  • Hexagon angular dimension
    16 mm
  • Material
    Plastic
  • Surface protection
    Untreated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -40 ... 85 °C
  • For Ex-zone gas
    None
  • Nominal thread size metric/PG
    7
  • Pitch thread
    1.27 mm
  • Wrench width
    18 mm
  • Suitable for cable diameter
    3.5 ... 6 mm
  • Material quality
    Polyamide (PA)
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP68
  • RAL-number
    7035
  • With locknut
    Yes
  • Multi seal area
    No
  • With strain relief
    No
  • Separable screw gland
    Yes
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
