PG-16 cable gland for cable dimensions (10-14mm) PG-16

local index:
RRR053BORP
Catalog No:
PG-16
EAN code:
8595055701535
Manufacturer: TRYTYT
Color: Gray
Maximum operating temperature [°C]: 85
Material: Polyamide
Price:
0,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

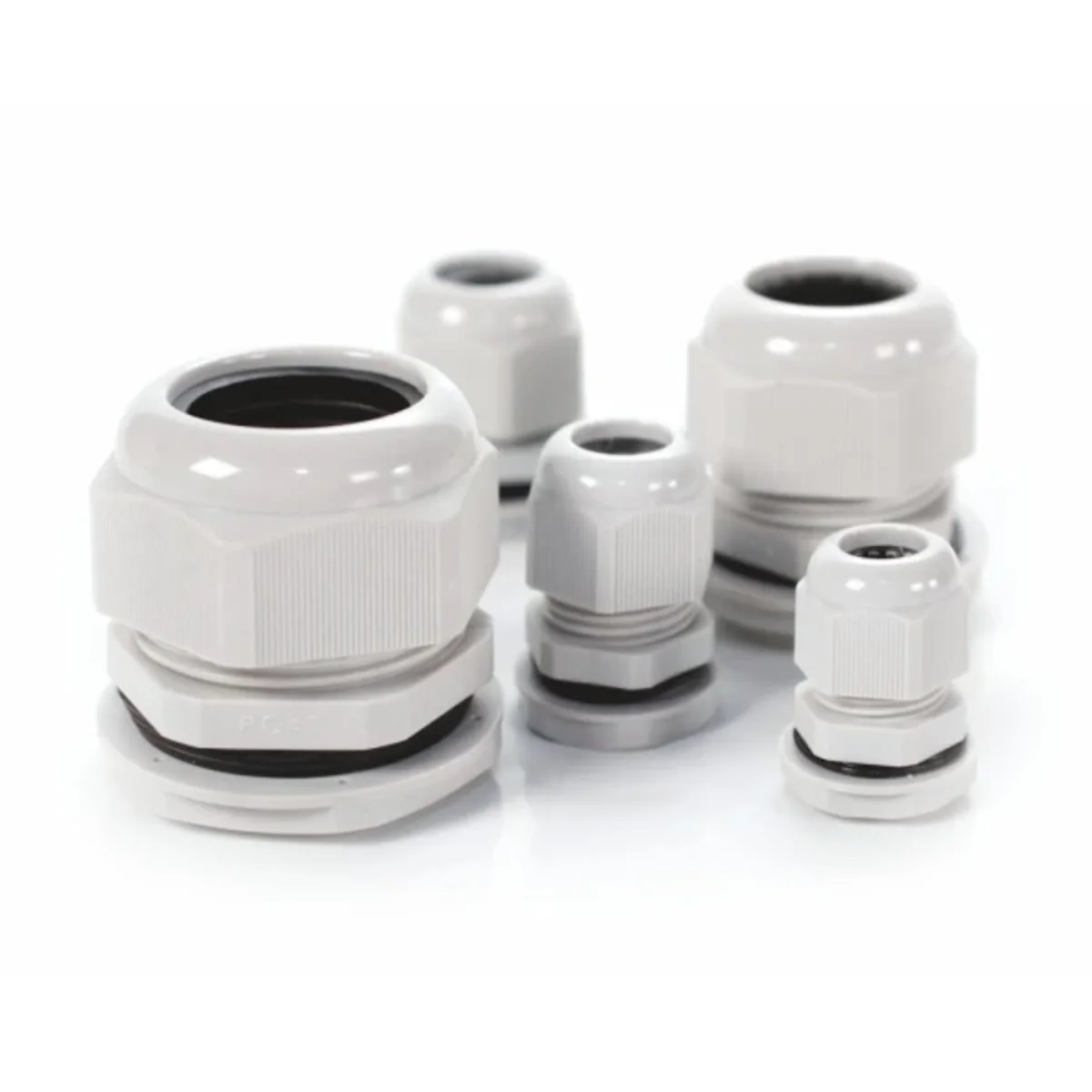

PG cable glands designed to seal cable passages through electrical equipment enclosures.

Made of polyamide 6.6 - a material resistant to weather conditions, at the same time very durable, self-extinguishing, free from halogens and phosphorus. PG cable glands do not contain silicone additives.

The special design of the gland prevents twisting of the wires inside the cable. Easy to assemble.

They allow to achieve the IP 68 degree of protection (which was confirmed by a certificate from EZU). The offered series of types enables mounting of cables with a diameter of 3.5 mm to 44 mm.

Technical data

  • Color
    Gray
  • Material
    Polyamide
  • Cable dimensions [mm]
    10-14
  • Minimum operating temperature [°C]
    -40
  • PKWIU
    22.21.29.0
  • Maximum operating temperature [°C]
    85
  • Handle
    PG
  • Cable diameter range [mm]
    10-14
  • Accurate color
    light gray
