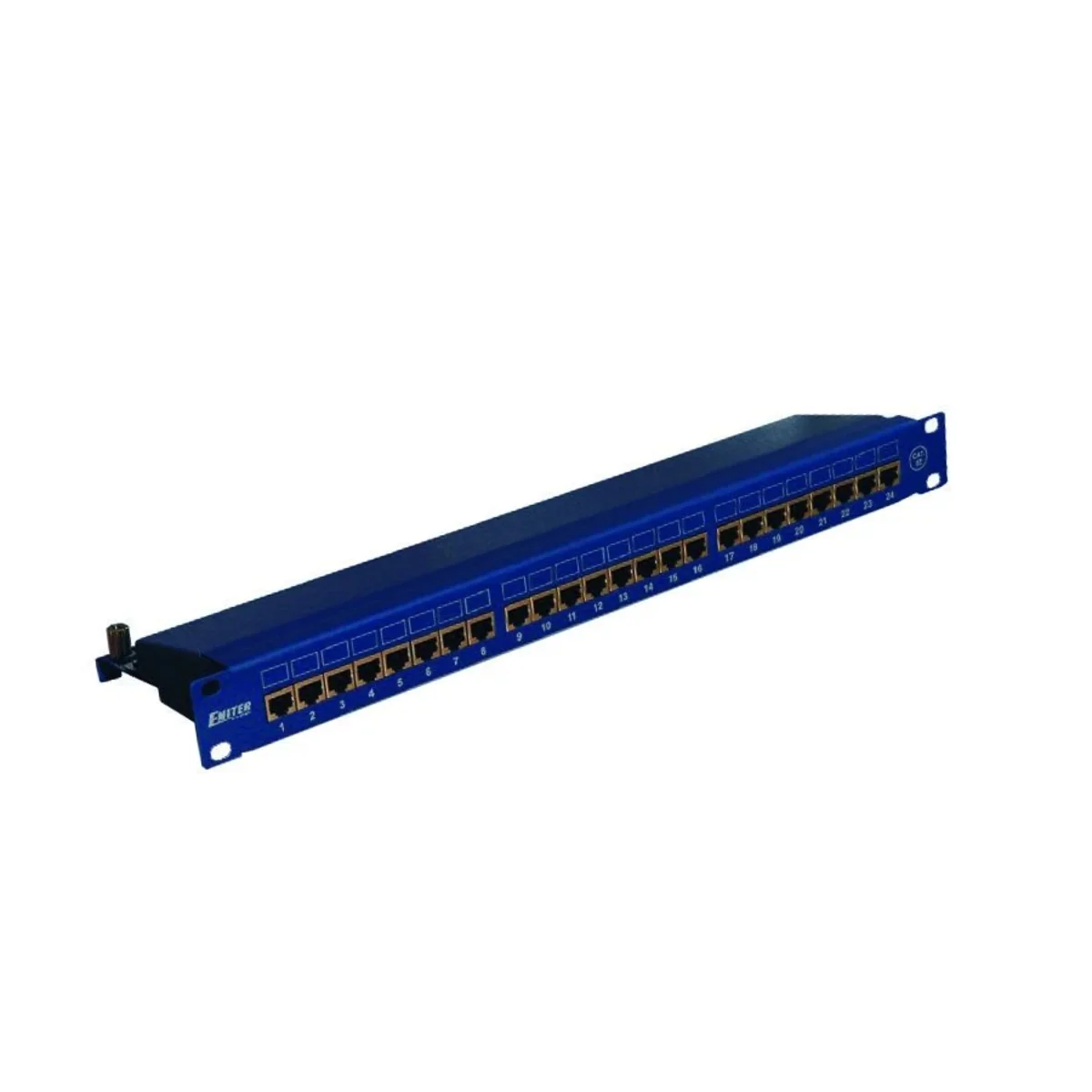

Panel 19", 24 x RJ45 STP cat. 5e (1U) blue DCN/PPFA674BKS248C5E

local index:
RRR047EMSO
Catalog No:
DCN/PPFA674BKS248C5E
EAN code:
5906764107519
Manufacturer: EMITER
Depth [mm]: 145
Color: Blue
Width [mm]: 480
Price:
85,84 €
gross / pcs.
(including VAT 23%)
44,02 € gross/kg.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

EmiterNet cat.5e patch panels are based on 8-port PCB modules with color marking (568A/B). Available in 24 port version with front port markers. Port labeling makes cabling administration easier. The set includes a set of mounting screws, cable ties and installation instructions. The panel has an integrated mounting bracket that facilitates cable management and screen connection. Description field integrated with the panel. Standard 19", height 1U - 24 port panel.

Mechanical:

  • color - blue
  • dimensions (width x height x depth): 480x44x145mm
  • weight - 1950g

Socket:

  • Connector type IDC -LSA
  • material: PC housing, UL 94V-0, 360o shield, steel housing
  • IDC contact: phosphor bronze, 100 micron nickel plating, outer coating: 200 micron solder
  • Contacts in the RJ45 socket - phosphor bronze pins covered with 100 micron nickel coating, external coating: 50 micron gold

Mechanical parameters:

  • RJ45 socket - 750 mating cycles
  • IDC connector - 200 mating cycles
  • Cable size 24 to 26 AWG
  • Operating temperature: -10'C to +68'C
  • Humidity 10 to 90%
  • Electrical parameters:
  • Maximum current value 1.5 A< /li>
  • Maximum voltage 150 V
  • Maximum contact resistance 20 MΩ
  • Minimum insulation resistance 500 MΩ

Technical data

  • Depth [mm]
    145
  • Width [mm]
    480
  • Height [mm]
    44
  • Accurate color
    Blue
  • Color
    Blue
  • Weight [g]
    1950
  • Height [U]
    1

Other technical data

  • Number of buses/couplings
    24
  • Type of connector
    RJ45 8(8)
  • Category
    5E
  • Number of height units
    1
  • Mounting method
    482.6 mm (19 inch) mounting
  • Width
    480 mm
  • Suitable for number of connectors
    24
  • Screened
    Yes
  • Connection type
    LSA
  • Colour
    Blue
  • Height
    44 mm
  • Depth
    145 mm
