P 17 Tempra power sets with disconnect switch 056614

local index:

RIN003LEGR

Catalog number:

056614

EAN code:

3245060566142

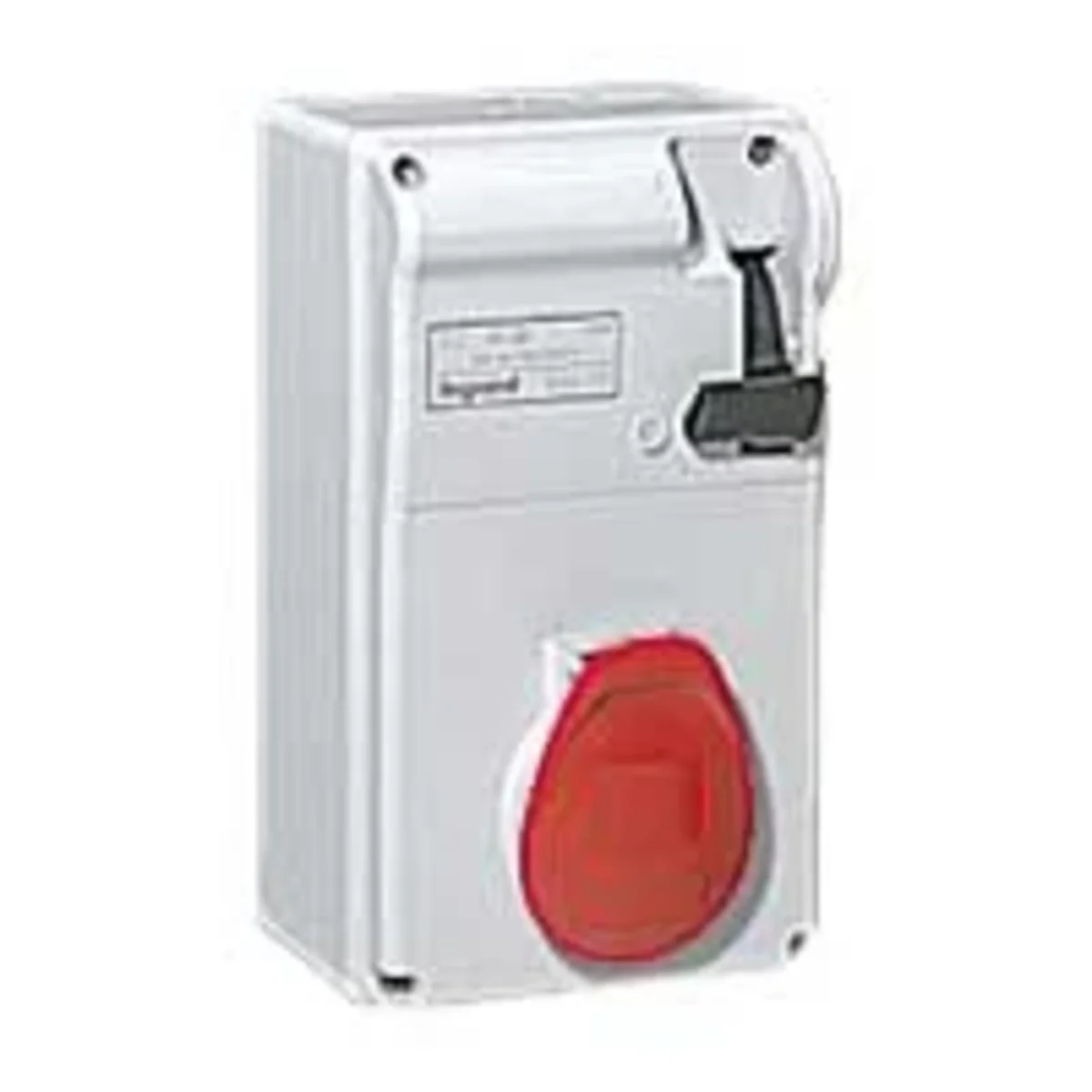

P 17 Tempra power sets with disconnect switch

Click on the photo to enlarge

Manufacturer: LEGRAND

Color: Gray

See full description

Price:

1 069,55 zł

gross / pcs.

(including VAT 23%)

up to 2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Width x height: 125 x 220 mm
IK 08 in accordance with IEC 62262
IP 44 in accordance with IEC 60529 and EN 60529
In accordance with IEC 60439-1
Supplied without cable gland
Heat resistance: 650 °C
Number of poles: 3 + Z +N
380-415 V~ - 50/60 Hz

Technical data

Color

Gray

PKWIU

27.33.13.0

Other technical data

CEE socket outlet 16 A

None
CEE socket outlet 63 A

None
Number of socket outlets with protective contact CEE 7/3 (type F)

1
Earth leakage switch

None
Housing material

Plastic
Diameter cable entry

M32
Degree of protection (IP)

IP44
Colour

Grey
Width

125 mm

CEE socket outlet 32 A

Other
CEE socket outlet 125 A

None
Protection

None
Number of miniature circuit breakers (MCB)

0
Power supply/connection possibility

Other
Handling

Wall mounting
Military model

No
Height

220 mm
Depth

139 mm

Manufacturer details

Manufacturer

Legrand Polska Sp. z o.o.
Address

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Bulk packaging

A kind of package	Karton	Paleta
Quantity	1 pcs.	74 pcs.
Weight (kg)	1,159	85,766
Volume (m3)	0,005	0,516
Width (m)	0,133	1,200
Length (m)	0,145	0,430
Depth (m)	0,240	1,000
