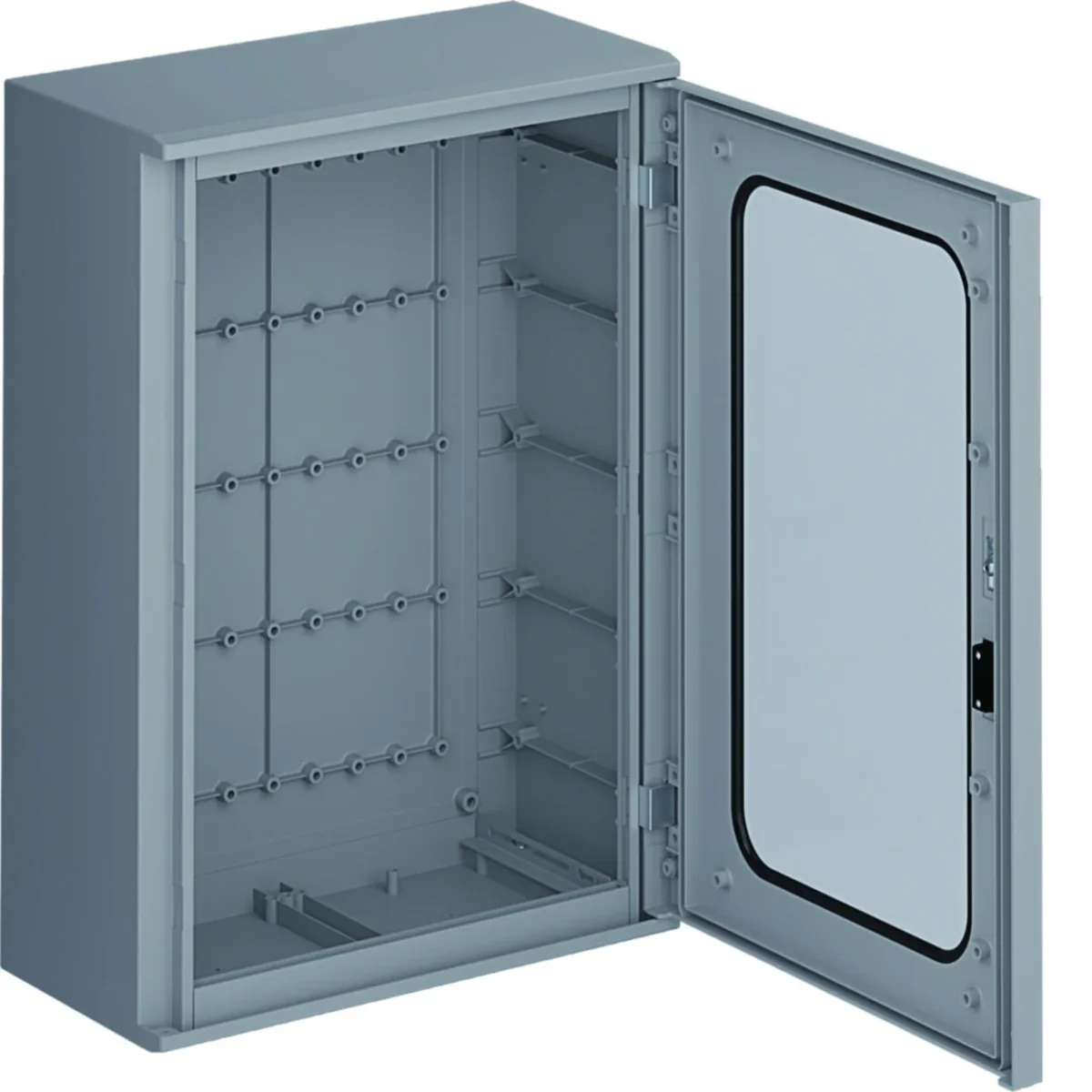

ORION+ Wall-mounted polyester enclosure with transparent door 850x600x300 FL501B

Wall-mounted BOX-structure to be equipped with mounting plates or internal distribution system, transparent door, orion+ series.

• enclosures surface-mounted and standing IP65/IK10,
• for indoor and outdoor (roofed) applications,
• insulation class II,
• gray color,
• made of polyester reinforced with glass fiber th. 3.5 mm walls.

Internal installation system:

• housing for devices with a rated current of max. 630 A,
• rated voltage Un - 400 V, 50/60 Hz,
• rated insulation voltage Ui - 690 V,
• impulse voltage Uimp - 8 kV ,
• short-circuit current max. Icc - 35 kA.

Series characteristics:

orion+ enclosures are designed to work in harsh conditions. Thanks to the body made of glass fiber reinforced polyester, orion+ can be used even in harsh corrosive chemical environments. Internal equipment can be implemented flexibly by mounting mounting plates or DIN rails (in two versions), thus offering the appropriate equipment system - the classic function of electricity distribution and applications for control and automation of industrial processes.
