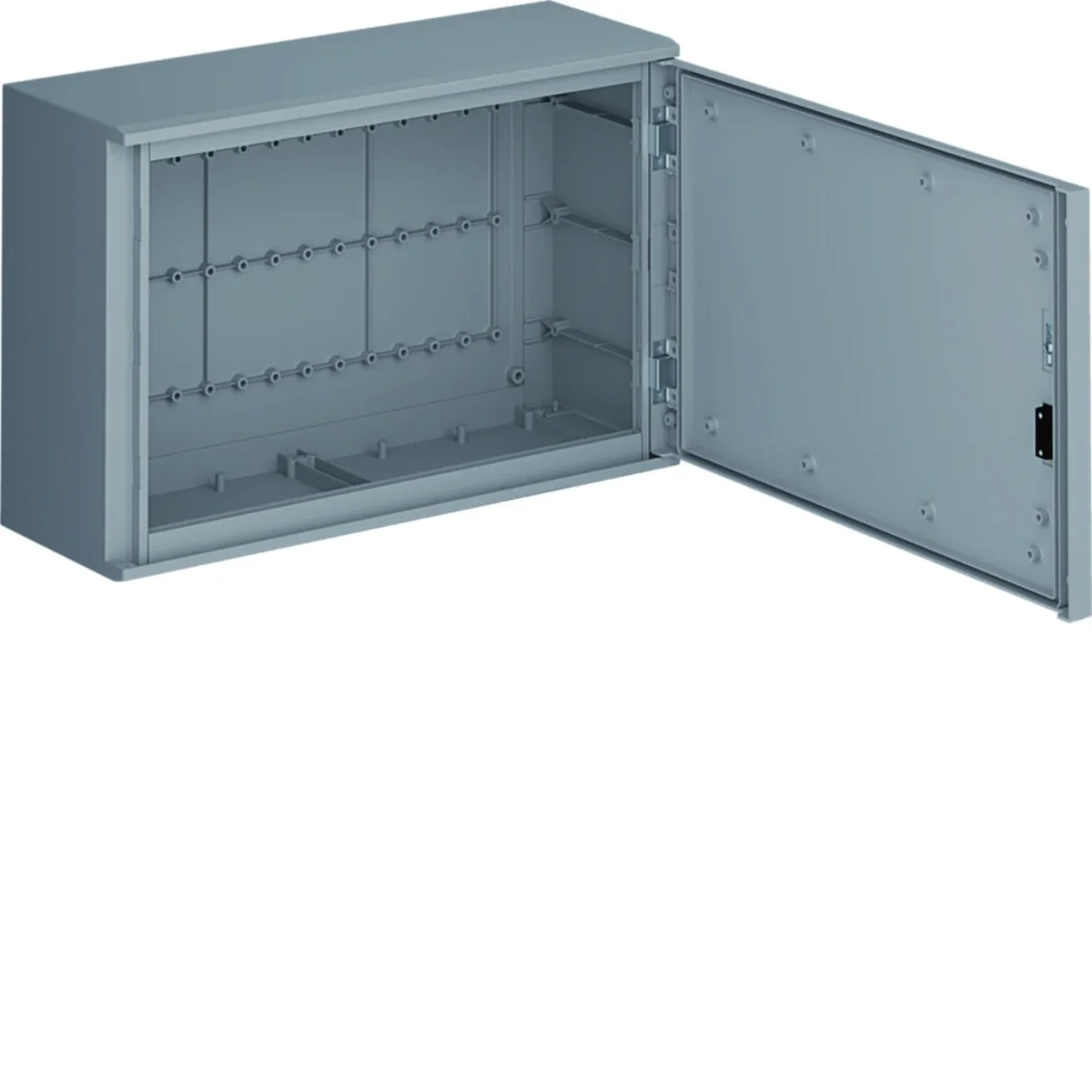

ORION+ Wall-mounted polyester enclosure 550x850x300 FL305B

Wall-mounted enclosure PANEL-structure, solid door, orion+ series.

• IP65,
• for indoor and outdoor (roofed) applications,
• insulation class II,
• grey,
• made of glass fiber reinforced polyester, th. 3.5 mm walls.

Internal installation system:

• housing for devices with a rated current of max. 630 A,
• rated voltage Un - 400 V, 50/60 Hz,
• rated insulation voltage Ui - 690 V,
• impulse voltage Uimp - 8 kV ,
• short-circuit current max. Icc - 35 kA.

Series characteristics:

orion+ enclosures are designed to work in harsh conditions. Thanks to the body made of glass fiber reinforced polyester, orion+ can be used even in harsh corrosive chemical environments. Internal equipment can be implemented flexibly by mounting mounting plates or DIN rails (in two versions), thus offering the appropriate equipment system - the classic function of electricity distribution and applications for control and automation of industrial processes.
