ORION+ Wall-mounted polyester casing 850x600x300 FL301B

local index:
RIH141HAGE
Catalog No:
FL301B
EAN code:
3250610672365
Manufacturer: HAGER
Depth [mm]: 300
Protection class: II
Material: Polyester
Price:
705,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

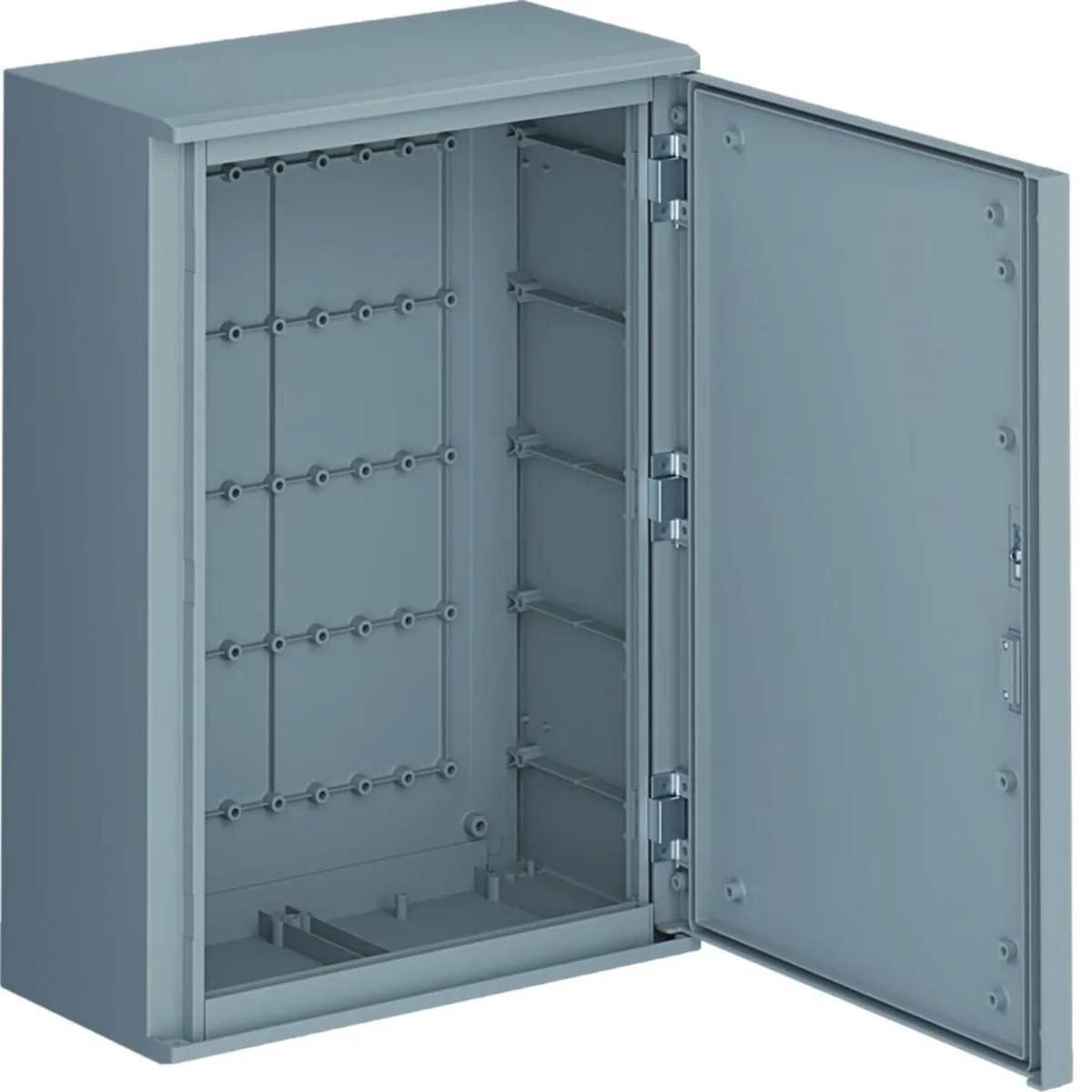

Wall-mounted enclosure PANEL-structure, solid door, orion+ series.

  • IP65,
  • for indoor and outdoor (roofed) applications,
  • insulation class II,
  • grey,
  • made of glass fiber reinforced polyester, th. 3.5 mm walls.

Internal installation system:

  • housing for devices with a rated current of max. 630 A,
  • rated voltage Un - 400 V, 50/60 Hz,
  • rated insulation voltage Ui - 690 V,
  • impulse voltage Uimp - 8 kV ,
  • short-circuit current max. Icc - 35 kA.

Series characteristics:

orion+ enclosures are designed to work in harsh conditions. Thanks to the body made of glass fiber reinforced polyester, orion+ can be used even in harsh corrosive chemical environments. Internal equipment can be implemented flexibly by mounting mounting plates or DIN rails (in two versions), thus offering the appropriate equipment system - the classic function of electricity distribution and applications for control and automation of industrial processes.

Technical data

  • Depth [mm]
    300
  • Material
    Polyester
  • Level of security
    IP65
  • Height [mm]
    850
  • Number of sections
    1
  • PKWIU
    27.12.40.0
  • Protection class
    II
  • Family
    ORION+
  • Width [mm]
    600
  • Number of modules
    23
  • Exact material
    Glass fiber reinforced polyester

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    With notch
  • Transparent cover/door
    Yes
  • Nominal current (In)
    630 A
  • Width
    600 mm
  • Built-in depth
    300 mm
  • Material plate thickness cabinet
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    5
  • Number of openings for flange plates
    0
  • Number of conduit inlets
    0
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    Yes
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK08
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    Yes
  • Height
    850 mm
  • Depth
    300 mm
  • Inner depth
    300 mm
  • Colour
    Grey
  • Number of modules
    23
  • Width in number of modular spacings
    23
  • Extension possible
    Yes
  • Housing material
    Plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    II
  • Circuit integrity
    None

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 3 pcs.
Weight (kg) 17,200 19,735 82,205
Width (m) 0,625 0,320 0,800
Length (m) 0,885 0,890 1,050
Depth (m) 0,305 0,620 1,200
