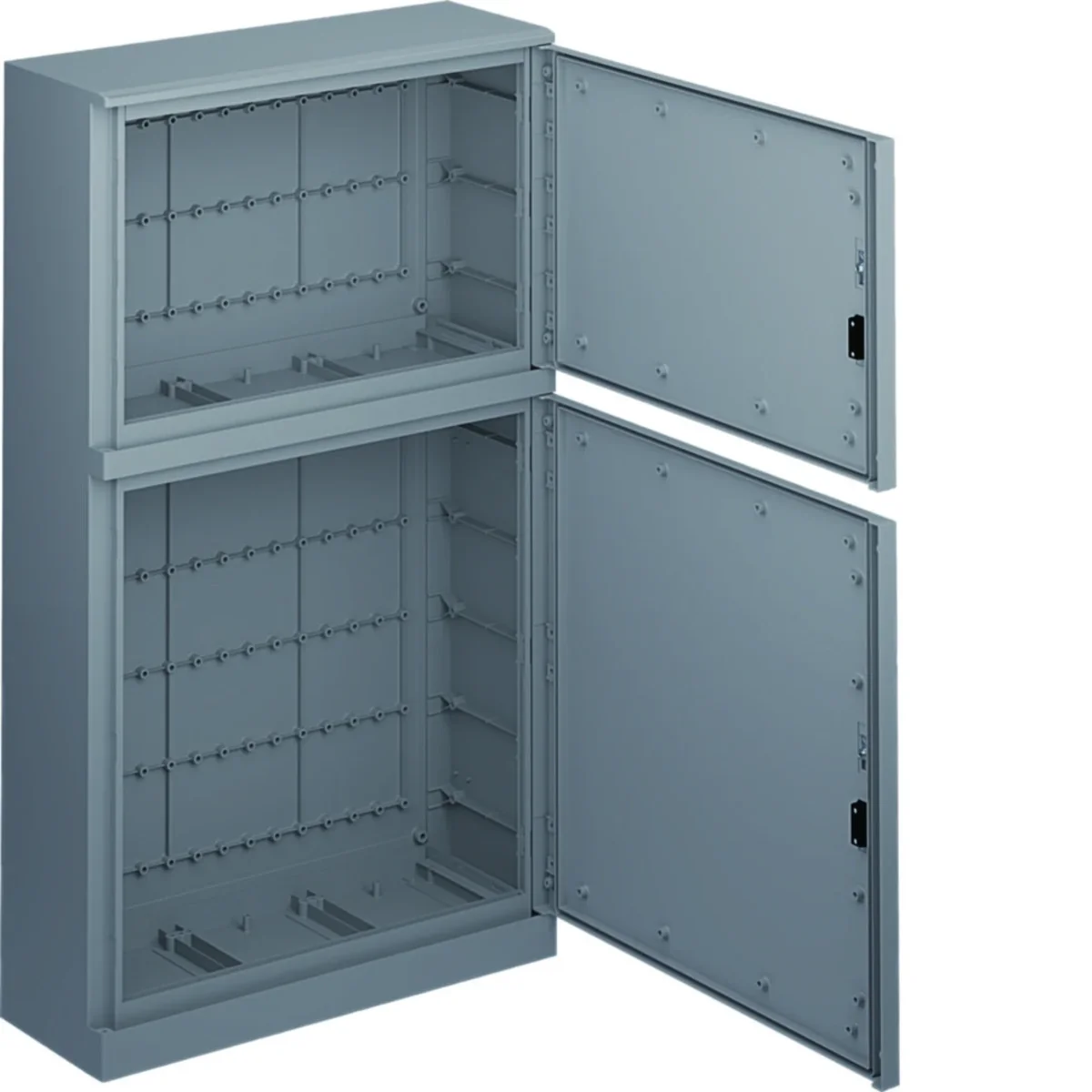

ORION+ Standing two-section polyester casing 1450x850x300 FL352B

local index:
RIH159HAGE
Catalog No:
FL352B
EAN code:
3250610672594
Manufacturer: HAGER
Depth [mm]: 300
Thickness [mm]: 2
Material: Polyester
Price:
1481,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Enclosure PANEL-structure standing two-section, solid door, orion+ series.

  • IP65,
  • for indoor and outdoor (roofed) applications,
  • insulation class II,
  • grey,
  • made of glass fiber reinforced polyester, thickness. 3.5 mm walls.

Internal installation system:

  • housing for devices with a rated current of max. 630 A,
  • rated voltage Un - 400 V, 50/60 Hz,
  • rated insulation voltage Ui - 690 V,
  • impulse voltage Uimp - 8 kV ,
  • short-circuit current max. Icc - 35 kA.

Series characteristics:

orion+ enclosures are designed to work in harsh conditions. Thanks to the body made of glass fiber reinforced polyester, orion+ can be used even in harsh corrosive chemical environments. Internal equipment can be implemented flexibly by mounting mounting plates or DIN rails (in two versions), thus offering the appropriate equipment system - the classic function of electricity distribution and applications for control and automation of industrial processes.

Technical data

  • Depth [mm]
    300
  • Material
    Polyester
  • Family
    ORION+
  • Height [mm]
    1450
  • Number of rows for cameras
    8
  • PKWIU
    27.12.40.0
  • Thickness [mm]
    2
  • Installation
    Surface-mounted
  • Width [mm]
    850
  • Number of sections
    1
  • Exact material
    Glass fiber reinforced polyester

Other technical data

  • Mounting method
    Other
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    630 A
  • Width
    850 mm
  • Built-in depth
    300 mm
  • Material plate thickness cabinet
    2 mm
  • Colour
    Grey
  • Number of modules
    111
  • Number of openings for flange plates
    0
  • Number of conduit inlets
    0
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK08
  • Type of covering
    Cover
  • Type of door
    Single
  • With lock
    Yes
  • Height
    1450 mm
  • Depth
    300 mm
  • Inner depth
    300 mm
  • Material plate thickness door/cover
    2 mm
  • RAL-number
    7035
  • Number of rows
    3
  • Extension possible
    No
  • Housing material
    Plastic
  • With mounting plate
    Yes
  • Suitable for lightning protection
    No
  • Protection class
    II
  • Circuit integrity
    None

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 1 pcs. 4 pcs.
Weight (kg) 46,000 46,640 46,640 186,560
Width (m) 0,860 0,860 0,860 0,080
Length (m) 0,300 0,300 0,300 0,120
Depth (m) 1,500 1,500 1,500 0,120
