ORION+ Standing two-section polyester casing 1450x600x300 FL342B

Indice locale:
RIH152HAGE
Numero di catalogo:
FL342B
Codice EAN:
3250610672549
Produttore: HAGER
Depth [mm]: 300
Family: ORION+
Width [mm]: 600
Prezzo:
1305,53 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 10 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

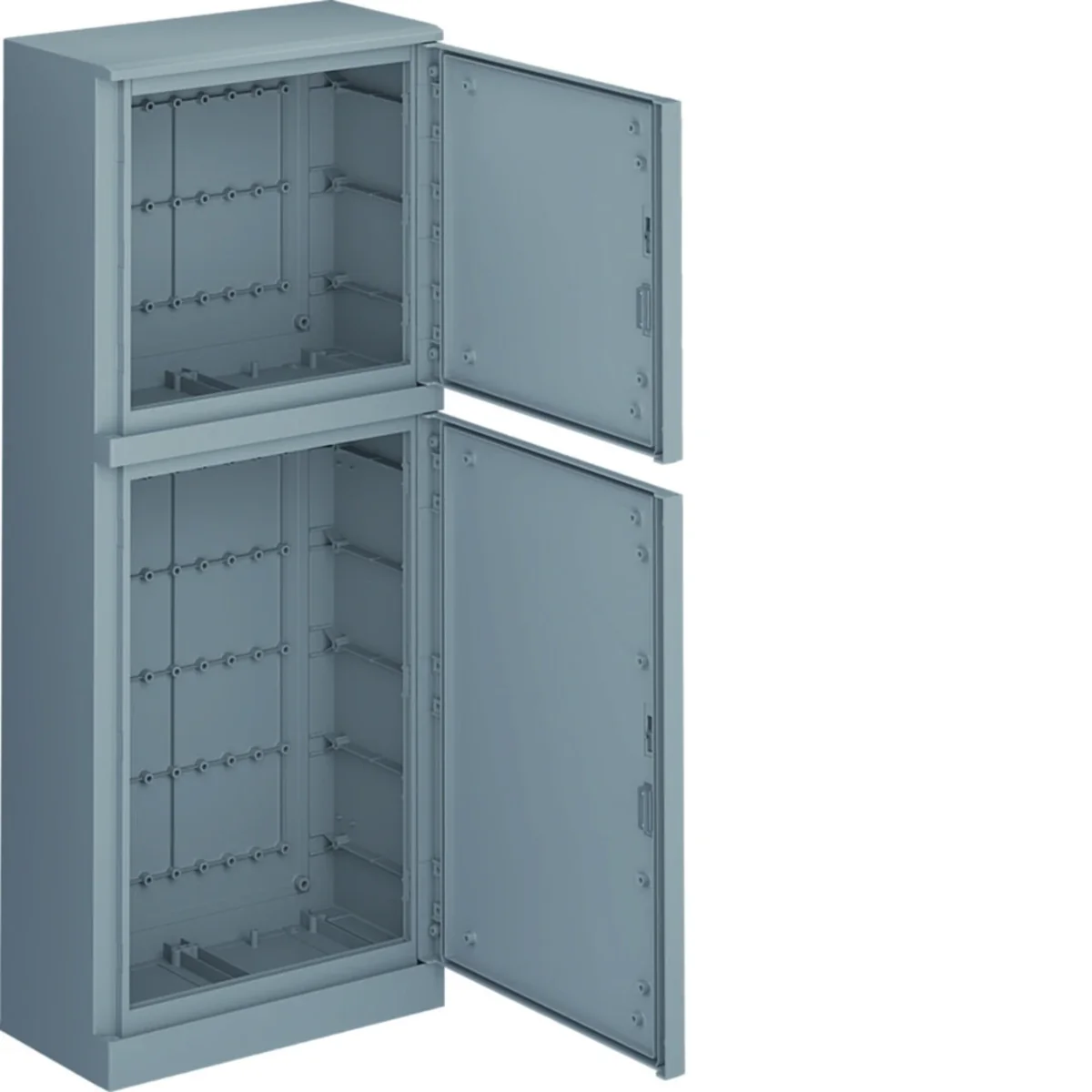

Enclosure PANEL-structure standing two-section, solid door, orion+ series.

  • IP65,
  • for indoor and outdoor (roofed) applications,
  • insulation class II,
  • grey,
  • made of glass fiber reinforced polyester, thickness. 3.5 mm walls.

Internal installation system:

  • housing for devices with a rated current of max. 630 A,
  • rated voltage Un - 400 V, 50/60 Hz,
  • rated insulation voltage Ui - 690 V,
  • impulse voltage Uimp - 8 kV ,
  • short-circuit current max. Icc - 35 kA.

Series characteristics:

orion+ enclosures are designed to work in harsh conditions. Thanks to the body made of glass fiber reinforced polyester, orion+ can be used even in harsh corrosive chemical environments. Internal equipment can be implemented flexibly by mounting mounting plates or DIN rails (in two versions), thus offering the appropriate equipment system - the classic function of electricity distribution and applications for control and automation of industrial processes.

Dati tecnici

  • Depth [mm]
    300
  • Width [mm]
    600
  • Number of sections
    1
  • Family
    ORION+
  • Height [mm]
    1450
  • PKWIU
    27.12.40.0

Altri dati tecnici

  • Mounting method
    Surface mounted
  • Cover model
    With notch
  • Transparent cover/door
    Yes
  • Nominal current (In)
    630 A
  • Width
    600 mm
  • Built-in depth
    300 mm
  • Material plate thickness cabinet
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    3
  • Extension possible
    Yes
  • Housing material
    Plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    Yes
  • Height
    1450 mm
  • Depth
    300 mm
  • Inner depth
    300 mm
  • Colour
    Grey
  • Number of modules
    69
  • Number of openings for flange plates
    0
  • Number of conduit inlets
    0
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    Yes
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK10

Imballaggio sfuso

Una specie di pacchetto Karton Paleta
Quantità 1 pezzi 1 pezzi 6 pezzi
Peso (kg) 34,749 36,500 208,500
Larghezza (m) 0,620 0,315 0,800
Lunghezza (m) 1,480 1,510 1,630
Profondità (m) 0,310 0,630 1,200
