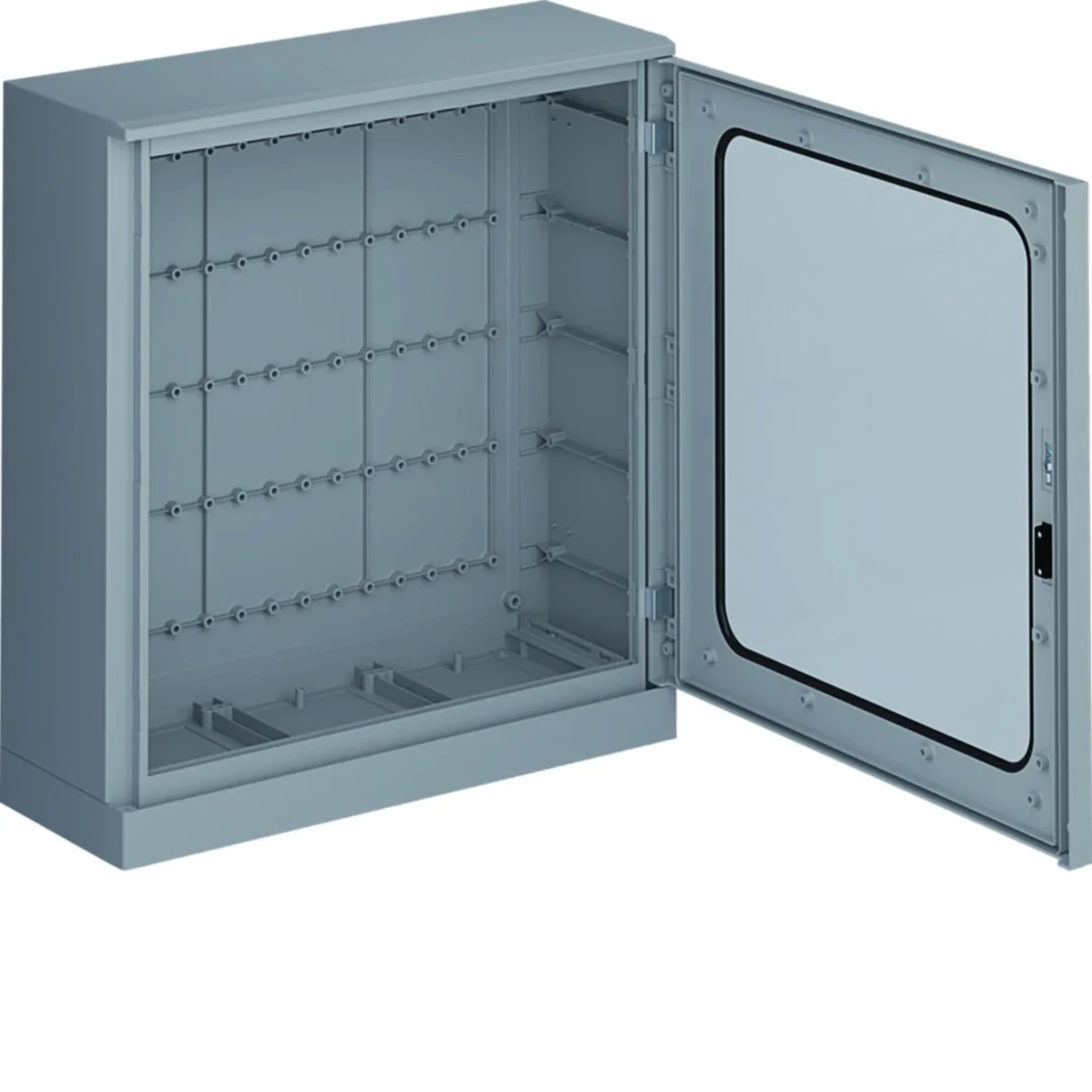

ORION+ Polyester enclosure with a base, transparent door 900x850x300 FL526B

local index:
RIH180HAGE
Catalog No:
FL526B
EAN code:
3250610676264
Manufacturer: HAGER
Depth [mm]: 300
Family: ORION+
Width [mm]: 850
Price:
891,79 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Enclosure PANEL-structure with plinth, transparent door, orion+ series.

  • IP65,
  • for indoor and outdoor (roofed) applications,
  • insulation class II,
  • grey,
  • made of glass fiber reinforced polyester, thickness. 3.5 mm walls.

Internal installation system:

  • housing for devices with a rated current of max. 630 A,
  • rated voltage Un - 400 V, 50/60 Hz,
  • rated insulation voltage Ui - 690 V,
  • impulse voltage Uimp - 8 kV ,
  • short-circuit current max. Icc - 35 kA.

Series characteristics:

orion+ enclosures are designed to work in harsh conditions. Thanks to the body made of glass fiber reinforced polyester, orion+ can be used even in harsh corrosive chemical environments. Internal equipment can be implemented flexibly by mounting mounting plates or DIN rails (in two versions), thus offering the appropriate equipment system - the classic function of electricity distribution and applications for control and automation of industrial processes.

Technical data

  • Depth [mm]
    300
  • Width [mm]
    850
  • PKWIU
    27.12.40.0
  • Family
    ORION+
  • Height [mm]
    900

Other technical data

  • Mounting method
    Floor installation
  • Cover model
    Closed
  • Transparent cover/door
    Yes
  • Nominal current (In)
    630 A
  • Width
    850 mm
  • Built-in depth
    300 mm
  • Material plate thickness cabinet
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    5
  • Extension possible
    Yes
  • Housing material
    Plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    Yes
  • Height
    900 mm
  • Depth
    300 mm
  • Inner depth
    300 mm
  • Colour
    Grey
  • Number of modules
    185
  • Number of openings for flange plates
    0
  • Number of conduit inlets
    0
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    Yes
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK10

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 4 pcs.
Weight (kg) 30,170 30,170 120,680
Width (m) 0,870 0,870 -
Length (m) 0,960 0,960 -
Depth (m) 0,315 0,315 -
