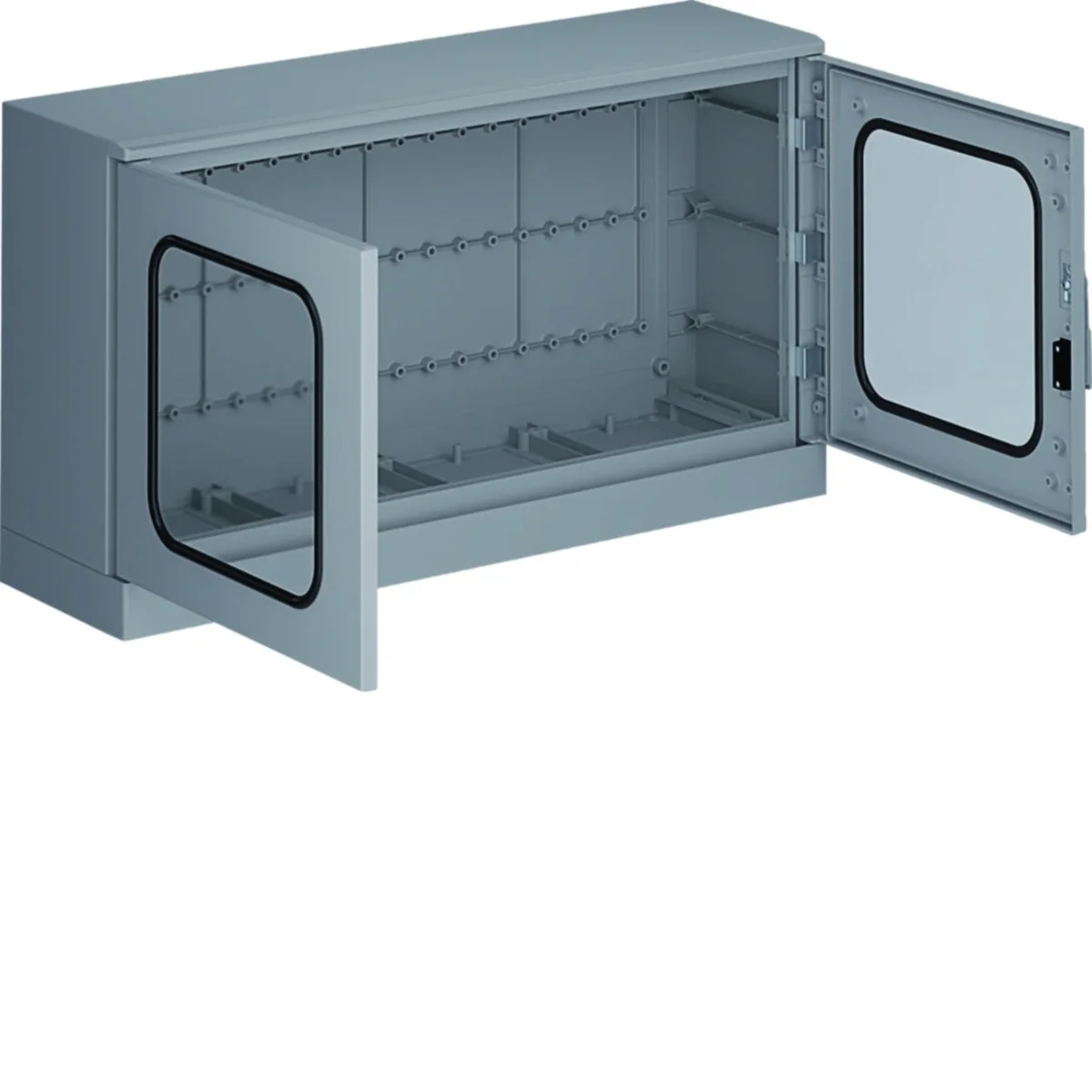

ORION+ Polyester enclosure with a base, transparent door 600x1100x300 FL530B

local index:
RIH184HAGE
Catalog No:
FL530B
EAN code:
3250610676301
Manufacturer: HAGER
Depth [mm]: 300
Family: ORION+
Width [mm]: 1100
Price:
1073,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Housing PANEL-structure with plinth, orion+ series.

  • IP65,
  • for indoor applications and outdoor (roofed),
  • insulation class II,
  • grey,
  • made of glass fiber reinforced polyester, thickness. 3.5 mm walls.

Internal building system:

  • housing for devices with a rated current of max. 630 A,
  • rated voltage Un - 400 V, 50/60 Hz,
  • rated insulation voltage Ui - 690 V,
  • impulse voltage Uimp - 8 kV ,
  • short-circuit current max. Icc - 35 kA.

Series characteristics:

orion+ enclosures are designed to work in harsh conditions. Thanks to the body made of glass fiber reinforced polyester, orion+ can be used even in harsh corrosive chemical environments. Internal equipment can be implemented flexibly by mounting mounting plates or DIN rails (in two versions), thus offering the appropriate equipment system - the classic function of electricity distribution and applications for control and automation of industrial processes.

Technical data

  • Depth [mm]
    300
  • Width [mm]
    1100
  • PKWIU
    27.12.40.0
  • Family
    ORION+
  • Height [mm]
    600

Other technical data

  • Mounting method
    Floor installation
  • Cover model
    Closed
  • Transparent cover/door
    Yes
  • Nominal current (In)
    630 A
  • Width
    1100 mm
  • Built-in depth
    300 mm
  • Material plate thickness cabinet
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    3
  • Extension possible
    Yes
  • Housing material
    Plastic
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    Yes
  • Height
    600 mm
  • Depth
    300 mm
  • Inner depth
    300 mm
  • Colour
    Grey
  • Number of modules
    138
  • Number of openings for flange plates
    0
  • Number of conduit inlets
    0
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    Yes
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK10

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 6 pcs.
Weight (kg) 30,300 30,300 181,800
Width (m) 0,640 0,640 -
Length (m) 1,100 1,100 -
Depth (m) 0,310 0,310 -
