ORION plus polyester enclosure (wall-mounted) 1150X850X300 FL307B

Name: ORION plus polyester enclosure (wall-mounted) 1150X850X300
Brand: HAGER
SKU: RIH018HAGE
Price: 927.01 PLN

local index:

RIH018HAGE

Catalog No:

FL307B

EAN code:

3250610672402

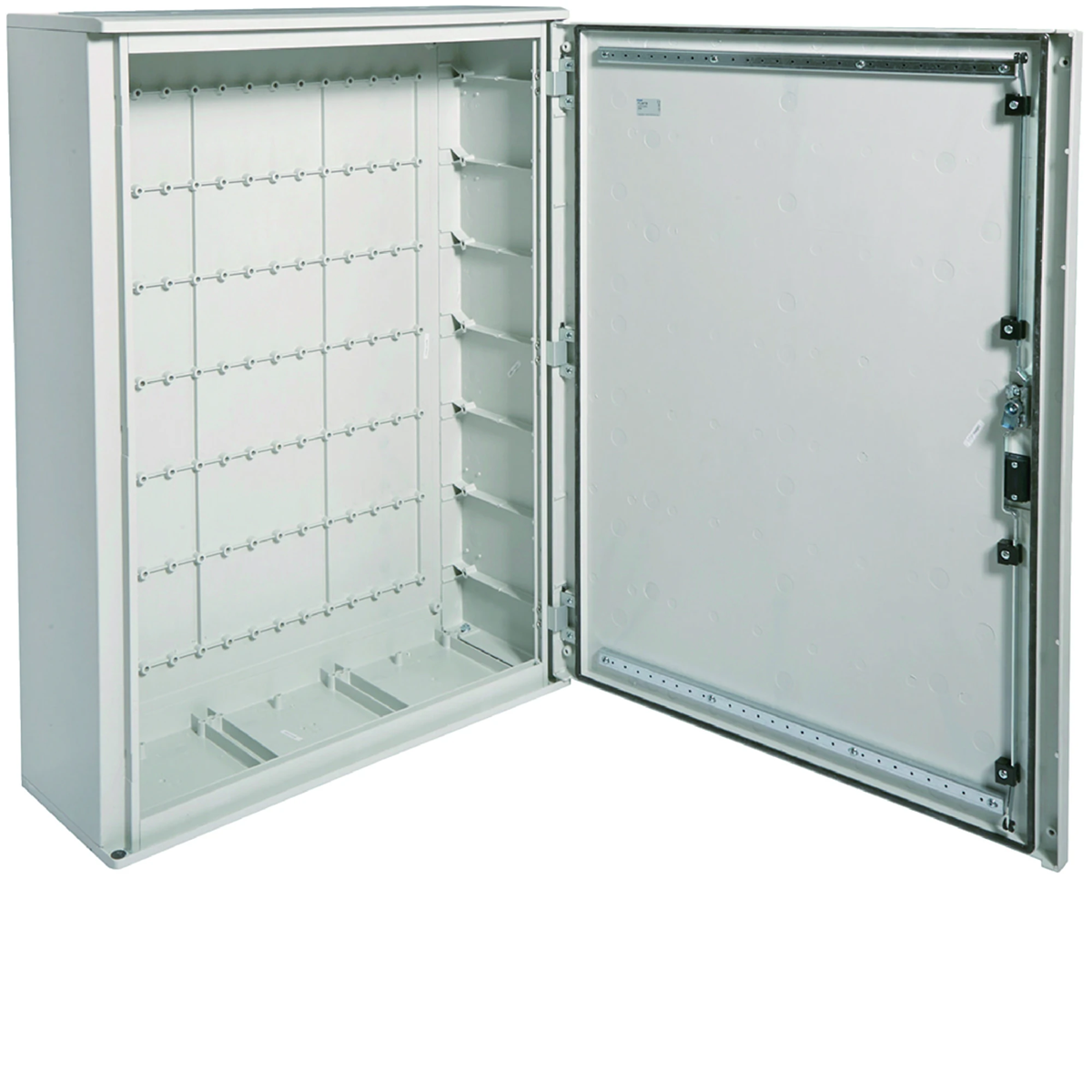

ORION plus polyester enclosure (wall-mounted) 1150X850X300

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 300

Color: Gray

Level of security: IP65

See full description

Price:

927,01 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Orion Plus Polyester Enclosure (Wall) 1150X850X300
• surface-mounted and floor-standing enclosures IP65/IK10
• for indoor and outdoor (roofed) applications
• insulation class II
• color RAL 7035 (grey)
• standards: PN-EN 60439-1, EN 62208, EN 50298
• polyester door with one or two locks with a triangular insert
• enclosures made of polyester reinforced with glass fiber th. 3.5 mm walls
• standard housings adapted for direct mounting of mounting plates
• standard protective canopy at the bottom and top of the housing
Internal development system:
• enclosures for devices for rated current max. 630A
• rated voltage Un - 400 V, 50/60 Hz
• rated insulation voltage Ui - 690 V
• impulse voltage Uimp - 8 kV
• short-circuit current max. Icc - 35kA

Technical data

Depth [mm]

300
Level of security

IP65
Height [mm]

1150
PKWIU

27.12.40.0

Color

Gray
Width [mm]

850
Accurate color

Gray

Other technical data

Mounting method

Surface mounted
Cover model

With notch
Transparent cover/door

Yes
Nominal current (In)

630 A
Width

850 mm
Built-in depth

300 mm
Material plate thickness cabinet

1.5 mm
RAL-number

7035
Number of rows

7
Extension possible

Yes
Housing material

Plastic
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Type of covering

Door
Type of door

Single
With lock

Yes
Height

1150 mm
Depth

300 mm
Inner depth

300 mm
Colour

Grey
Number of modules

259
Number of openings for flange plates

0
Number of conduit inlets

0
Surface protection

Powder coating
Suitable for outdoor use

Yes
Degree of protection (IP)

IP65
Impact strength

IK10

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	3 pcs.
Weight (kg)	30,350	33,470	123,410
Width (m)	1,150	0,310	0,860
Length (m)	0,850	1,190	1,340
Depth (m)	0,300	0,860	1,200
