ORION plus auto/distribution housing full door 1250X600X250 FL129A

Name: ORION plus auto/distribution housing full door 1250X600X250
Brand: HAGER
SKU: RIR160HAGE
Price: 480.55 PLN

local index:

RIR160HAGE

Catalog No:

FL129A

EAN code:

3250610670576

ORION plus auto/distribution housing full door 1250X600X250

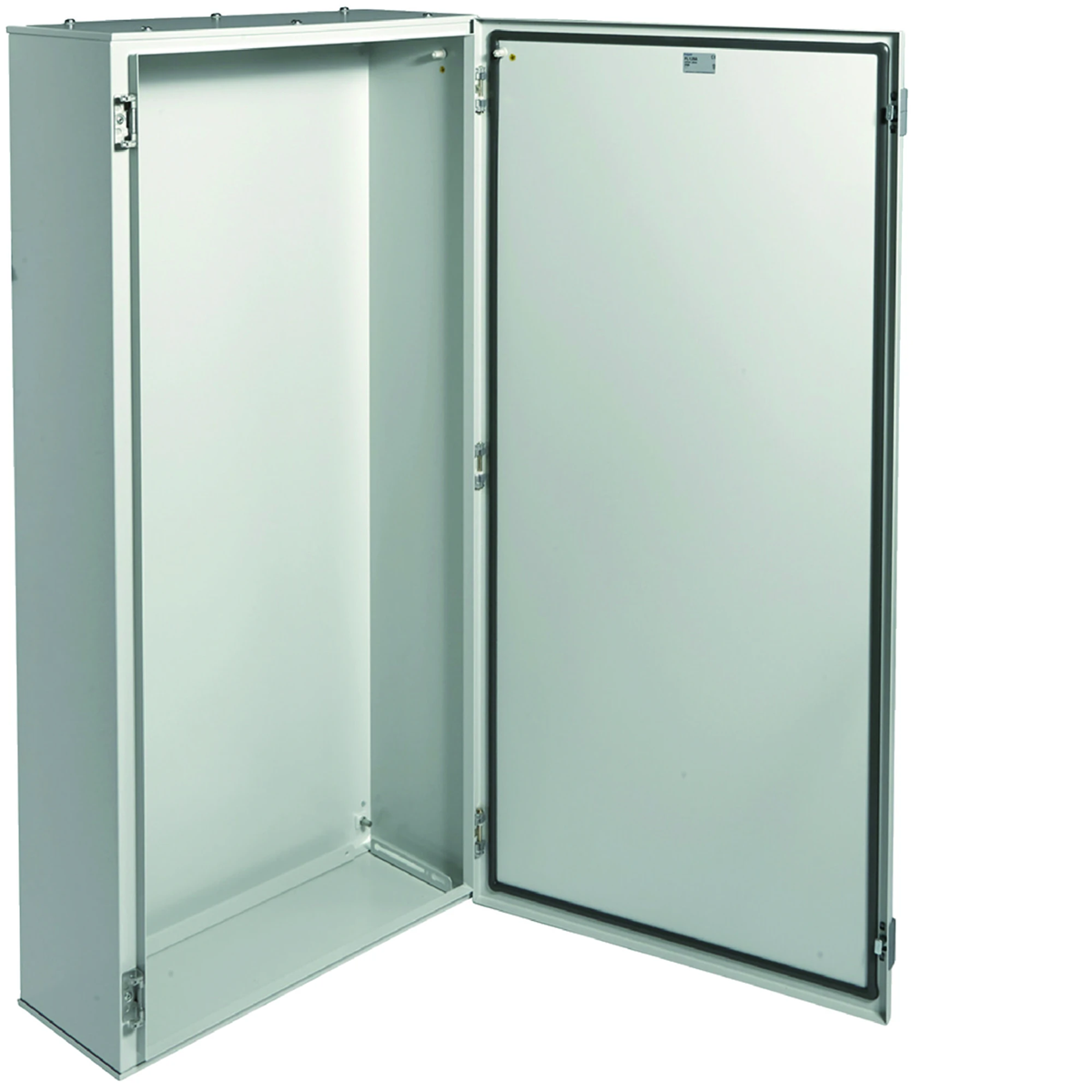

Click on the photo to enlarge

Manufacturer: HAGER

Width [mm]: 600

Height [mm]: 1250

See full description

Price:

480,55 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Orion Plus chassis auto/distribution full door 1250X600X250
• surface-mounted enclosures IP65/IK10
• for indoor applications
• insulation class I
• color RAL 7035 (grey)
• standards: EN 60439-1, EN 62208, EN 50298
• metal door with one or two locks with a triangular insert
• the ability to easily change the door from left to right
• perfectly fixed and fitted door
• standard housings adapted for direct mounting of mounting plates
• facilitated preparation of cable entries through dismountable lower and upper enclosure plates
Interior development system:
• housing for devices for rated current max. 630A
• rated voltage Un - 400 V, 50/60 Hz
• rated insulation voltage Ui - 690 V
• impulse voltage Uimp - 8 kV
• short-circuit current max. Icc - 35kA

Technical data

Width [mm]

600
PKWIU

27.12.40.0

Height [mm]

1250

Other technical data

Mounting method

Surface mounted
Cover model

Closed
Transparent cover/door

No
Nominal current (In)

630 A
Width

600 mm
Built-in depth

250 mm
Material plate thickness cabinet

1.2 mm
Colour

Grey
Number of modules

208
Width in number of modular spacings

26
Extension possible

Yes
Housing material

Steel
With mounting plate

No
Suitable for lightning protection

No
Protection class

I
Circuit integrity

None

Type of covering

Door
Type of door

Single
With lock

Yes
Height

1250 mm
Depth

300 mm
Inner depth

250 mm
Material plate thickness door/cover

1.5 mm
RAL-number

7035
Number of rows

8
Number of openings for flange plates

2
Number of conduit inlets

2
Surface protection

Powder coating
Suitable for outdoor use

No
Degree of protection (IP)

IP65
Impact strength

IK10

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	4 pcs.
Weight (kg)	30,400	33,050	122,000
Width (m)	0,600	0,610	0,800
Length (m)	1,250	1,295	1,440
Depth (m)	0,250	0,270	1,200
