HAGER

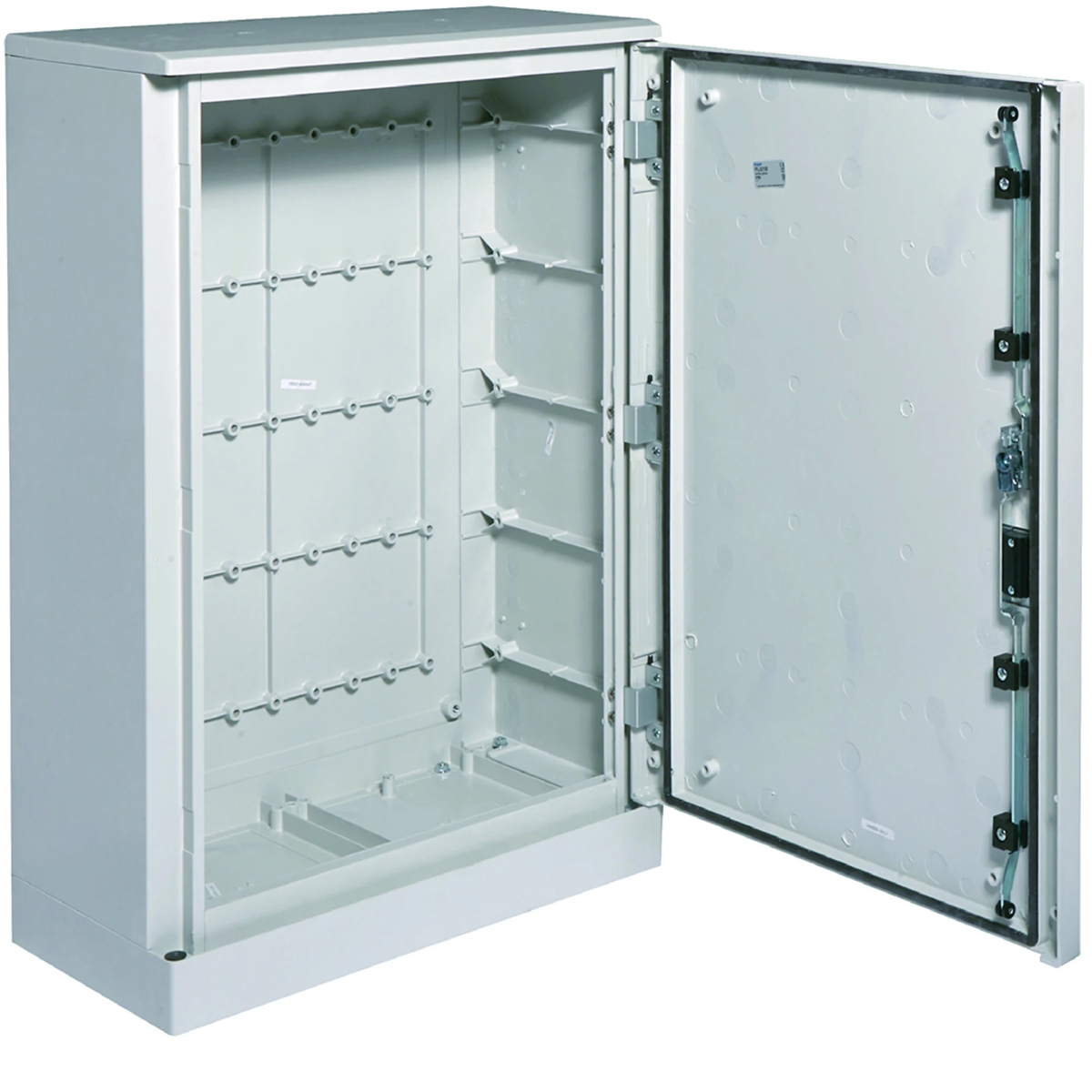

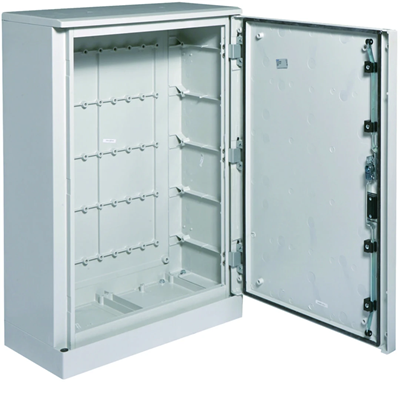

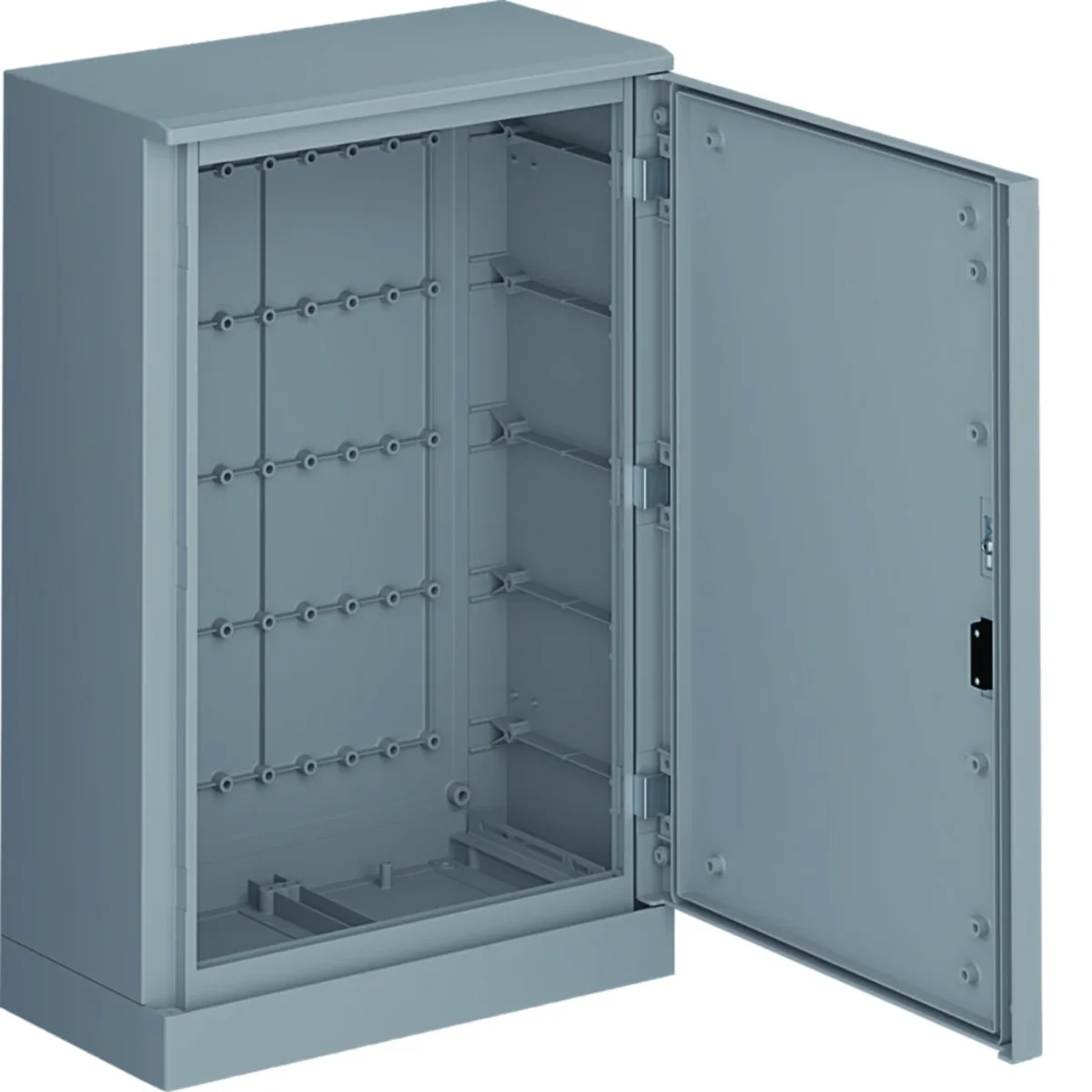

ORION+ 900x600x300mm Polyester casing (with plinth) FL321B

local index:
RIH087HAGE
Catalog No:
FL321B
EAN code:
3250610672457
Price:
765,40 €
gross / pcs.
including VAT 23%
Availability:
up to 10 weeks (business days)
Delivery:
From 3,70 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Polyester enclosures:
• IP65/IK10 surface-mounted and floor-standing enclosures
• for indoor and outdoor (roofed) applications
• insulation class II
• color RAL 7035 (grey)
• standards: PN-EN 60439-1, EN 62208, EN 50298
• polyester door with one or two locks with a triangular insert
• enclosures made of glass fiber reinforced polyester, thickness. walls 3.5 mm
• enclosures as standard adapted for direct mounting of mounting plates
• standard protective canopy at the bottom and top of the housing
Internal building system:
• enclosures for devices with a rated current of max. 630A
• rated voltage Un - 400 V, 50/60 Hz
• rated insulation voltage Ui - 690 V
• impulse voltage Uimp - 8 kV
• short-circuit current max. Icc - 35kA

Technical data

  • Depth [mm]
    300
  • Width [mm]
    600
  • Level of security
    IP65
  • Height [mm]
    900

Other technical data

  • Mounting method
    Surface mounted
  • Cover model
    With notch
  • Transparent cover/door
    yes
  • Nominal current (In)
    630 A
  • Width
    600 mm
  • Built-in depth
    300 mm
  • Material plate thickness cabinet
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    5
  • Extension possible
    yes
  • Housing material
    Plastic
  • With mounting plate
    no
  • Suitable for lightning protection
    no
  • Protection class
    II
  • Circuit integrity
    None
  • Type of covering
    Door
  • Type of door
    Single
  • With lock
    yes
  • Height
    900 mm
  • Depth
    300 mm
  • Inner depth
    300 mm
  • Colour
    Grey
  • Number of modules
    115
  • Number of openings for flange plates
    0
  • Number of conduit inlets
    0
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    yes
  • Degree of protection (IP)
    IP65
  • Impact strength
    IK10
