ORION+ 900x1100x300mm Polyester casing (with plinth) FL331B

Name: ORION+ 900x1100x300mm Polyester casing (with plinth)
Brand: HAGER
SKU: RIH086HAGE
Price: 1182.72 PLN

local index:

RIH086HAGE

Catalog No:

FL331B

EAN code:

3250610672518

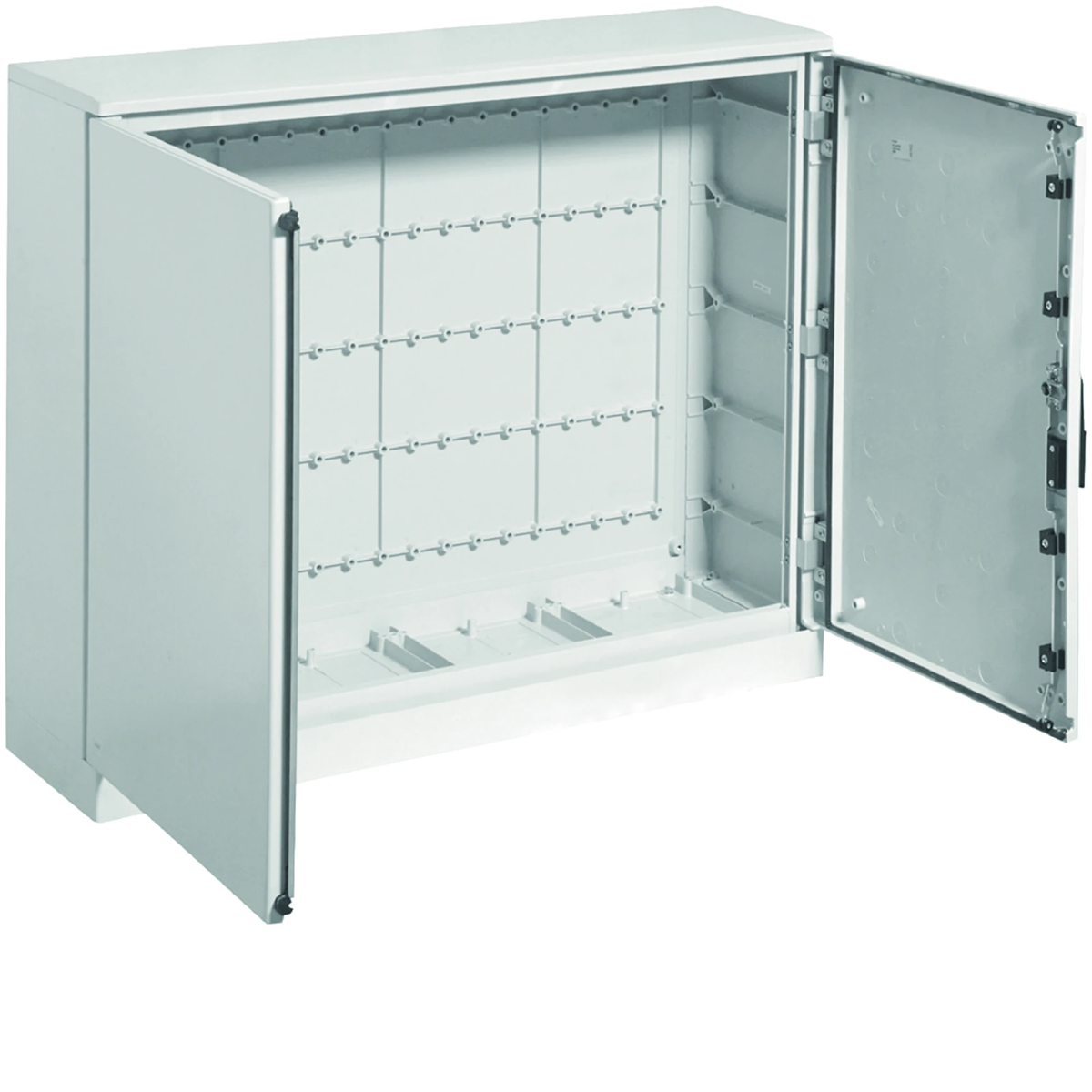

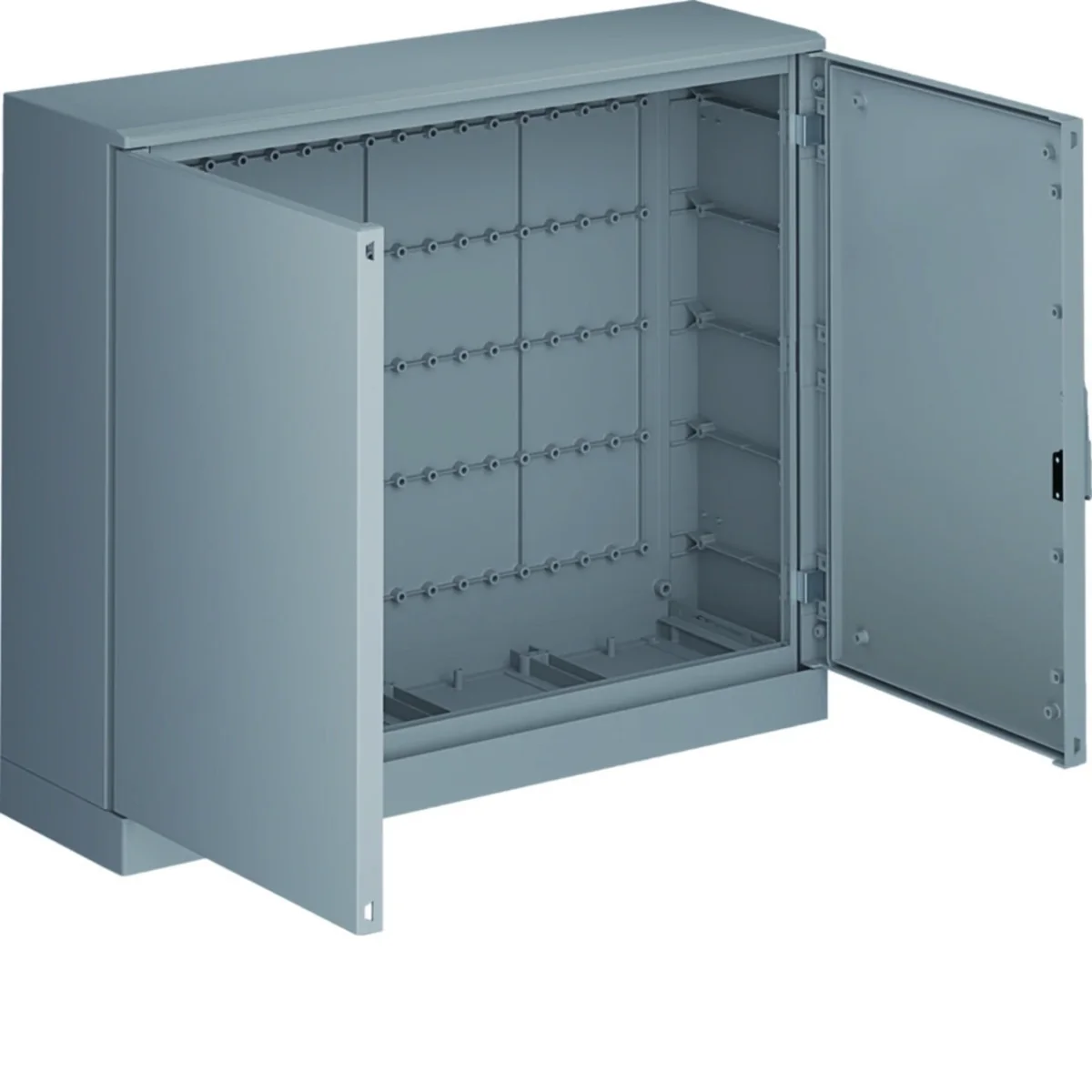

ORION+ 900x1100x300mm Polyester casing (with plinth)

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 300

Level of security: IP65

Width [mm]: 1100

See full description

Price:

1182,72 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Polyester enclosures:
• IP65/IK10 surface-mounted and floor-standing enclosures
• for indoor and outdoor (roofed) applications
• insulation class II
• color RAL 7035 (grey)
• standards: PN-EN 60439-1, EN 62208, EN 50298
• polyester door with one or two locks with a triangular insert
• enclosures made of glass fiber reinforced polyester, thickness. walls 3.5 mm
• enclosures as standard adapted for direct mounting of mounting plates
• standard protective canopy at the bottom and top of the housing
Internal building system:
• enclosures for devices with a rated current of max. 630A
• rated voltage Un - 400 V, 50/60 Hz
• rated insulation voltage Ui - 690 V
• impulse voltage Uimp - 8 kV
• short-circuit current max. Icc - 35kA

Technical data

Depth [mm]

300
Width [mm]

1100
PKWIU

27.12.40.0

Level of security

IP65
Height [mm]

900

Other technical data

Mounting method

Surface mounted
Cover model

With notch
Transparent cover/door

Yes
Nominal current (In)

630 A
Width

1100 mm
Built-in depth

300 mm
Material plate thickness cabinet

1.5 mm
RAL-number

7035
Number of rows

5
Extension possible

Yes
Housing material

Plastic
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Type of covering

Door
Type of door

Single
With lock

Yes
Height

900 mm
Depth

300 mm
Inner depth

300 mm
Colour

Grey
Number of modules

230
Number of openings for flange plates

0
Number of conduit inlets

0
Surface protection

Powder coating
Suitable for outdoor use

Yes
Degree of protection (IP)

IP65
Impact strength

IK10

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Paleta
Quantity	1 pcs.	3 pcs.
Weight (kg)	37,000	108,900
Width (m)	0,330	0,800
Length (m)	1,100	1,250
Depth (m)	0,950	1,200
