ORION+ 600x600x300mm Polyester casing (with plinth) FL320B

Name: ORION+ 600x600x300mm Polyester casing (with plinth)
Brand: HAGER
SKU: RIH084HAGE
Price: 693.93 PLN

local index:

RIH084HAGE

Catalog No:

FL320B

EAN code:

3250610672440

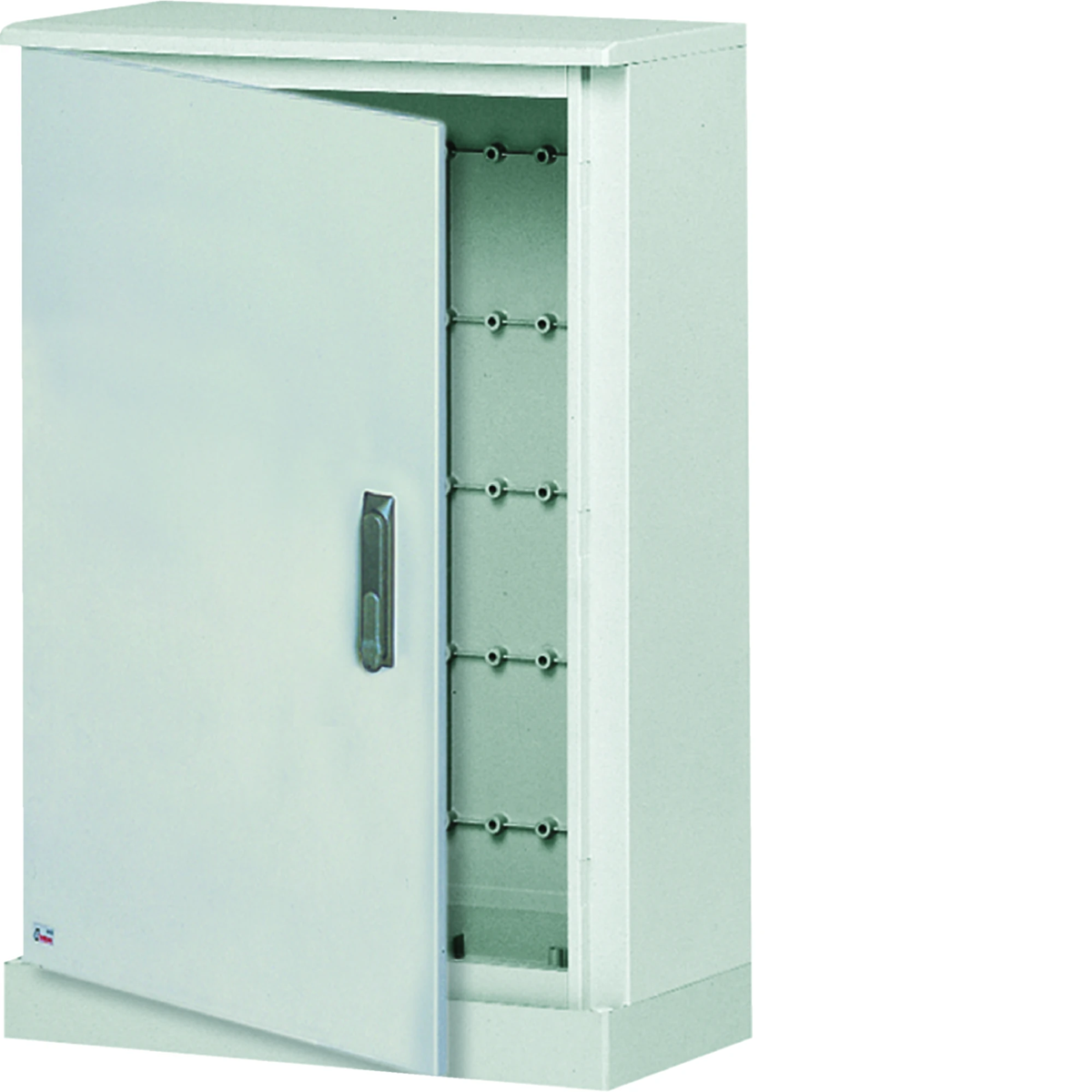

ORION+ 600x600x300mm Polyester casing (with plinth)

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 300

Level of security: IP65

Width [mm]: 600

See full description

Price:

693,93 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Polyester enclosures:
• IP65/IK10 surface-mounted and floor-standing enclosures
• for indoor and outdoor (roofed) applications
• insulation class II
• color RAL 7035 (grey)
• standards: PN-EN 60439-1, EN 62208, EN 50298
• polyester door with one or two locks with a triangular insert
• enclosures made of glass fiber reinforced polyester, thickness. walls 3.5 mm
• enclosures as standard adapted for direct mounting of mounting plates
• standard protective canopy at the bottom and top of the housing
Internal building system:
• enclosures for devices with a rated current of max. 630A
• rated voltage Un - 400 V, 50/60 Hz
• rated insulation voltage Ui - 690 V
• impulse voltage Uimp - 8 kV
• short-circuit current max. Icc - 35kA

Technical data

Depth [mm]

300
Width [mm]

600
PKWIU

27.12.40.0

Level of security

IP65
Height [mm]

600

Other technical data

Mounting method

Surface mounted
Cover model

With notch
Transparent cover/door

Yes
Nominal current (In)

630 A
Width

600 mm
Built-in depth

300 mm
Material plate thickness cabinet

1.5 mm
RAL-number

7035
Number of rows

3
Extension possible

Yes
Housing material

Plastic
With mounting plate

No
Suitable for lightning protection

No
Protection class

II
Circuit integrity

None

Type of covering

Door
Type of door

Single
With lock

Yes
Height

600 mm
Depth

300 mm
Inner depth

200 mm
Colour

Grey
Number of modules

69
Number of openings for flange plates

0
Number of conduit inlets

0
Surface protection

Powder coating
Suitable for outdoor use

Yes
Degree of protection (IP)

IP65
Impact strength

IK10

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	3 pcs.
Weight (kg)	19,000	19,300	80,000
Width (m)	0,620	0,335	0,800
Length (m)	0,633	0,650	0,800
Depth (m)	0,310	0,610	1,200
