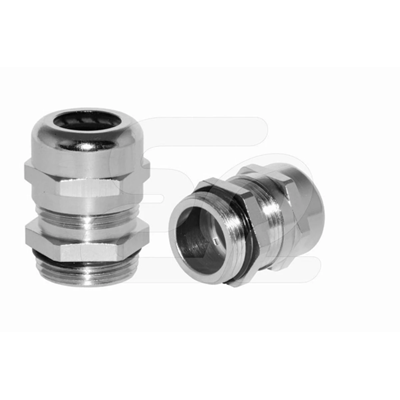

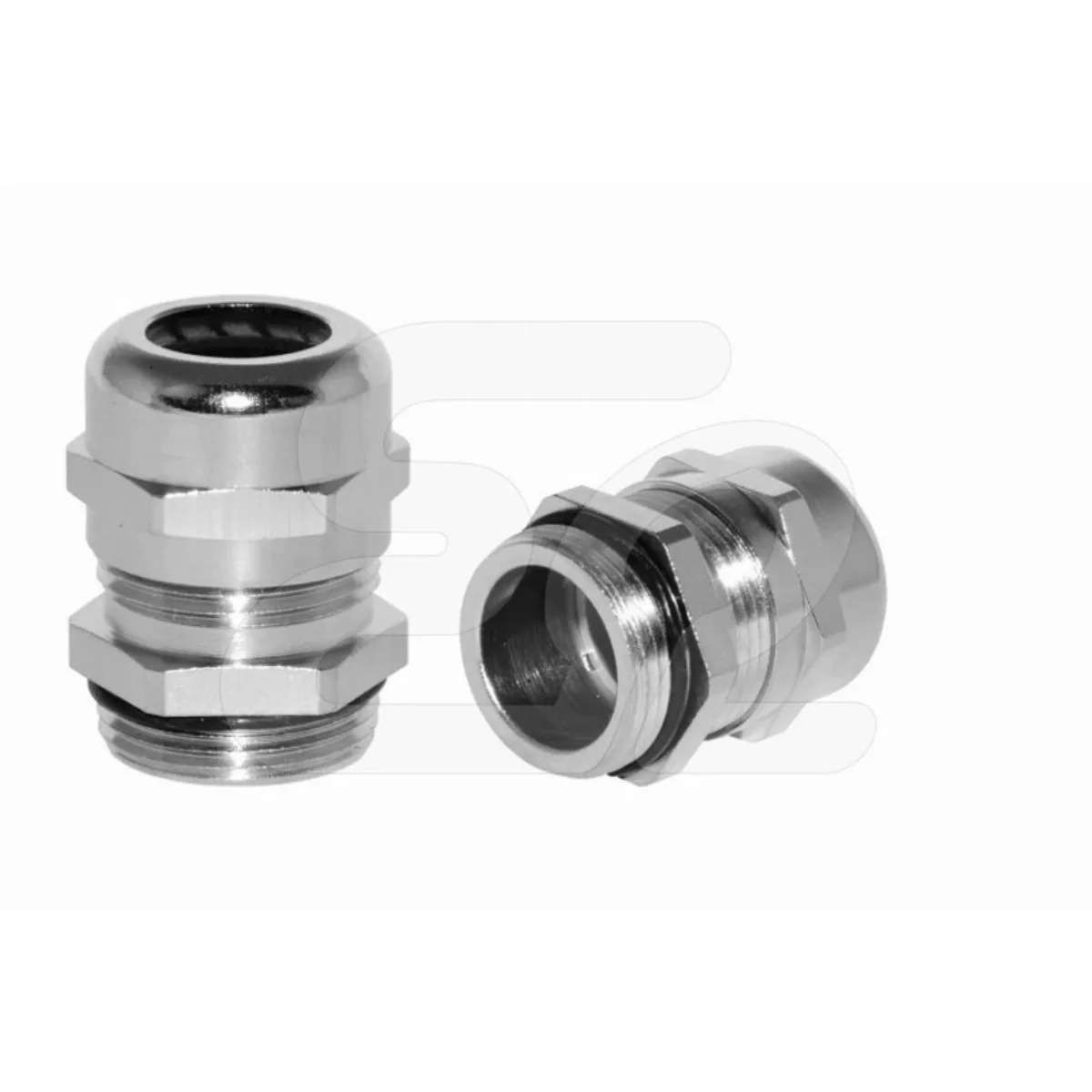

Nickel-plated brass cable gland with cap nut MDW 11H PG11 IP 68 E03DK-03070100301

local index:
RRR459ERGO
Catalog No:
E03DK-03070100301
Manufacturer: ERGOM
Halogen free: Yes
Thread: PG11
Color: Silver
Price:
2,44 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Gland brass, nickel-plated with cap nut:

  • PG11 thread
  • polyamide insert with slats
  • the highest degree of protection IP68
  •  factory mounted two-piece o-ring seal: CR/NBR rubber and NBR rubber
  • intended for indoor and outdoor use

Technical data

  • Halogen free
    Yes
  • Color
    Silver
  • Material
    Nickel-plated brass
  • Minimum operating temperature [°C]
    -40
  • Thread
    PG11
  • Maximum operating temperature [°C]
    100
  • Level of security
    IP68
  • PKWIU
    25.99.29.0

Other technical data

  • Thread type
    PG
  • Thread length
    6 mm
  • Suitable for cable diameter
    6.5 ... 10.5 mm
  • Material quality
    Brass
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP68
  • Colour
    Kolor naturalny
  • With locknut
    No
  • Multi seal area
    No
  • With strain relief
    No
  • Separable screw gland
    Yes
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
  • Nominal thread size metric/PG
    11
  • Wrench width
    19 mm
  • Material
    Metal
  • Surface protection
    Nickel-plated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -40 ... 100 °C
  • For Ex-zone gas
    None

Bulk packaging

A kind of package Sztuka
Quantity 50 pcs.
Weight (kg) 1,244
Width (m) 0,040
Length (m) 0,010
Depth (m) 0,030
