MWO 20M/11 cable gland E03DK-08010200301
local index:
RRR407ERGO
Catalog No:
E03DK-08010200301
Price:
4,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

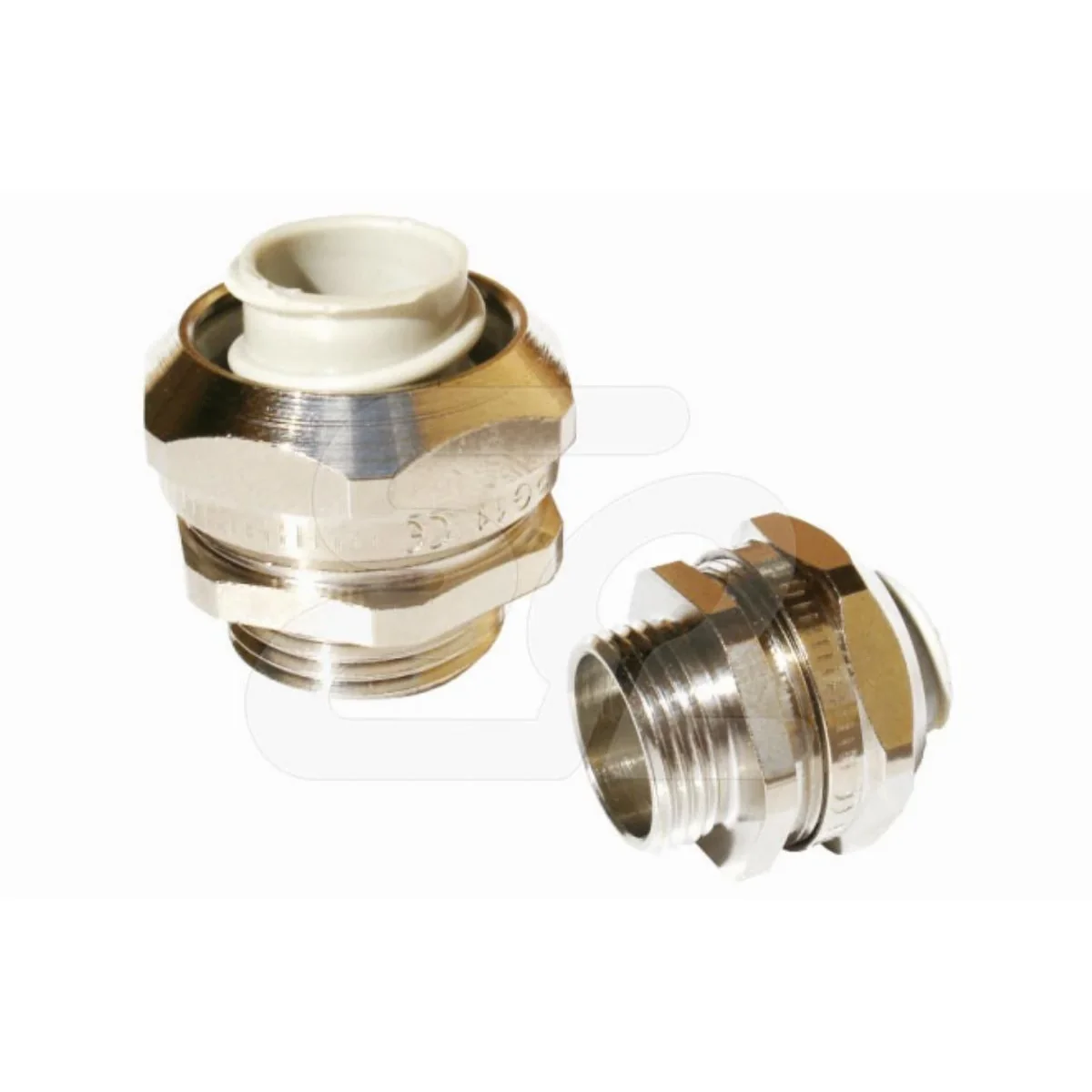

MWO 20M/11 cable gland
Technical data
-
Gross length0.28
-
Level of securityIP66
-
Gross height0.06
-
short nameMWD 20M/11
-
Gross width0.1
-
PKWIU25.99.29.0
Other technical data
-
Degree of protection (IP) conduit dependant66 ... 66
-
Revolving threadNo
-
Connection type screw connection to housingThread
-
One-pieceNo
-
Surface protectionNickel-plated
-
Max. outer diameter hose18 mm
-
Total height20 mm
-
Approved in combination with protective conduit CSANo
-
Approved in combination with protective conduit FINo
-
ModelStraight
-
Construction typeExternal thread
-
Thread connection sizeM20 x 1.5
-
Housing materialBrass
-
Lowest inner diameter hose14 mm
-
Thread length7 mm
-
Approved in combination with protective conduit according to DIN EN 61386-23No
-
Approved in combination with protective conduit ULNo
Manufacturer details
-
ManufacturerERGOM Zakład Aparatury Elektrycznej Sp. z o.o.
-
Address94-102 Łódź Nowe Sady 10
-
Phone number
-
E-mail
-
Tax identification number7260129071
-
GLN5900009930221
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 50 pcs. |
| Weight (kg) | 0,020 |
| Width (m) | 0,040 |
| Length (m) | 0,010 |
| Depth (m) | 0,020 |
