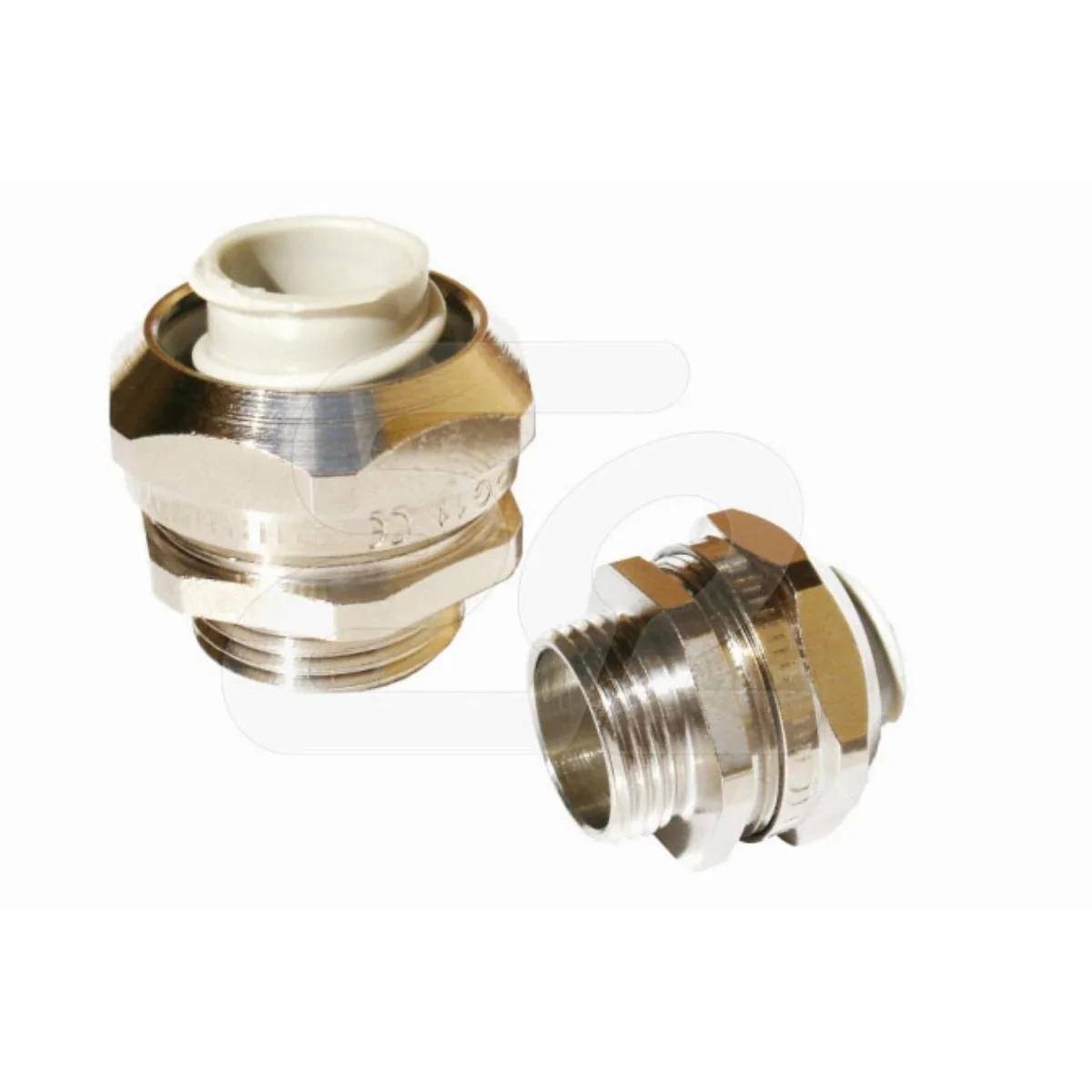

MWO 16 cable gland E03DK-08010100501

local index:
RRR356ERGO
Catalog No:
E03DK-08010100501
Manufacturer: ERGOM
Gross length: 0.2
short name: MWD 16
Level of security: IP66
Price:
4,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

MWO 16 cable gland

Technical data

  • Gross length
    0.2
  • Level of security
    IP66
  • Gross height
    0.15
  • short name
    MWD 16
  • Gross width
    0.15
  • PKWIU
    25.99.29.0

Other technical data

  • Degree of protection (IP) conduit dependant
    66 ... 66
  • Revolving thread
    No
  • Connection type screw connection to housing
    Thread
  • One-piece
    No
  • Surface protection
    Nickel-plated
  • Max. outer diameter hose
    22 mm
  • Total height
    22 mm
  • Approved in combination with protective conduit CSA
    No
  • Approved in combination with protective conduit FI
    No
  • Model
    Straight
  • Construction type
    External thread
  • Thread connection size
    PG16
  • Housing material
    Brass
  • Lowest inner diameter hose
    17 mm
  • Thread length
    8 mm
  • Approved in combination with protective conduit according to DIN EN 61386-23
    No
  • Approved in combination with protective conduit UL
    No

Bulk packaging

A kind of package Sztuka
Quantity 50 pcs.
Weight (kg) 0,030
Width (m) 0,050
Length (m) 0,010
Depth (m) 0,030
