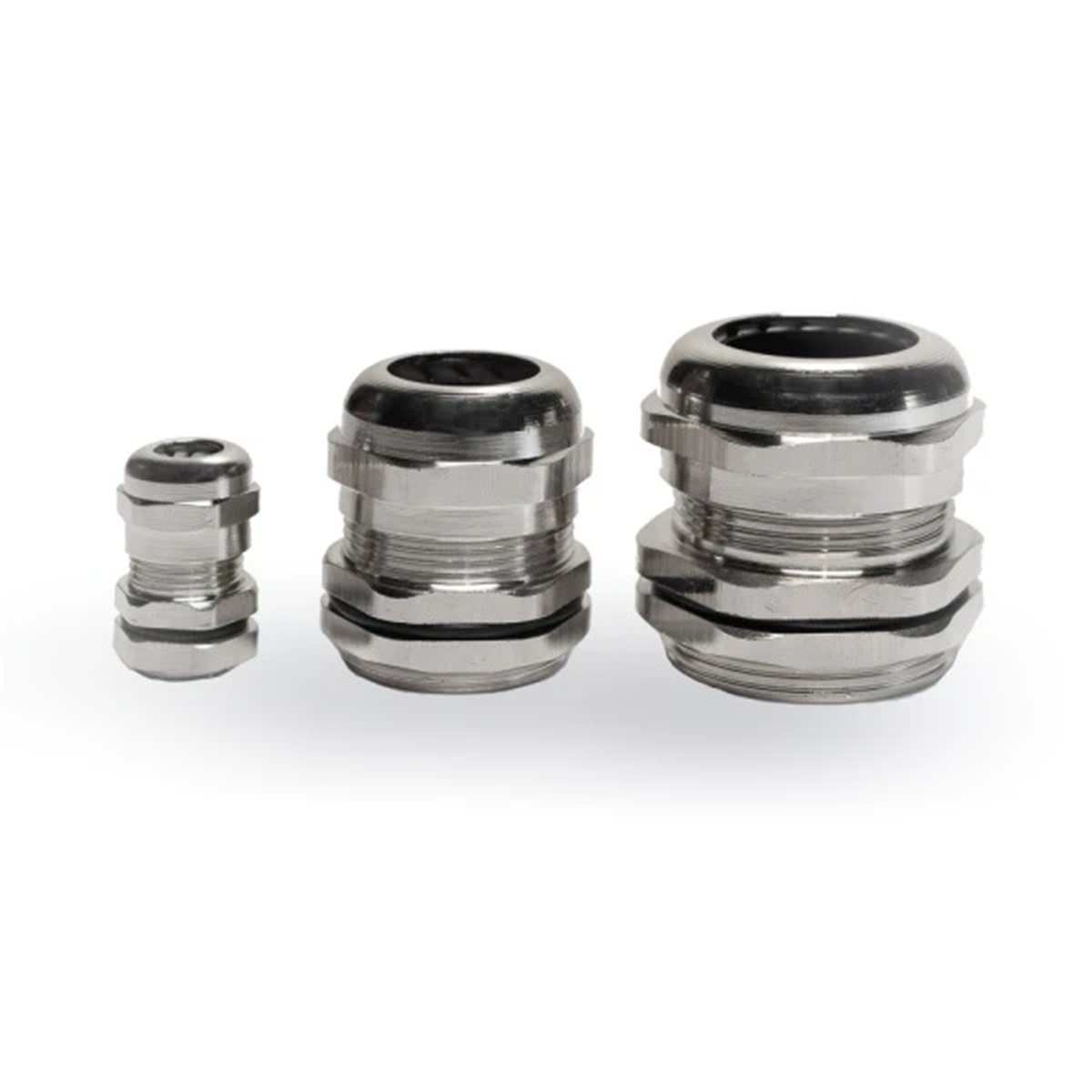

MPG-42 metal cable glands MPG-42

local index:
RRR149BORP
Catalog No:
MPG-42
EAN code:
5901924532224
Manufacturer: TRYTYT
Thread: PG42x1.5
Maximum operating temperature [°C]: 100
Material: Nickel-plated brass
Price:
25,30 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Metal glands are designed to seal cable passages through enclosures of electrical devices in industrial installations. Especially where it is required to ensure high mechanical resistance and chemical stability. Most often used in the chemical industry, production of measuring devices, etc.

Easy to assemble. They allow to achieve the degree of protection IP 68.

The series of types offered allows the mounting of cables with a diameter of 3 mm to 52 mm. Compliant with CE, RoHS and REACH

standards

Technical data

  • Thread
    PG42x1.5
  • Material
    Nickel-plated brass
  • Hole size [mm]
    54-54.2
  • Minimum operating temperature [°C]
    -40
  • Maximum operating temperature [°C]
    100
  • Wrench size
    57
  • Cable diameter range [mm]
    32-38
  • PKWIU
    24.44.26.0
