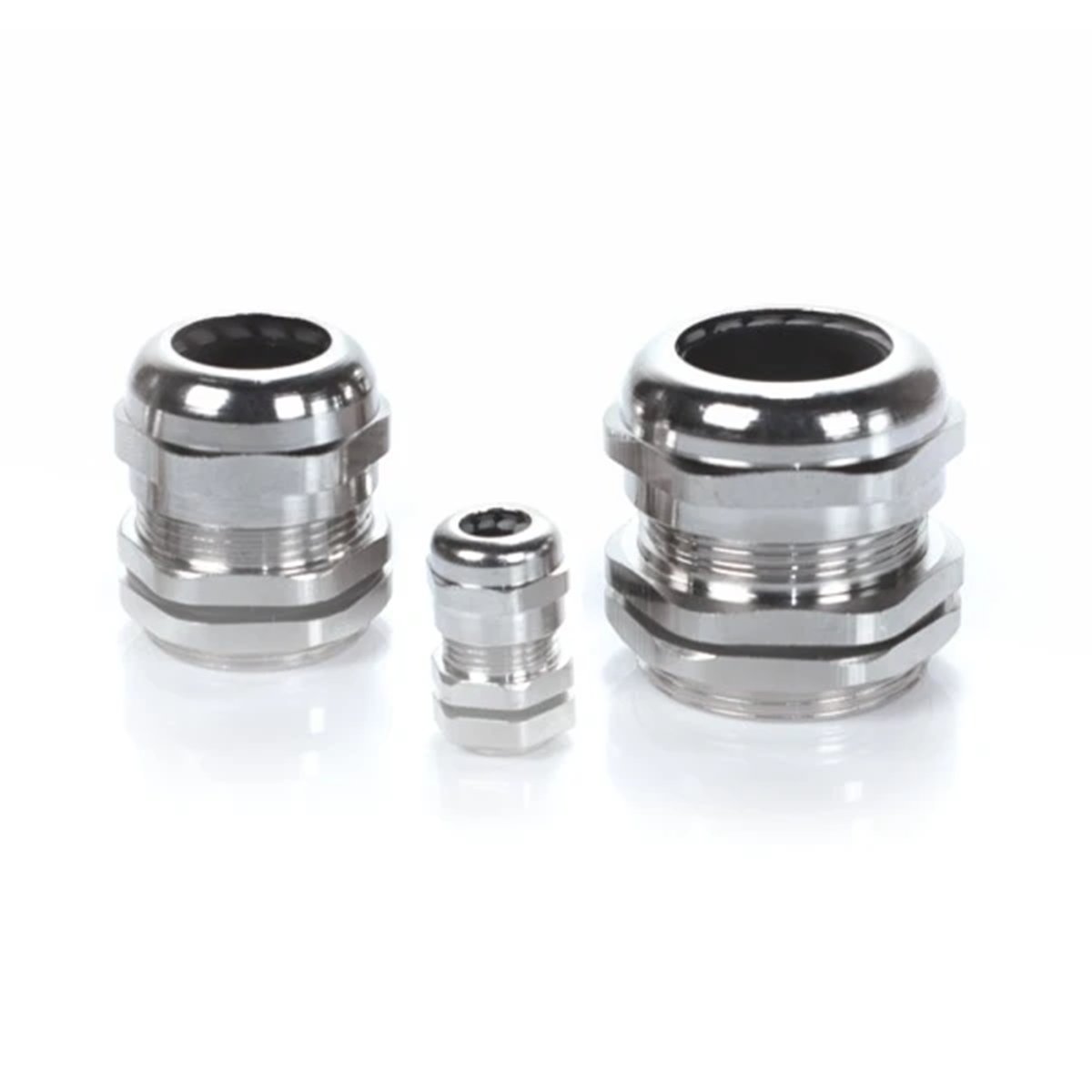

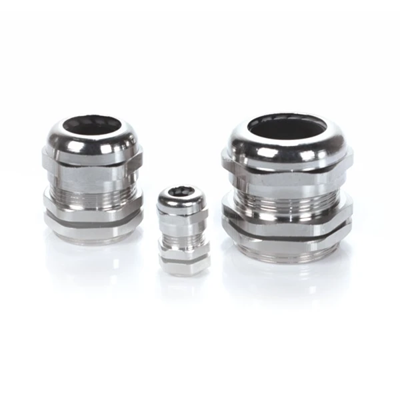

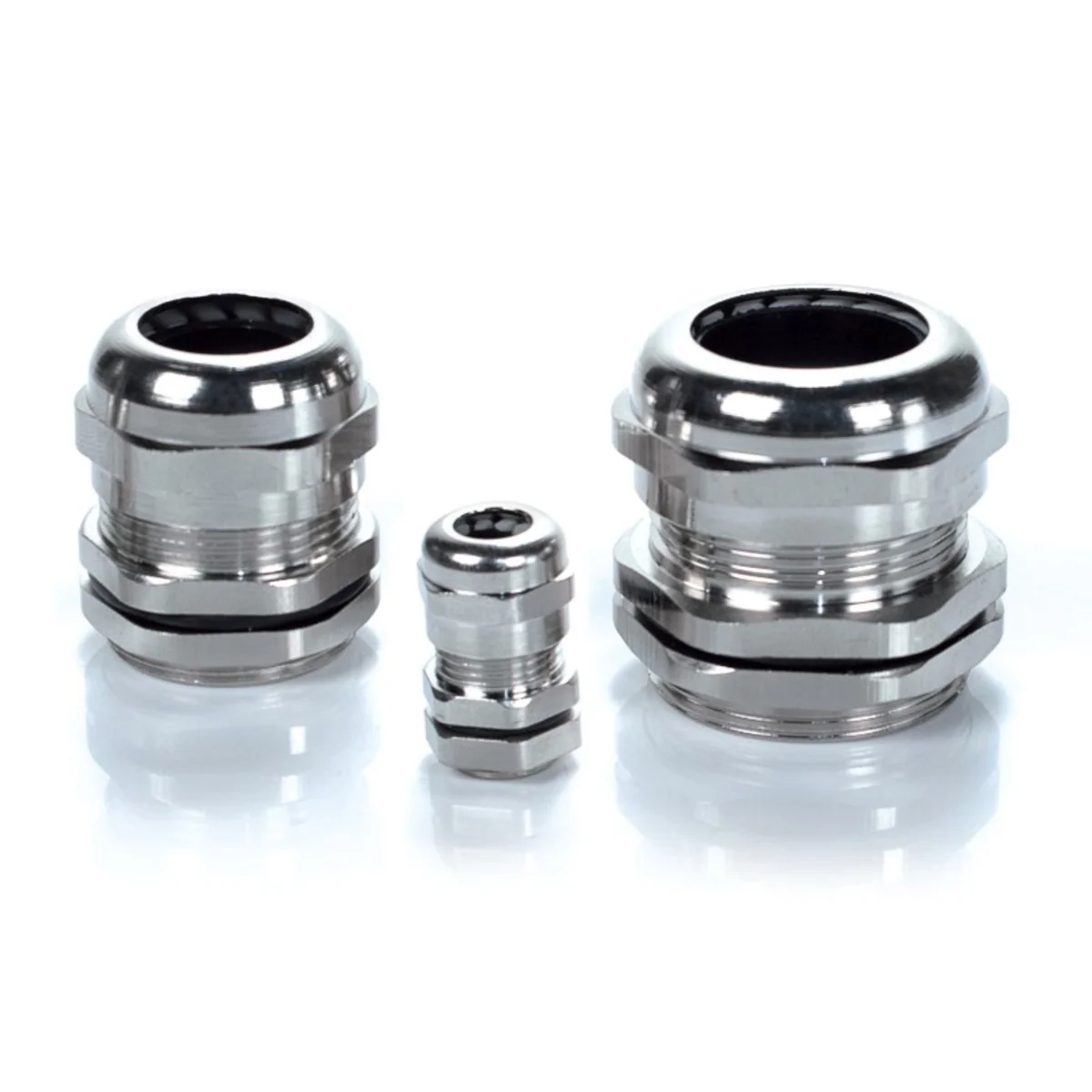

MMG-16 metal cable glands MMG-16

local index:
RRR007BORP
Catalog No:
MMG-16
EAN code:
5901924532255
Manufacturer: TRYTYT
Thread: M16x1.5
Maximum operating temperature [°C]: 100
Material: Nickel-plated brass
Price:
2,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 107 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Metal glands are designed to seal cable passages through enclosures of electrical devices in industrial installations. Especially where it is required to ensure high mechanical resistance and chemical stability. Most often used in the chemical industry, production of measuring devices, etc.

Easy to assemble. They allow to achieve the degree of protection IP 68.

The series of types offered allows the mounting of cables with a diameter of 3 mm to 52 mm. Compliant with CE, RoHS and REACH

standards

Technical data

  • Thread
    M16x1.5
  • Material
    Nickel-plated brass
  • Hole size [mm]
    16-16.2
  • Minimum operating temperature [°C]
    -40
  • Maximum operating temperature [°C]
    100
  • Wrench size
    18
  • Cable diameter range [mm]
    4-8
  • PKWIU
    24.44.26.0
