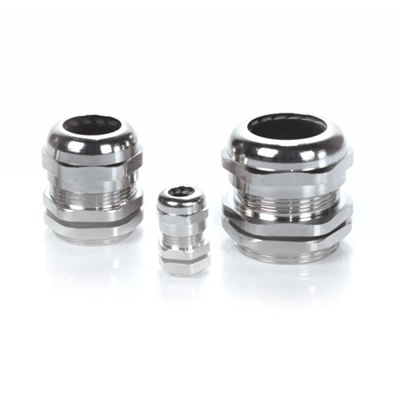

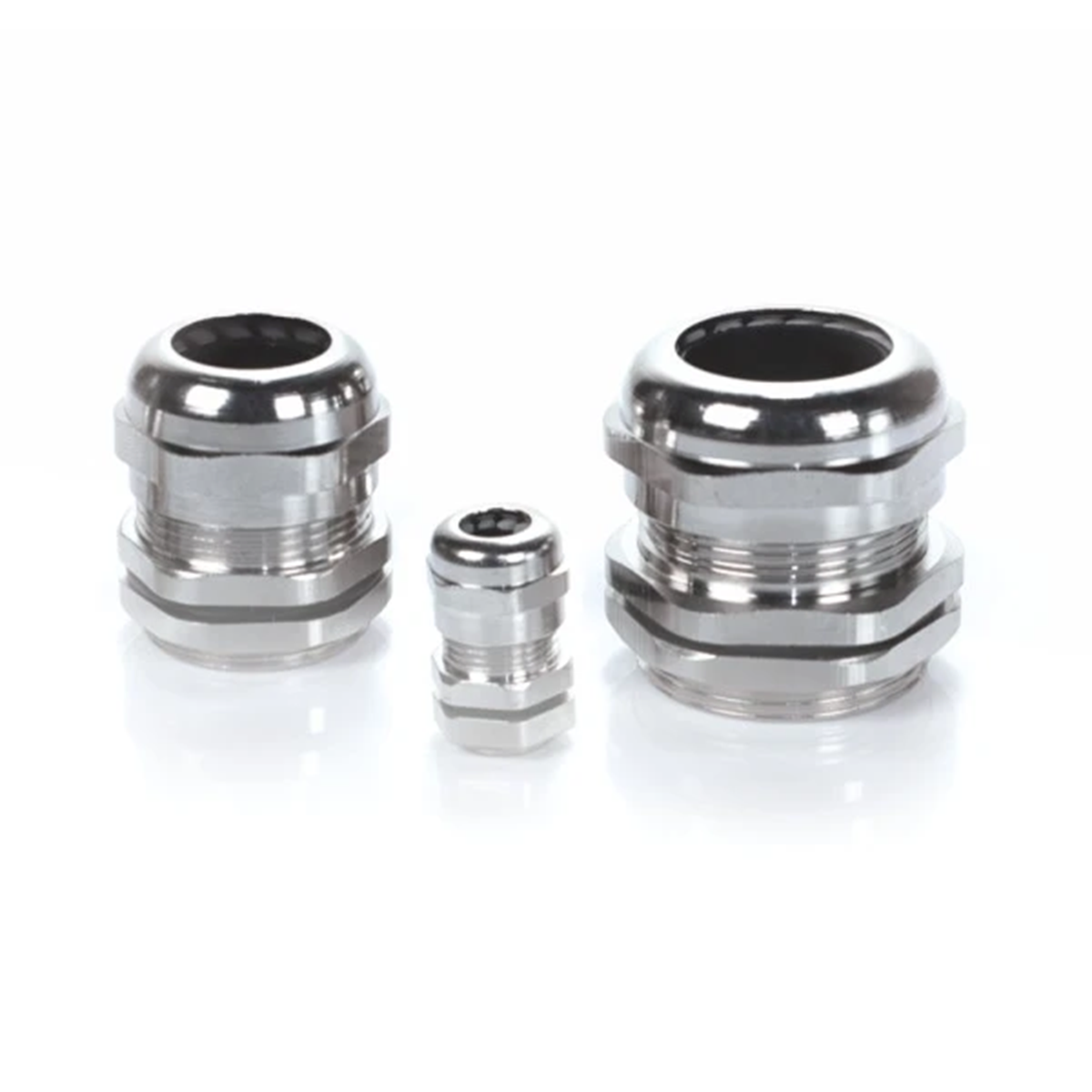

MMG-12 metal cable glands MMG-12

Indice locale:
RRR127BORP
Numero di catalogo:
MMG-12
Codice EAN:
5901924532248
Produttore: TRYTYT
Thread: M12x1.5
Maximum operating temperature [°C]: 100
Material: Nickel-plated brass
Prezzo:
1,94 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Accessibile 74 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Metal glands are designed to seal cable passages through enclosures of electrical devices in industrial installations. Especially where it is required to ensure high mechanical resistance and chemical stability. Most often used in the chemical industry, production of measuring devices, etc.

Easy to assemble. They allow to achieve the degree of protection IP 68.

The series of types offered allows the mounting of cables with a diameter of 3 mm to 52 mm. Compliant with CE, RoHS and REACH

standards

Dati tecnici

  • Thread
    M12x1.5
  • Material
    Nickel-plated brass
  • Hole size [mm]
    12-12.2
  • Minimum operating temperature [°C]
    -40
  • Maximum operating temperature [°C]
    100
  • Wrench size
    14
  • Cable diameter range [mm]
    3-6.5
  • PKWIU
    24.44.26.0

Dettagli del produttore

  • Produttore
    TRYTYT Sp. z o.o.
  • Indirizzo
    43-382 Bielsko-Biała Horeszków 8 Polska
