MG-25 cable gland for cable dimensions (13-18mm) MG-25

local index:
RRR044BORP
Catalog No:
MG-25
EAN code:
8595055701627
Manufacturer: TRYTYT
Color: Gray
Maximum operating temperature [°C]: 85
Material: Polyamide
Price:
0,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

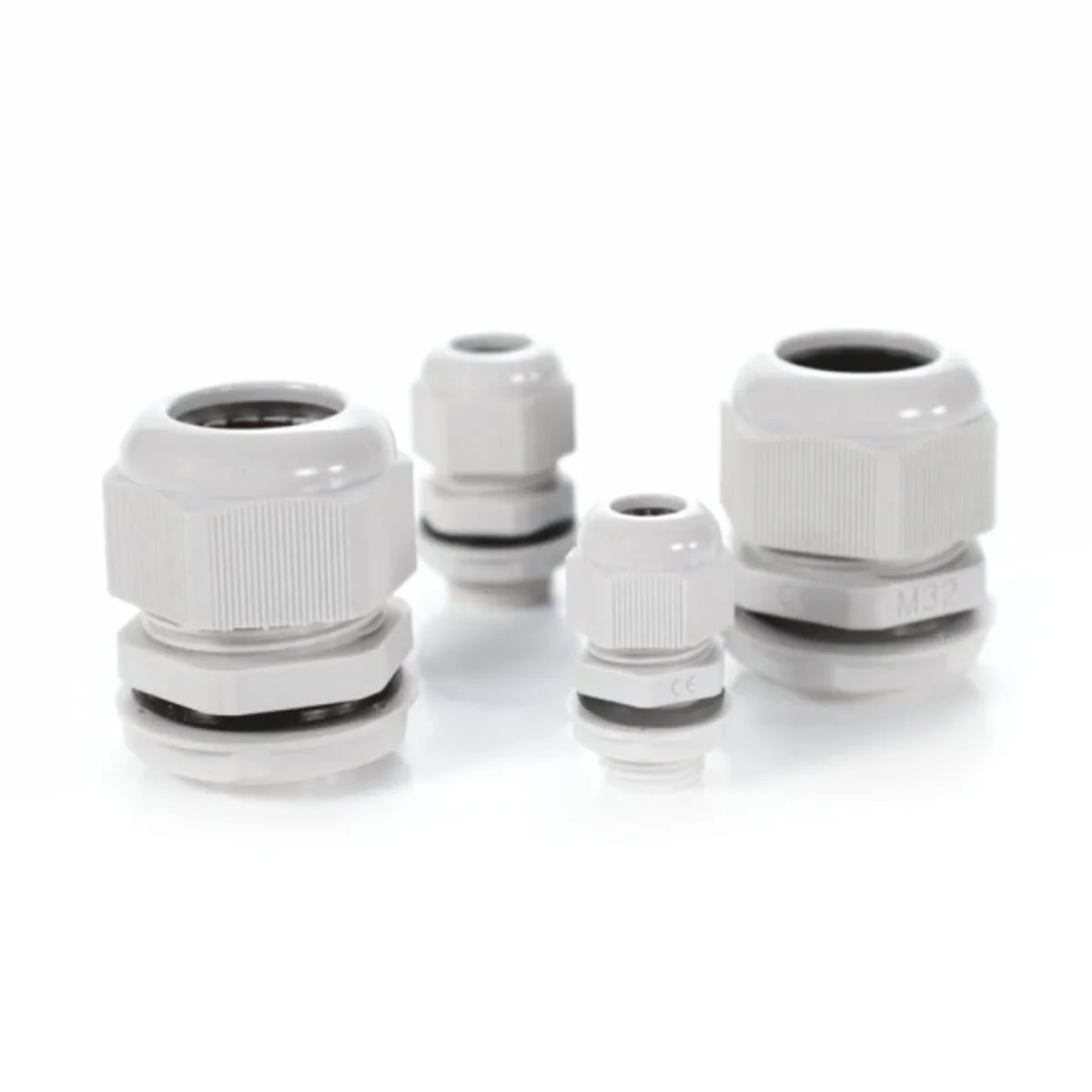

MG cable glands (with metric thread) designed to seal cable passages through enclosures of electrical devices. Made of polyamide 6.6 - a material resistant to weather conditions, at the same time very durable, self-extinguishing, free from halogens and phosphorus. MG cable glands do not contain silicone additives.

The special design of the gland prevents twisting of the wires inside the cable. Easy to assemble.

They allow to achieve the IP 68 degree of protection (which was confirmed by a certificate from EZU).

The series of types offered allows the mounting of cables with a diameter of 3 mm to 44 mm. Offered complete with gasket and nut.

Technical data

  • Color
    Gray
  • Material
    Polyamide
  • Minimum diameter [mm]
    13
  • Cable dimensions [mm]
    13-18
  • Accurate color
    light gray
  • Maximum operating temperature [°C]
    85
  • Maximum diameter [mm]
    18
  • Handle
    metric
  • Minimum operating temperature [°C]
    -40
  • PKWIU
    22.21.29.0
