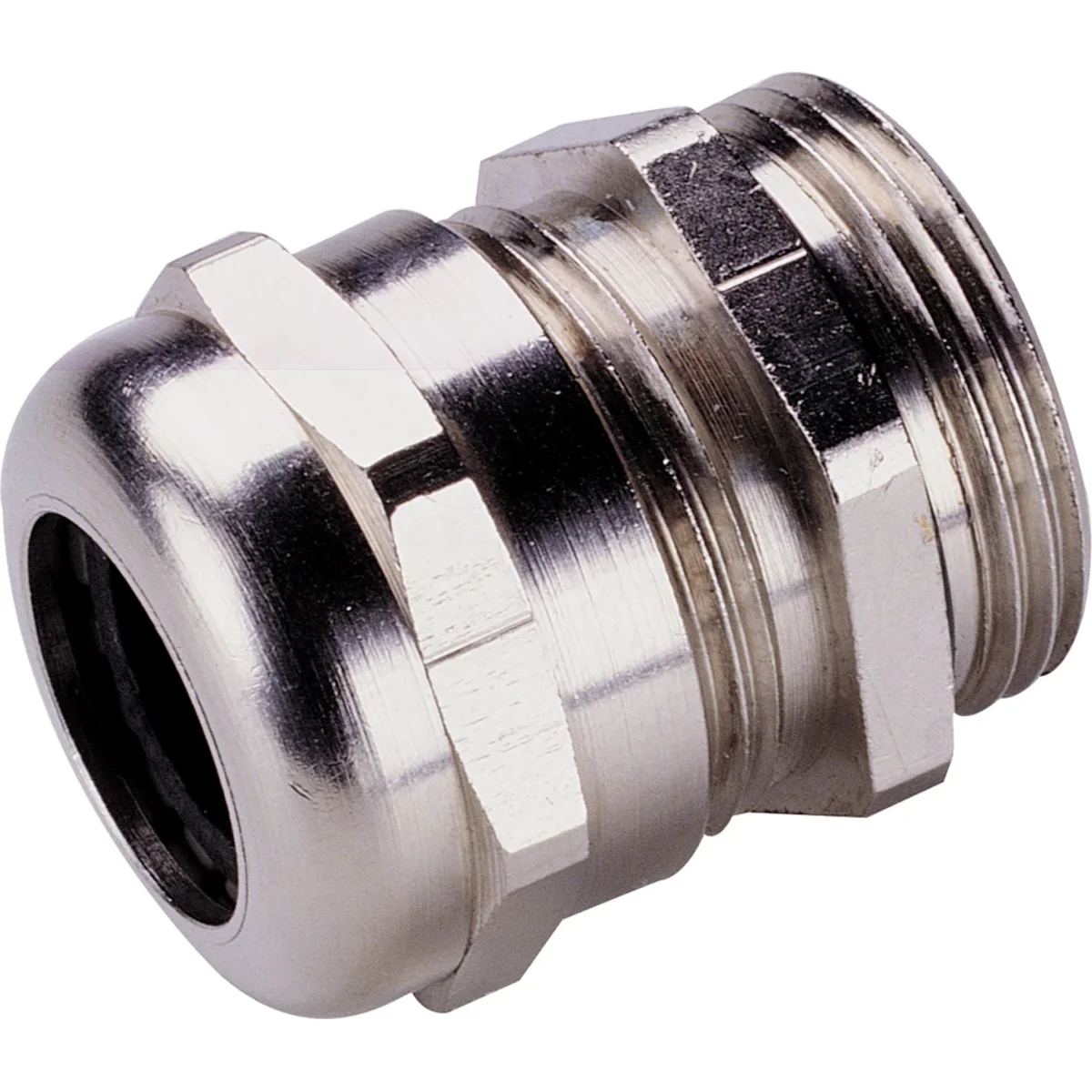

METAL GLAND IP68 ISO 40 095507

Index local:
RRR297LEGR
Numéro de catalogue:
095507
Code EAN:
3245060955076
Producteur: LEGRAND
Prix:
188,28 zł
gross / pcs.
(y compris la TVA 23%)
2 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Données techniques

Autres données techniques

  • Thread type
    PG
  • Pitch thread
    1.41 mm
  • Wrench width
    22 mm
  • Suitable for cable diameter
    7 ... 13 mm
  • Surface protection
    Untreated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Separable screw gland
    No
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
  • Nominal thread size metric/PG
    13.5
  • Thread length
    6.5 mm
  • Hexagon angular dimension
    24 mm
  • Material
    Metal
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP68
  • Colour
    Colourless
  • With locknut
    No
  • Flat cable coupling
    No
  • Operating temperature
    -25 ... 85 °C
  • For Ex-zone gas
    None

Détails du fabricant

  • Producteur
    Legrand Polska Sp. z o.o.
  • Adresse
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska

Emballage en vrac

Une sorte de paquet Pudełko Karton Paleta
Quantité 5 pcs. 100 pcs. 500 pcs.
poids (kg) 0,567 11,628 58,140
Volume (m3) 0,001 0,023 0,462
Largeur (m) 0,100 0,260 1,200
Longueur (m) 0,050 0,220 0,385
Profondeur (m) 0,160 0,400 1,000
