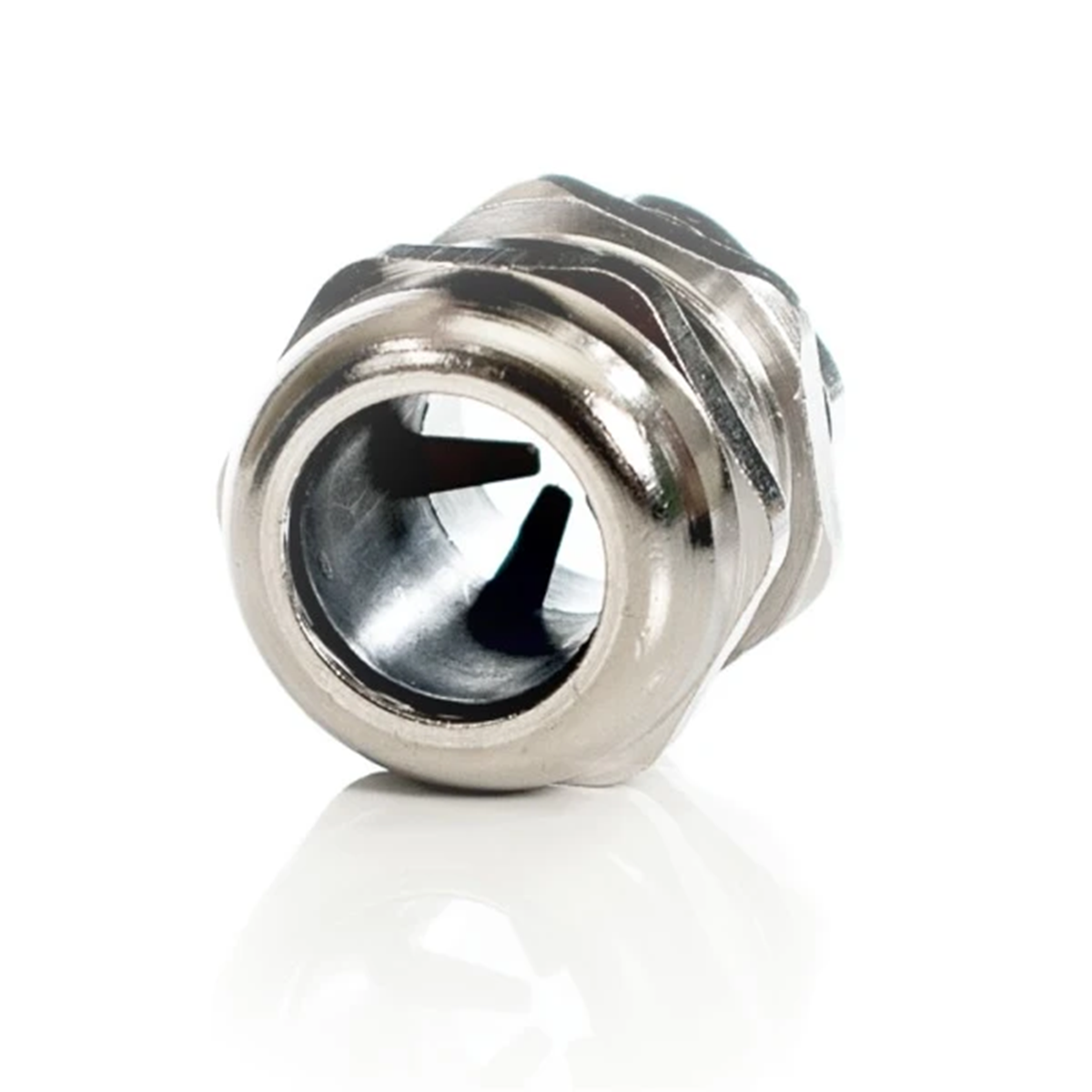

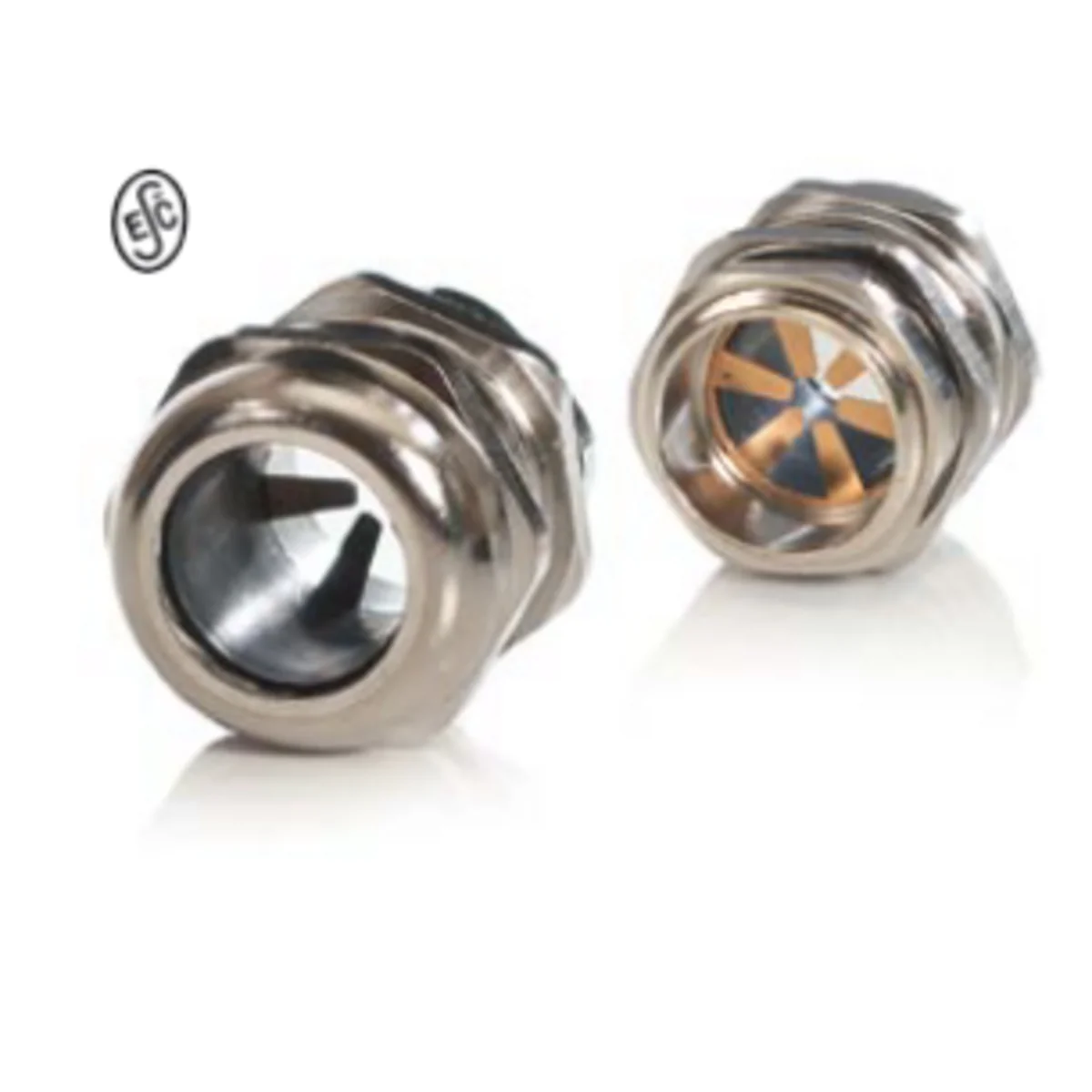

Metal cable glands for MPG-42-EMC shielded cables MPG-42EMC

Indice locale:
RRR150BORP
Numero di catalogo:
MPG-42EMC
Codice EAN:
5901924534808
Produttore: TRYTYT
Thread: PG42x1.5
Maximum operating temperature [°C]: 100
Material: Nickel-plated brass
Prezzo:
132,11 zł
gross / pezzi
(inclusa IVA 23%)
fino a 4 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Cable glands for shielded wires are used to ground the cable with the device into which it is inserted. The cable gland is also designed to seal the cable entry to the housing and protects against pulling the cable out of the device. EMC cable glands are easy to install, resistant to mechanical damage and difficult operating conditions. Cable glands for shielded cables offered by Trytyt ensure IP-68 protection. EMC series cable glands are most often used in automation, control, electrical installations, machine and device construction, robotics, vehicle production, shipbuilding and railway industry, and prefabrication of control cabinets. MMG and MPG cable glands - EMC series are resistant to water, dust, alcohols, solvents, salts, acids.

Dati tecnici

  • Thread
    PG42x1.5
  • Material
    Nickel-plated brass
  • Hole size [mm]
    54-54.2
  • Cable diameter range [mm]
    32-38
  • PKWIU
    24.44.26.0
  • Maximum operating temperature [°C]
    100
  • Wrench size
    57
  • Level of security
    IP68
  • Minimum operating temperature [°C]
    -40

Dettagli del produttore

  • Produttore
    TRYTYT Sp. z o.o.
  • Indirizzo
    43-382 Bielsko-Biała Horeszków 8 Polska
