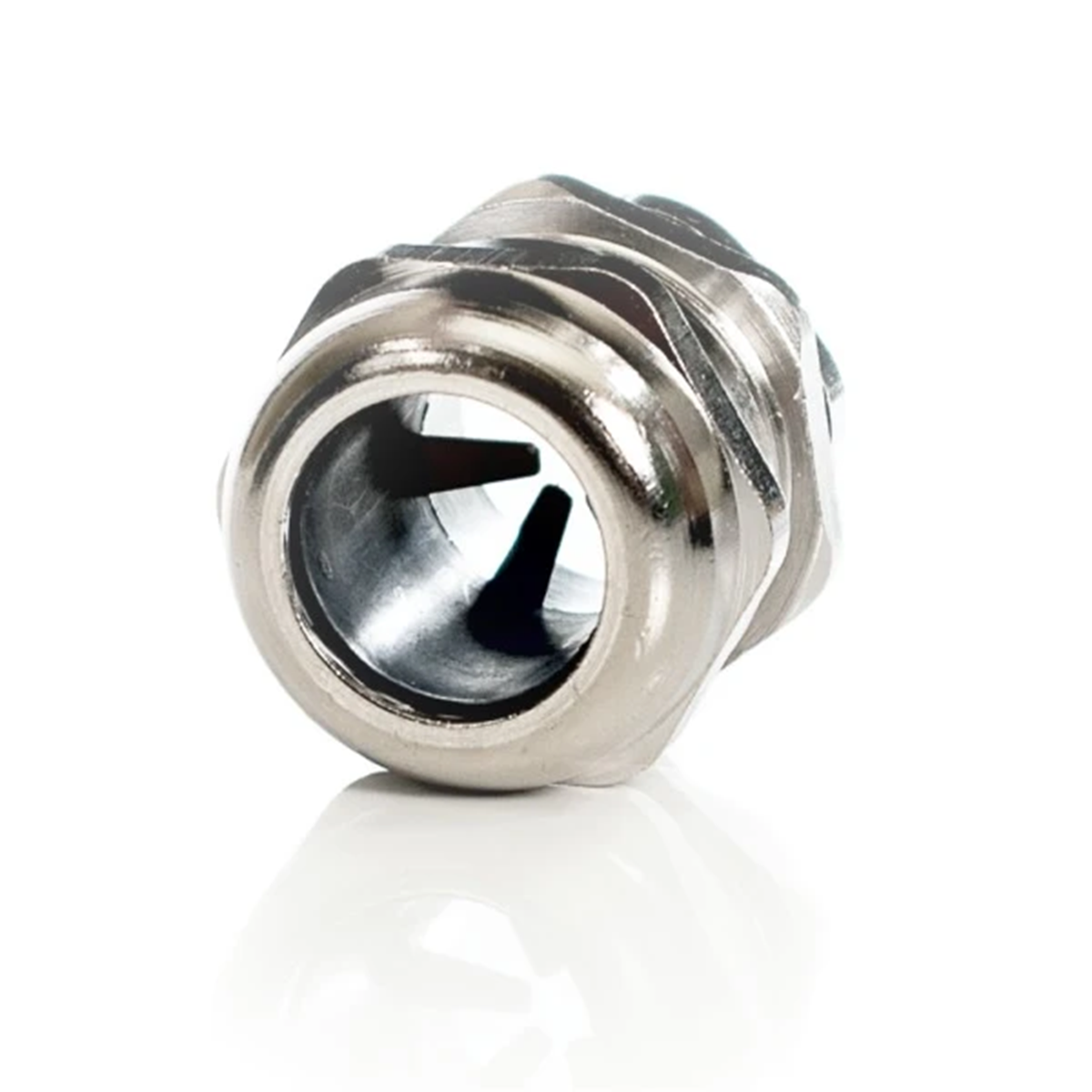

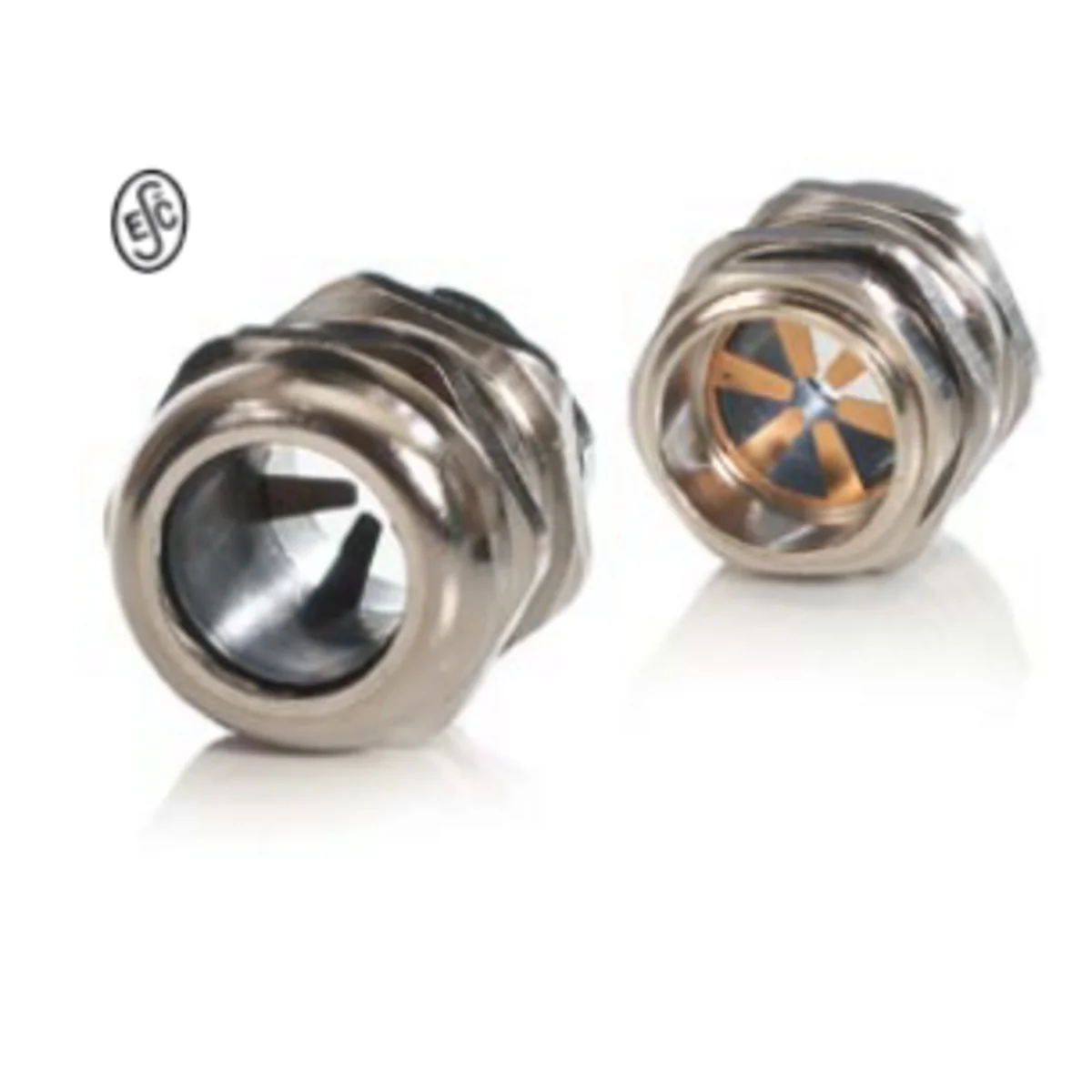

Metal cable glands for MPG-36-EMC shielded cables MPG-36EMC

local index:
RRR148BORP
Catalog No:
MPG-36EMC
EAN code:
5901924534792
Manufacturer: TRYTYT
Thread: PG36x1.5
Maximum operating temperature [°C]: 100
Material: Nickel-plated brass
Price:
21,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cable glands for shielded wires are used to ground the cable with the device into which it is inserted. The cable gland is also designed to seal the cable entry to the housing and protects against pulling the cable out of the device. EMC cable glands are easy to install, resistant to mechanical damage and difficult operating conditions. Cable glands for shielded cables offered by Trytyt ensure IP-68 protection. EMC series cable glands are most often used in automation, control, electrical installations, machine and device construction, robotics, vehicle production, shipbuilding and railway industry, and prefabrication of control cabinets. MMG and MPG cable glands - EMC series are resistant to water, dust, alcohols, solvents, salts, acids.

Technical data

  • Thread
    PG36x1.5
  • Material
    Nickel-plated brass
  • Hole size [mm]
    47-47.2
  • Cable diameter range [mm]
    25-33
  • PKWIU
    24.44.26.0
  • Maximum operating temperature [°C]
    100
  • Wrench size
    50
  • Level of security
    IP68
  • Minimum operating temperature [°C]
    -40
