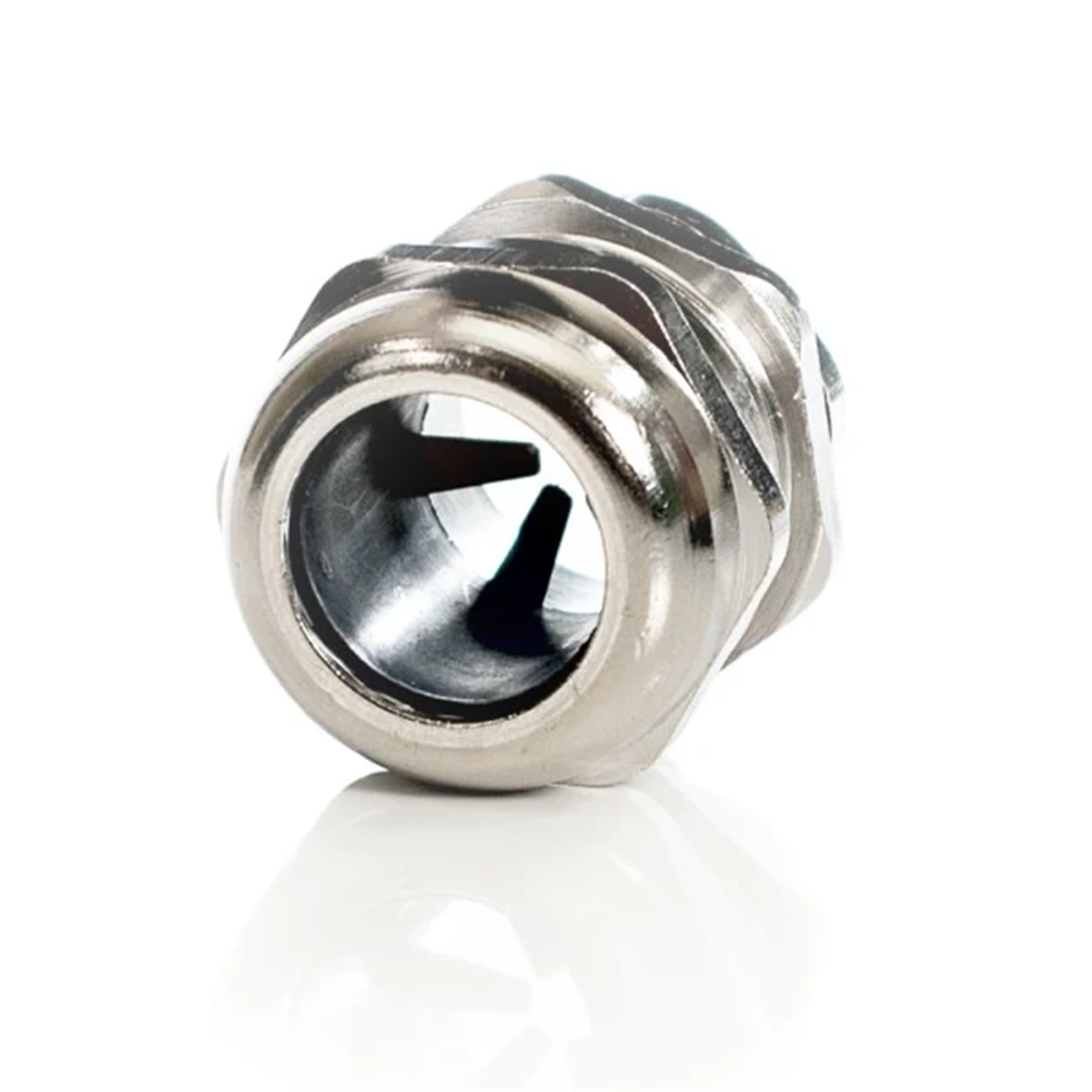

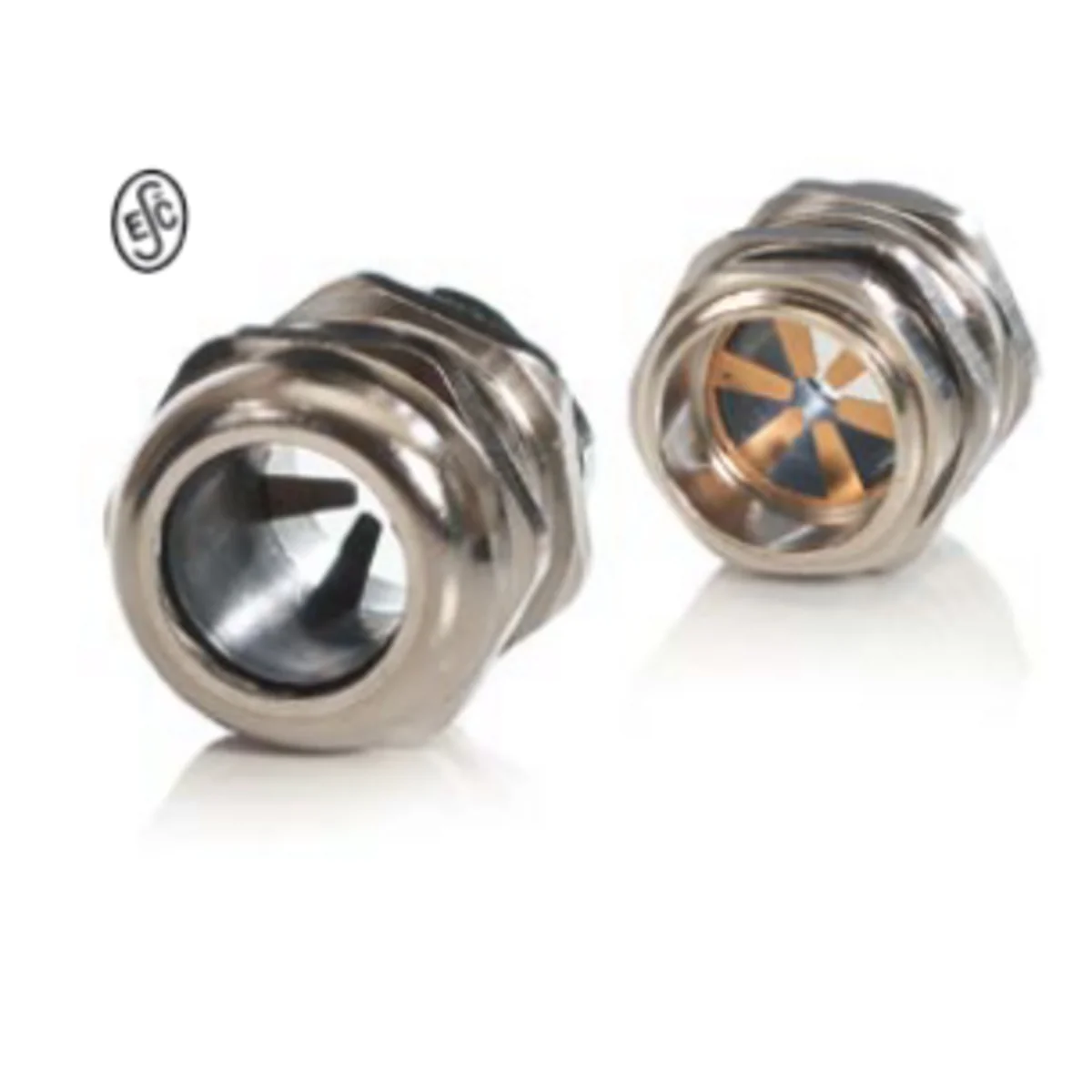

Metal cable glands for MPG-21-EMC shielded cables MPG-21EMC

local index:
RRR144BORP
Catalog No:
MPG-21EMC
EAN code:
5901924534051
Price:
6,65 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Cable glands for shielded wires are used to ground the cable with the device into which it is inserted. The cable gland is also designed to seal the cable entry to the housing and protects against pulling the cable out of the device. EMC cable glands are easy to install, resistant to mechanical damage and difficult operating conditions. Cable glands for shielded cables offered by Trytyt ensure IP-68 protection. EMC series cable glands are most often used in automation, control, electrical installations, machine and device construction, robotics, vehicle production, shipbuilding and railway industry, and prefabrication of control cabinets. MMG and MPG cable glands - EMC series are resistant to water, dust, alcohols, solvents, salts, acids.

Technical data

  • Thread
    PG21x1.5
  • Material
    Nickel-plated brass
  • Hole size [mm]
    28.3-28.5
  • Cable diameter range [mm]
    13-18
  • Maximum operating temperature [°C]
    100
  • Wrench size
    thirty
  • Level of security
    IP68
  • Minimum operating temperature [°C]
    -40
