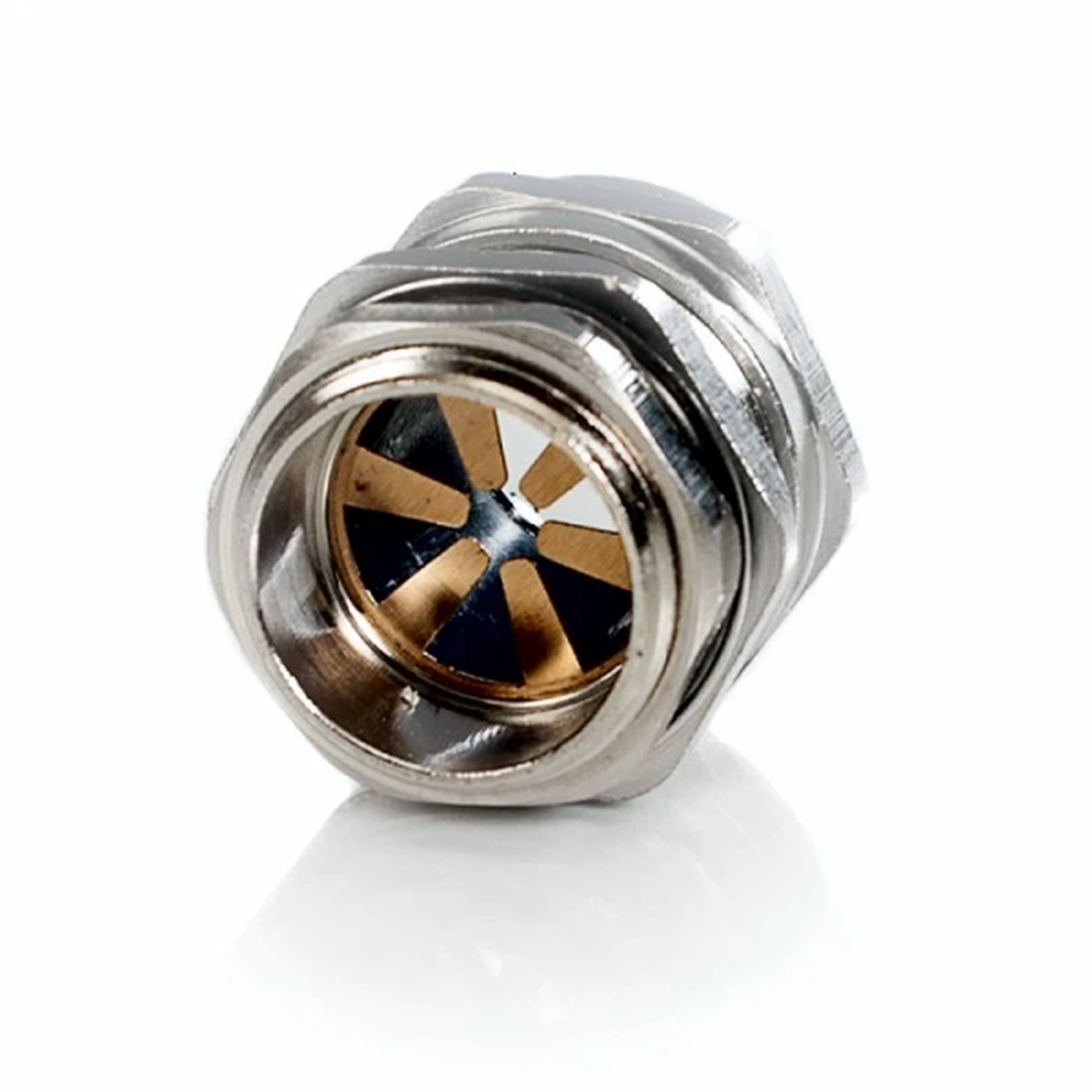

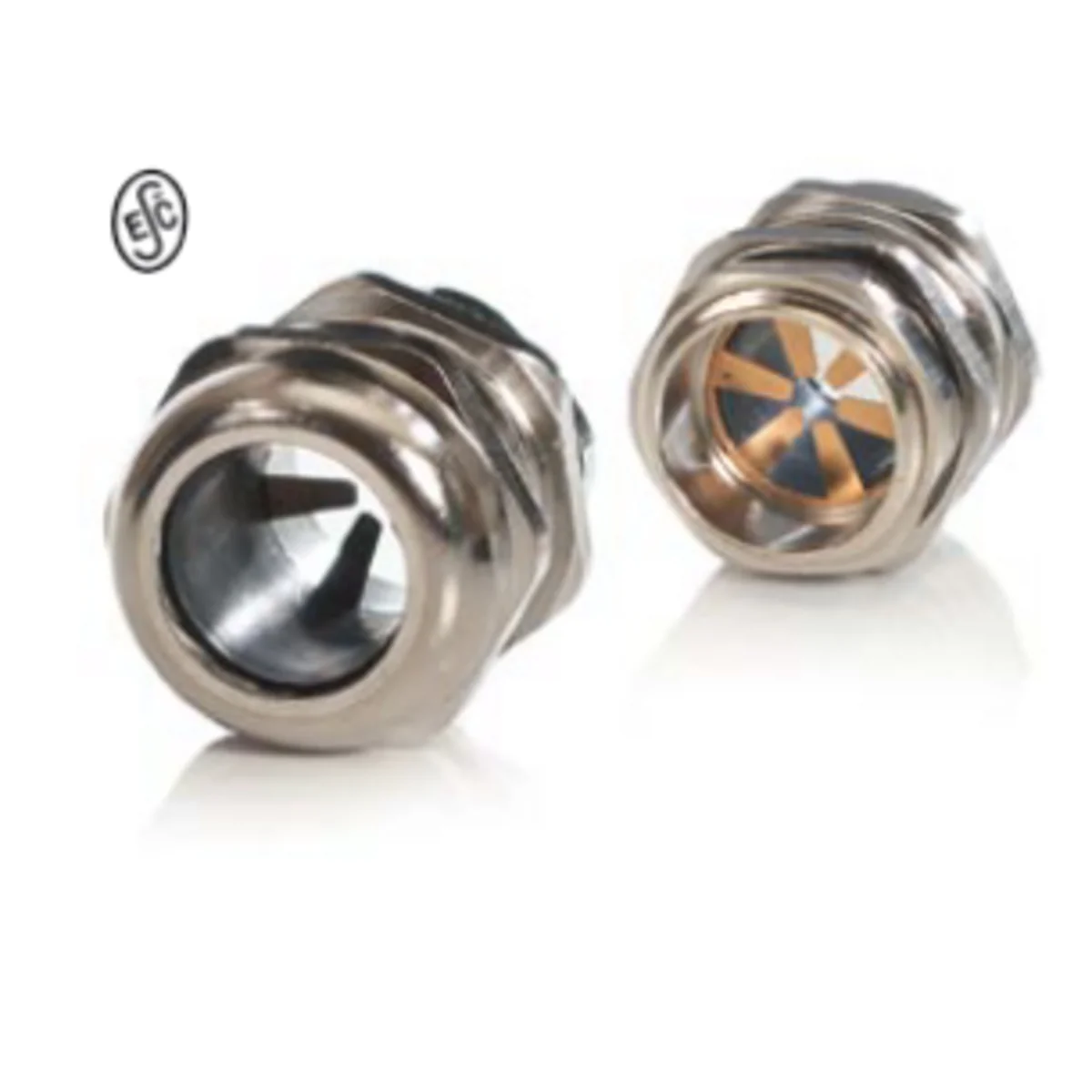

Metal cable glands for MMG-75-EMC shielded cables MMG-75EMC

Внутрішній артикул:
RRR139BORP
№ каталоговий:
MMG-75EMC
Код EAN:
5901924534822
Виробник: TRYTYT
Thread: M75x1.5
Maximum operating temperature [°C]: 100
Material: Nickel-plated brass
Ціна:
394,53 zł
gross / шт.
(з ПДВ 23%)
Доставка за 3 години
до 4 тижнів (робочі дні)
Самовивіз через 1 год
Кількість шт.
(багаторазовий:
1
)
Додати до запиту на пропозицію
Додати в буфер обміну
Роздрукувати

Опис товару

Cable glands for shielded wires are used to ground the cable with the device into which it is inserted. The cable gland is also designed to seal the cable entry to the housing and protects against pulling the cable out of the device. EMC cable glands are easy to install, resistant to mechanical damage and difficult operating conditions. Cable glands for shielded cables offered by Trytyt ensure IP-68 protection. EMC series cable glands are most often used in automation, control, electrical installations, machine and device construction, robotics, vehicle production, shipbuilding and railway industry, and prefabrication of control cabinets. MMG and MPG cable glands - EMC series are resistant to water, dust, alcohols, solvents, salts, acids.

Технічні дані

  • Thread
    M75x1.5
  • Material
    Nickel-plated brass
  • Hole size [mm]
    75-75.2
  • Cable diameter range [mm]
    42-52
  • PKWIU
    24.44.26.0
  • Maximum operating temperature [°C]
    100
  • Wrench size
    77
  • Level of security
    IP68
  • Minimum operating temperature [°C]
    -40
