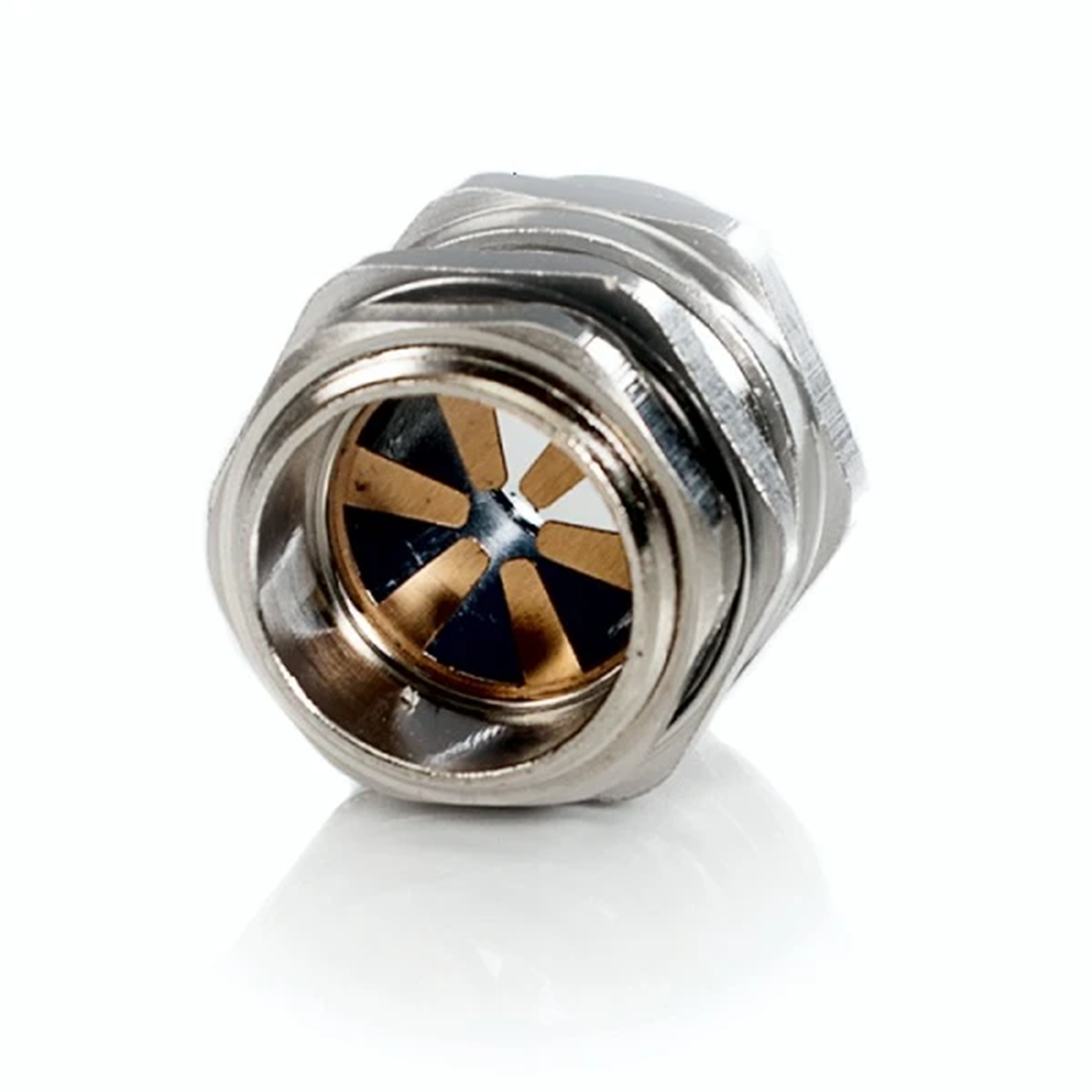

Metal cable glands for MMG-50-EMC shielded cables MMG-50EMC

Lokaler Index:
RRR136BORP
Katalognummer:
MMG-50EMC
EAN-Code:
5901924533986
Hersteller: TRYTYT
Thread: M50x1.5
Maximum operating temperature [°C]: 100
Material: Nickel-plated brass
Preis:
31,49 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 4 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Cable glands for shielded wires are used to ground the cable with the device into which it is inserted. The cable gland is also designed to seal the cable entry to the housing and protects against pulling the cable out of the device. EMC cable glands are easy to install, resistant to mechanical damage and difficult operating conditions. Cable glands for shielded cables offered by Trytyt ensure IP-68 protection. EMC series cable glands are most often used in automation, control, electrical installations, machine and device construction, robotics, vehicle production, shipbuilding and railway industry, and prefabrication of control cabinets. MMG and MPG cable glands - EMC series are resistant to water, dust, alcohols, solvents, salts, acids.

Technische Daten

  • Thread
    M50x1.5
  • Material
    Nickel-plated brass
  • Hole size [mm]
    50-50.2
  • Cable diameter range [mm]
    27-35
  • PKWIU
    24.44.26.0
  • Maximum operating temperature [°C]
    100
  • Wrench size
    50/55
  • Level of security
    IP68
  • Minimum operating temperature [°C]
    -40

Hersteller-Details

  • Hersteller
    TRYTYT Sp. z o.o.
  • Adresse
    43-382 Bielsko-Biała Horeszków 8 Polska
