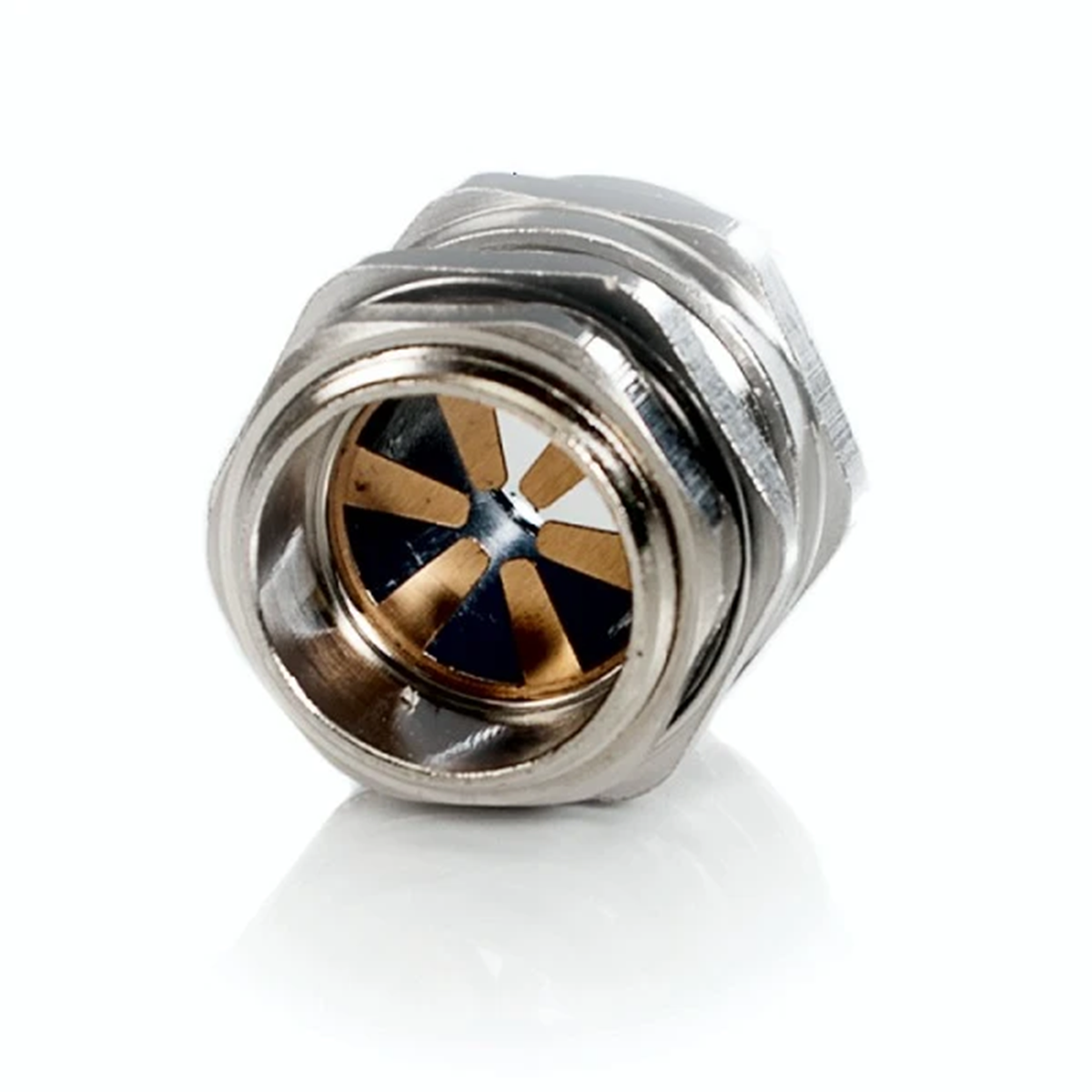

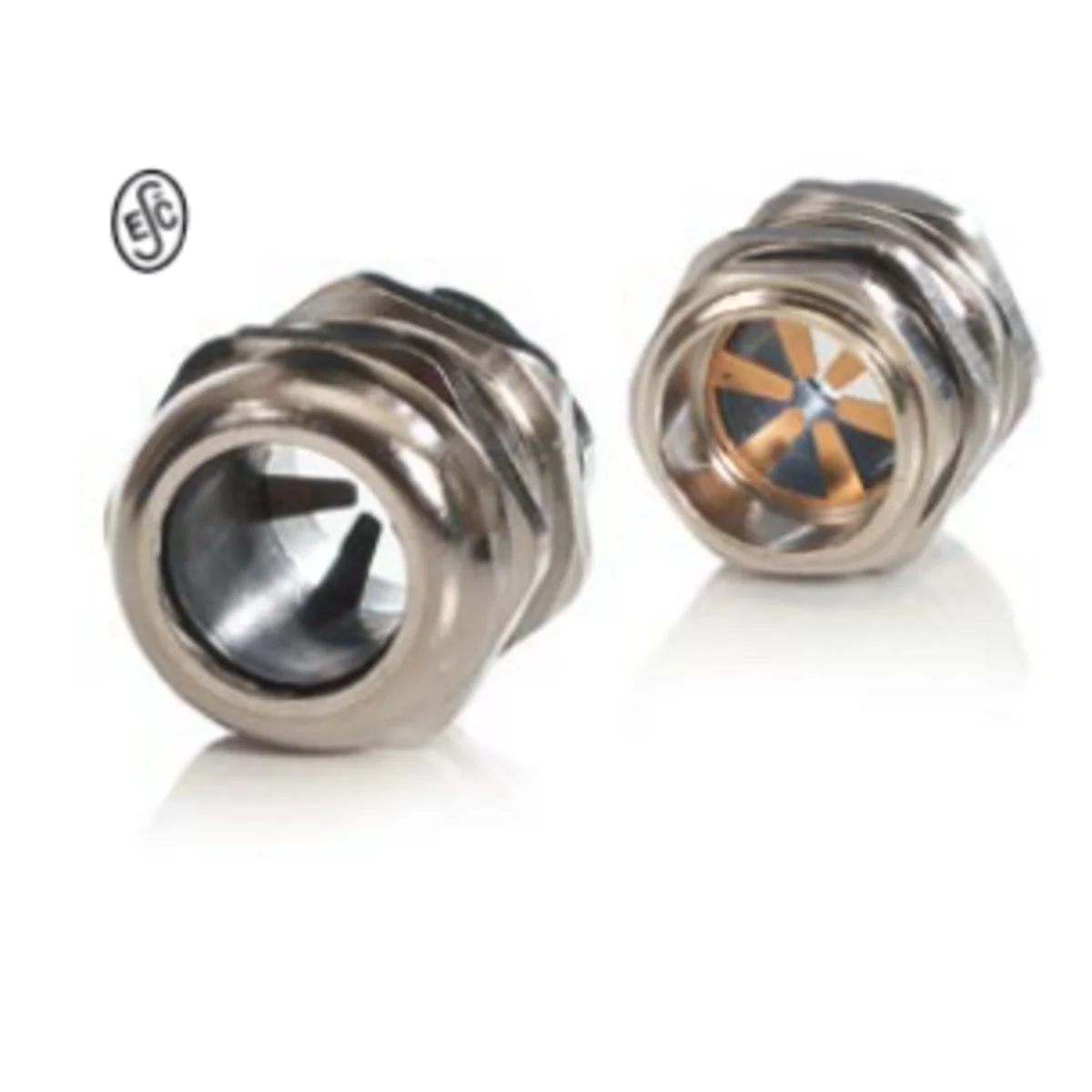

Metal cable glands for MMG-20-EMC shielded cables MMG-20EMC

Índice local:
RRR130BORP
Número de catálogo:
MMG-20EMC
Código EAN:
5901924533948
Fabricante: TRYTYT
Thread: M20x1.5
Maximum operating temperature [°C]: 100
Material: Nickel-plated brass
Precio:
15,34 zł
gross / uds.
(IVA incluido 23%)
Entrega en 3h
hasta 4 semanas (días laborables)
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Cable glands for shielded wires are used to ground the cable with the device into which it is inserted. The cable gland is also designed to seal the cable entry to the housing and protects against pulling the cable out of the device. EMC cable glands are easy to install, resistant to mechanical damage and difficult operating conditions. Cable glands for shielded cables offered by Trytyt ensure IP-68 protection. EMC series cable glands are most often used in automation, control, electrical installations, machine and device construction, robotics, vehicle production, shipbuilding and railway industry, and prefabrication of control cabinets. MMG and MPG cable glands - EMC series are resistant to water, dust, alcohols, solvents, salts, acids.

Datos técnicos

  • Thread
    M20x1.5
  • Material
    Nickel-plated brass
  • Hole size [mm]
    20-20.2
  • Cable diameter range [mm]
    6-12
  • PKWIU
    24.44.26.0
  • Maximum operating temperature [°C]
    100
  • Wrench size
    22
  • Level of security
    IP68
  • Minimum operating temperature [°C]
    -40

Detalles del fabricante

  • Fabricante
    TRYTYT Sp. z o.o.
  • Dirección
    43-382 Bielsko-Biała Horeszków 8 Polska
