MDW 13 cable gland E03DK-03010100403

local index:
RRR093ERGO
Catalog No:
E03DK-03010100403
Manufacturer: ERGOM
Gross length: 0.15
short name: MDW 13
Gross width: 0.1
Price:
2,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 10 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

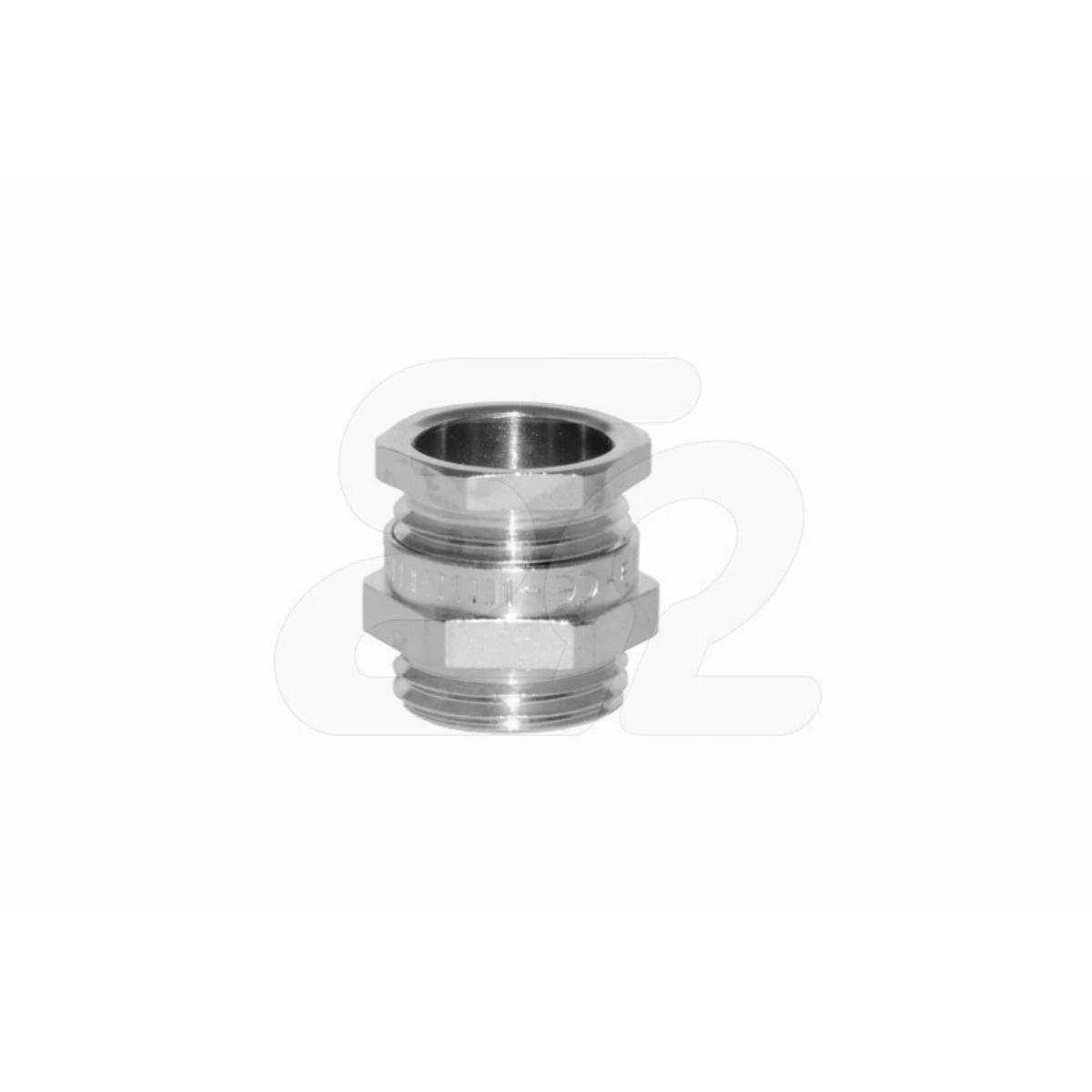

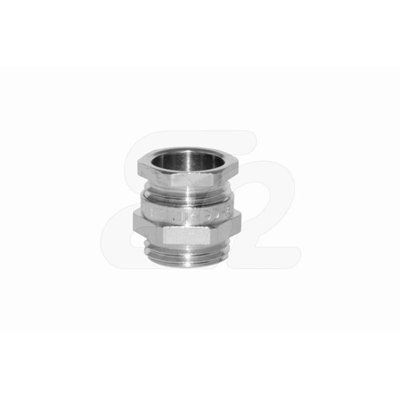

MDW 13 cable gland

Technical data

  • Gross length
    0.15
  • Gross width
    0.1
  • PKWIU
    25.99.29.0
  • short name
    MDW 13
  • Gross height
    0.1

Other technical data

  • Thread type
    PG
  • Thread length
    6 mm
  • Suitable for cable diameter
    8.5 ... 13.5 mm
  • Material quality
    Brass
  • Halogen free
    No
  • Degree of protection (IP)
    IP54
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -20 ... 80 °C
  • For Ex-zone gas
    None
  • Nominal thread size metric/PG
    13.5
  • Wrench width
    20 mm
  • Material
    Metal
  • Surface protection
    Nickel-plated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • With locknut
    No
  • Multi seal area
    No
  • With strain relief
    No
  • Separable screw gland
    Yes
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None

Bulk packaging

A kind of package Sztuka
Quantity 10 pcs.
Weight (kg) 0,020
