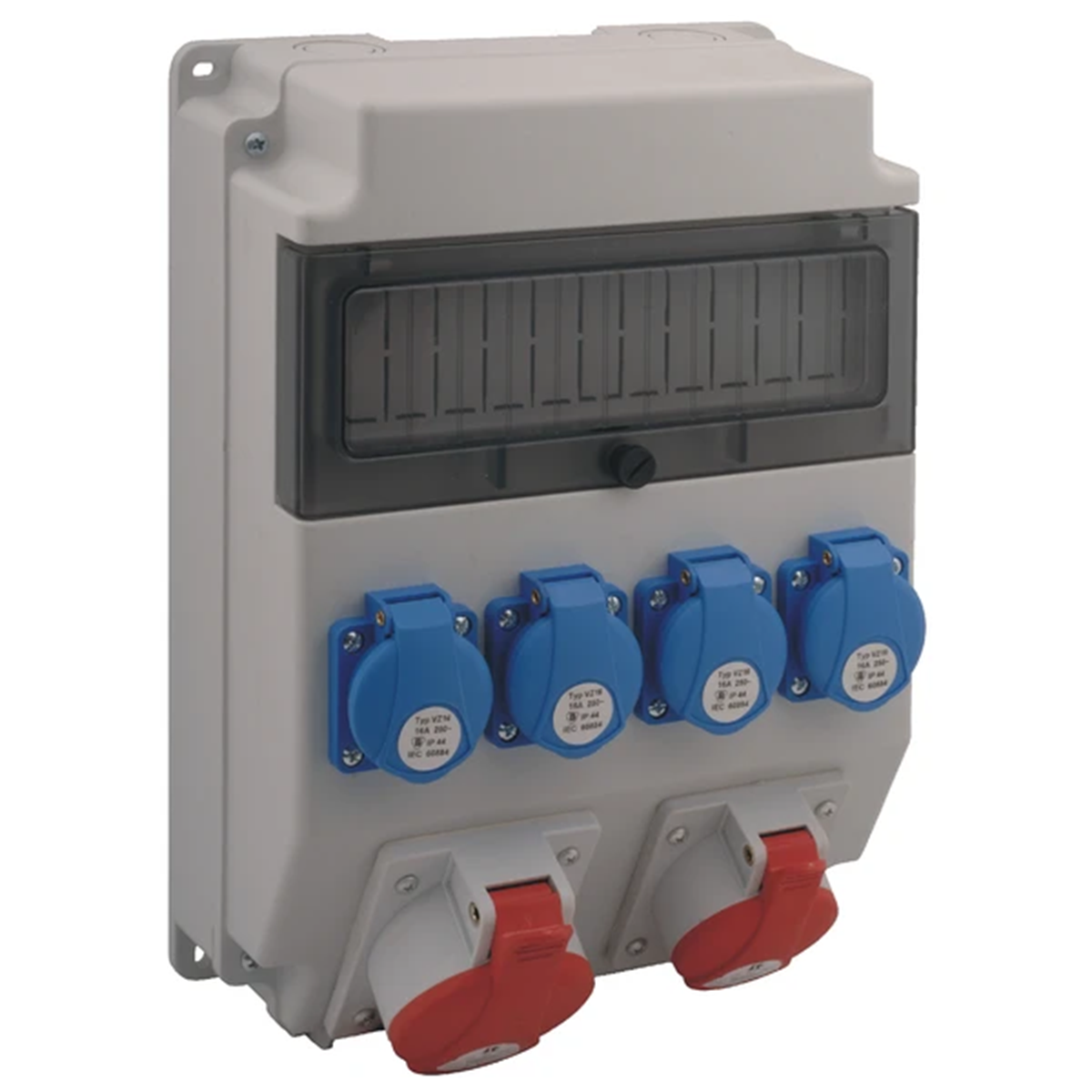

Low voltage switchgear without ROS-11 fuses ROS11\X-25

local index:
RIN012SPAM
Catalog No:
ROS11\X-25
EAN code:
5907723055872
Manufacturer: SPAMEL
Rated current [A]: 32
Level of security: IP44
Price:
95,58 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to a week (working days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The new ROS type switchboards have many versions of different configurations. The switchgears can be equipped with single and three-phase overcurrent circuit breakers, a power switch or a direction of rotation switch and various types of sockets. The ROS switchgear is characterized by a modern shape, and the latest technologies were used in its production.

Technical data

  • Rated current [A]
    32
  • Level of security
    IP44

Other technical data

  • Model
    Group distributor cabinet
  • Rated current
    32 A
  • Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
    0
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    2
  • Main switch
    None

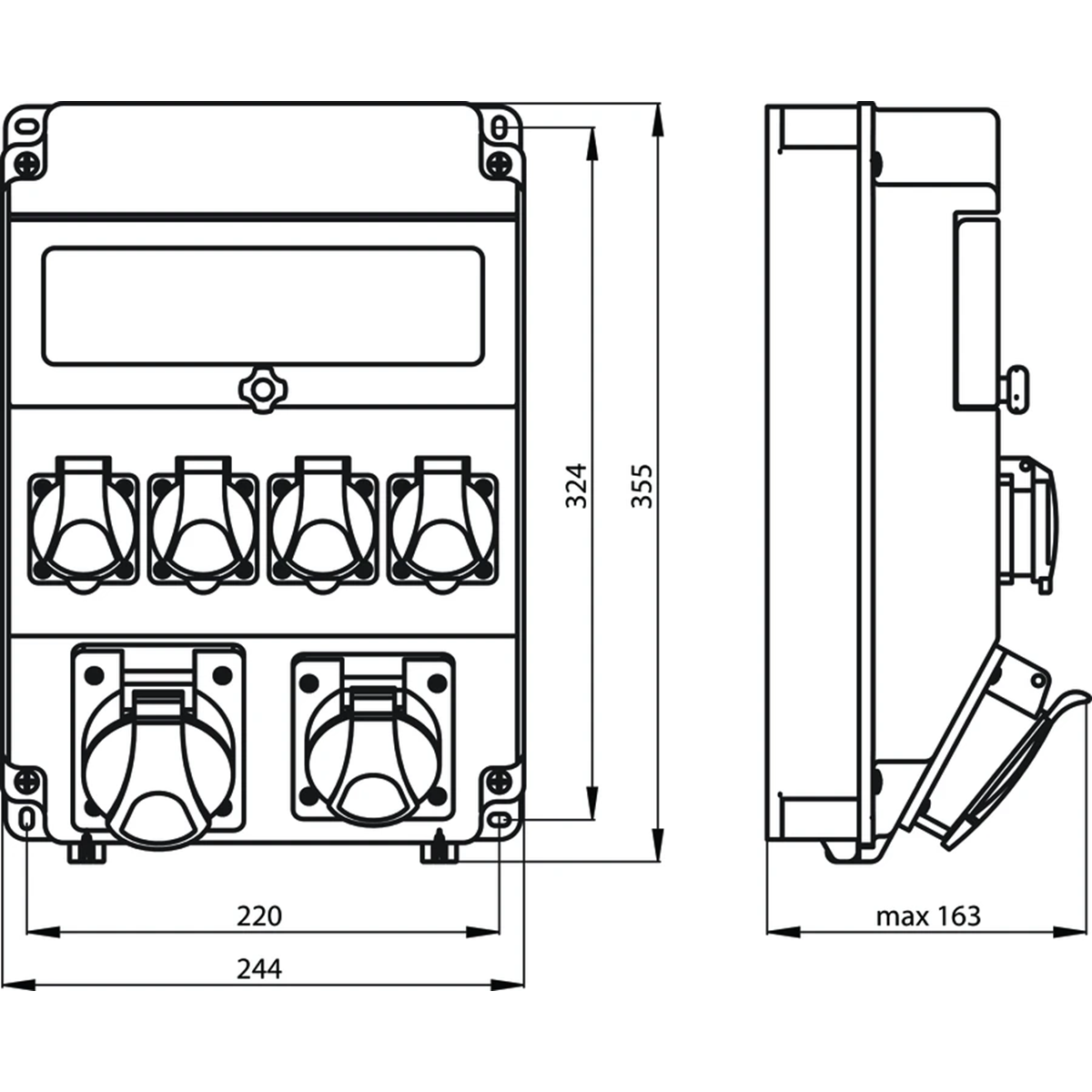

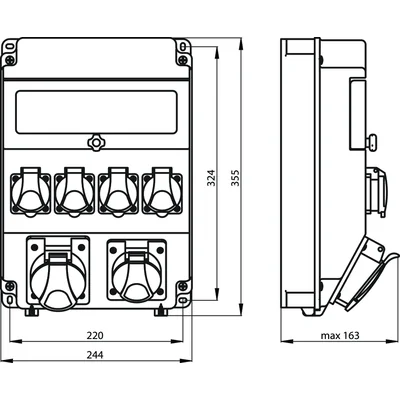

  • Height
    355 mm
  • Rated voltage
    230/400 V
  • Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
    0
  • Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE)
    0
  • Number of meter panels
    0
  • Width
    244 mm
  • Depth
    163 mm
