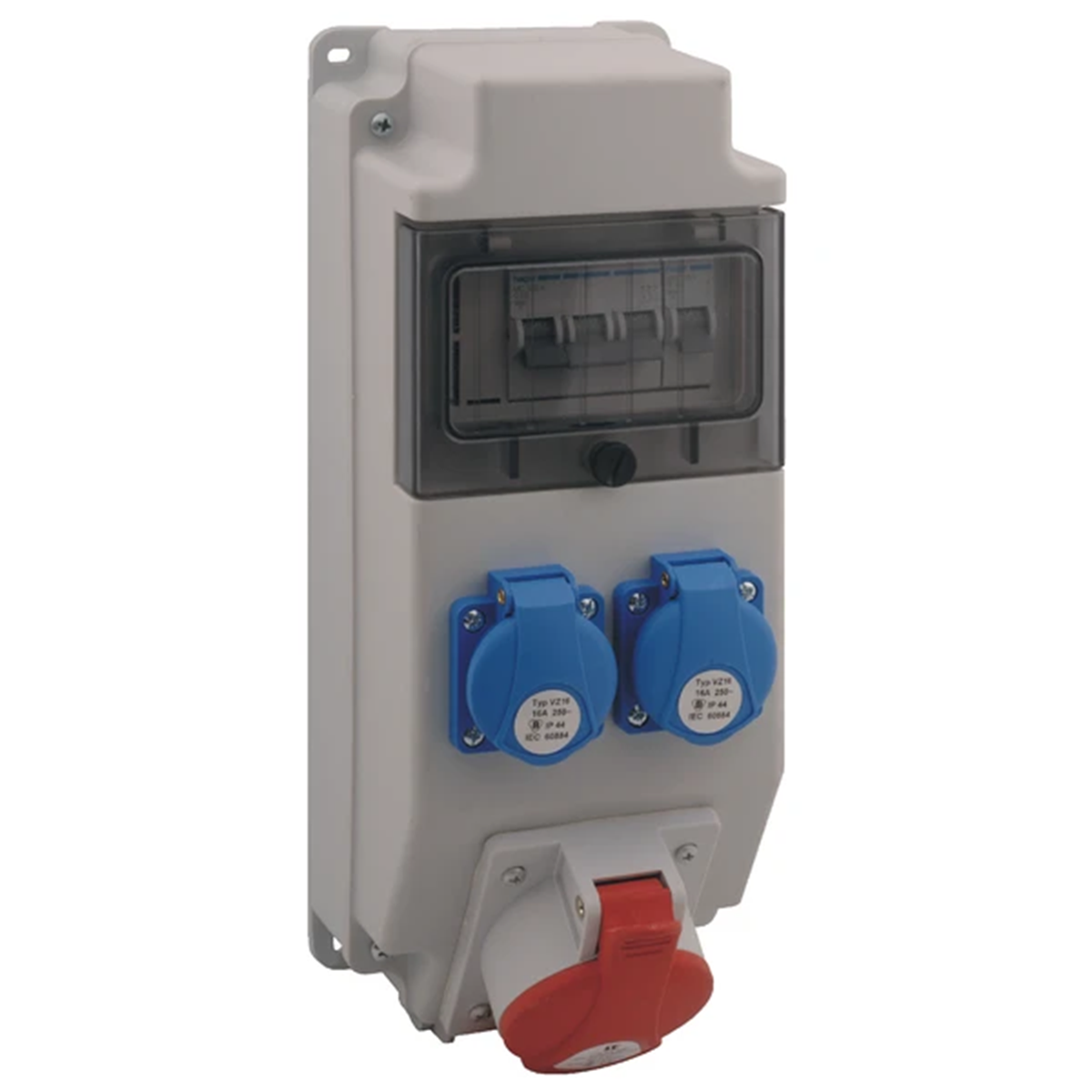

Low voltage switchgear with protections ROS 5\I-11 ROS5\I-11
local index:
RIN003SPAM
Catalog No:
ROS5\I-11
EAN code:
5907723053533
Manufacturer:
SPAMEL
Price:
133,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Low voltage switchgear with protections ROS 5\I-11. The new ROS type switchboards have many versions of different configurations. The switchgears can be equipped with single and three-phase overcurrent circuit breakers, a power switch or a direction of rotation switch and various types of sockets. The ROS switchgear is characterized by a modern shape, and the latest technologies were used in its production.
Technical data
Other technical data
-
ModelGroup distributor cabinet
-
Rated current32 A
-
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)1
-
Number of socket outlets with protective contact CEE 7/3 (type F)1
-
Main switchNone
-

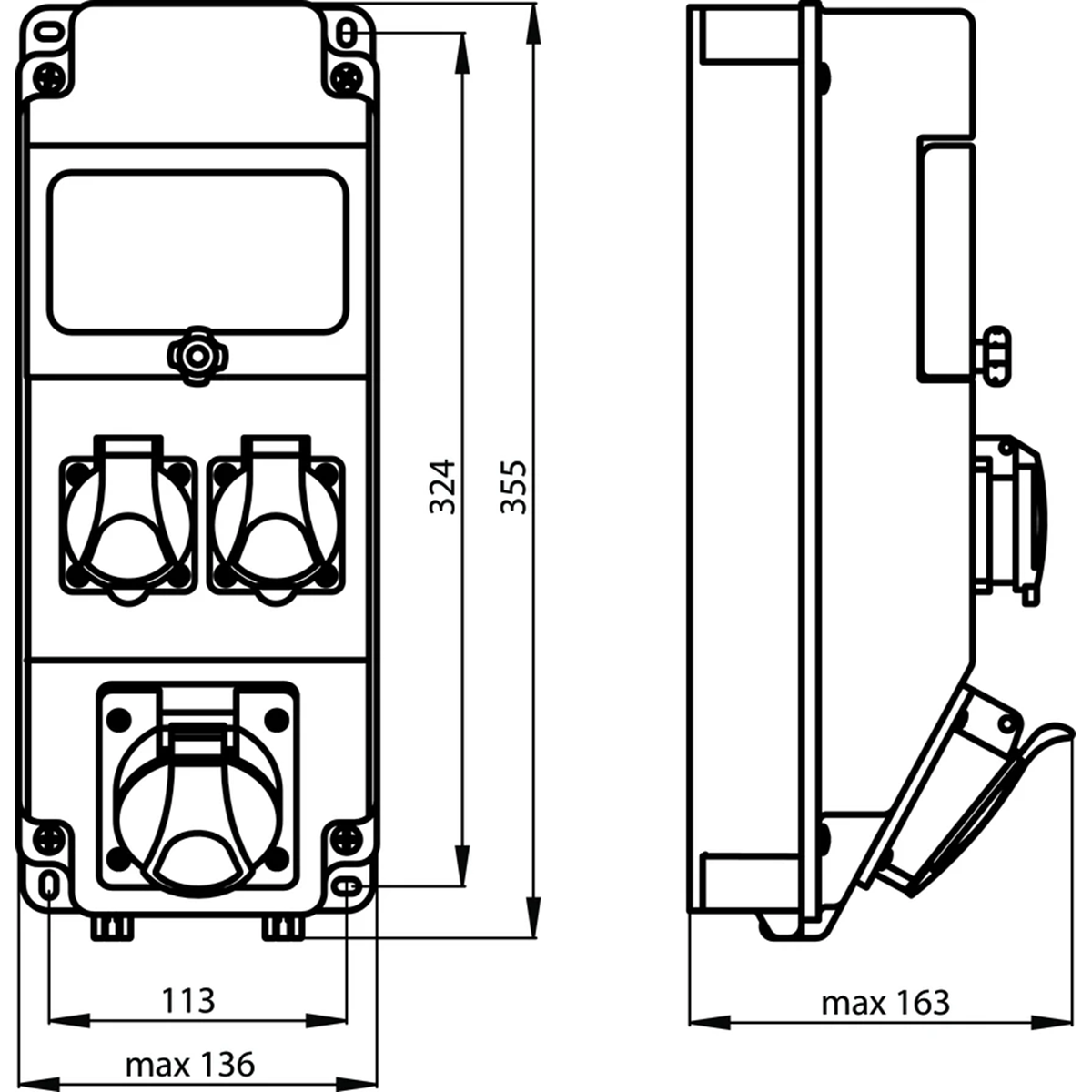

Width244 mm
-
Depth163 mm
-
Rated voltage230/400 V
-
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)0
-
Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE)0
-
Number of meter panels0
-
Main switch rated current32 A
-
Height355 mm
