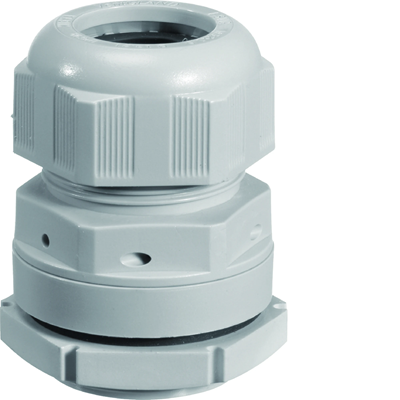

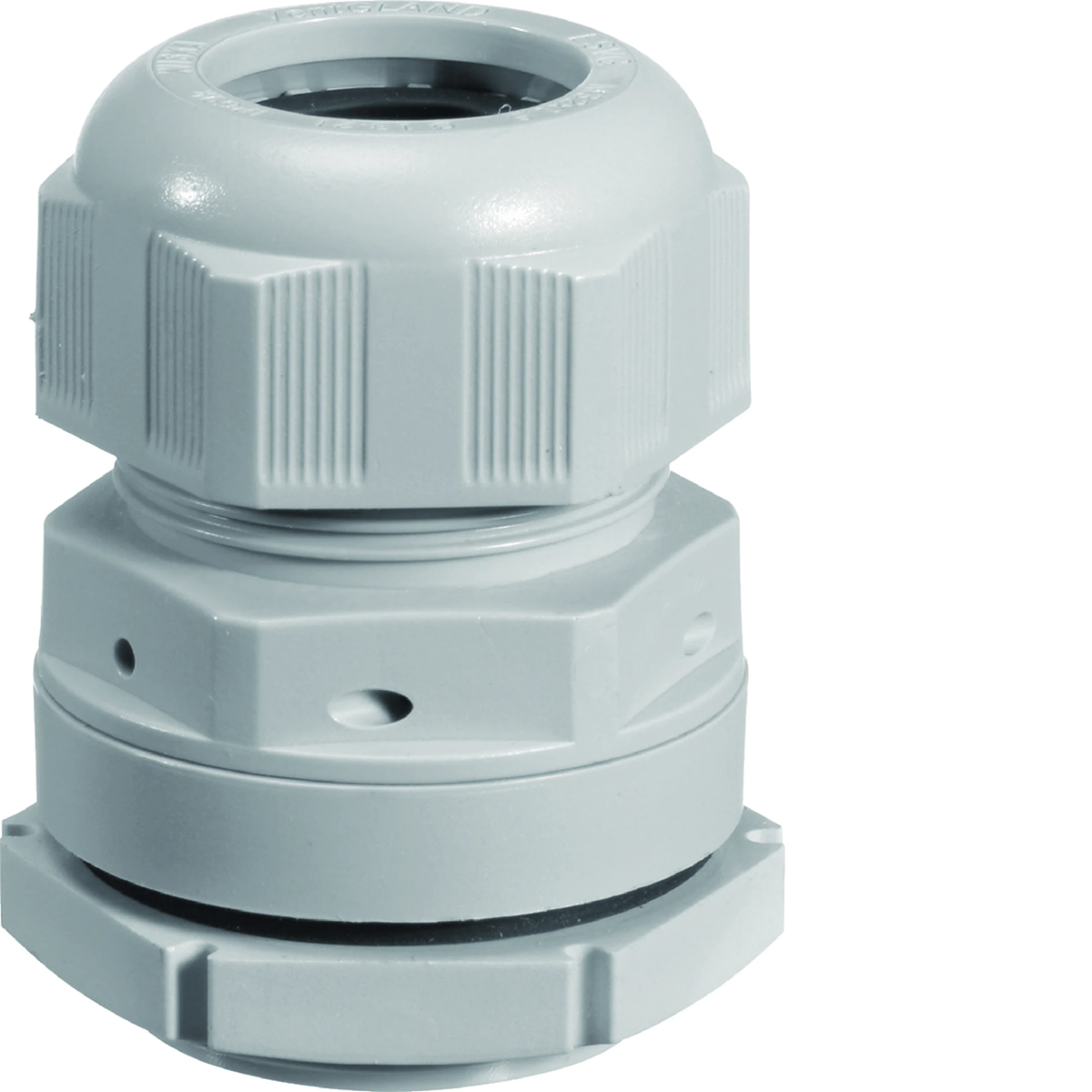

IP66 ventilation cable gland, M32 VZ032D

Index local:
RRR552HAGE
Numéro de catalogue:
VZ032D
Code EAN:
3250616669604
Producteur: HAGER
Color: Gray
Level of security: IP66
Prix:
236,57 zł
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 10 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

It enables ventilation of the inside of the switchgear, prevents the formation of water vapor condensation.

Données techniques

  • Color
    Gray
  • PKWIU
    22.23.19.0
  • Level of security
    IP66

Autres données techniques

  • Thread type
    Metric
  • Thread length
    9 mm
  • Hexagon angular dimension
    41 mm
  • Material
    Plastic
  • Surface protection
    Untreated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • Bend radius protection/trumpet flare
    Yes
  • Snapping in opening
    No
  • Multi seal area
    No
  • With strain relief
    Yes
  • Operating temperature
    -25 ... 40 °C
  • For Ex-Zone dust
    None
  • Screened
    No
  • Nominal thread size metric/PG
    32
  • Wrench width
    41 mm
  • Suitable for cable diameter
    9 ... 17 mm
  • Material quality
    Polyamide (PA)
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP65
  • RAL-number
    7035
  • With locknut
    Yes
  • Model
    Straight
  • Flat cable coupling
    No
  • Separable screw gland
    No
  • Explosion-tested version
    No
  • For armoured cable
    No

Détails du fabricant

Emballage en vrac

Une sorte de paquet Karton Pakiet Paleta Karton Pakiet Paleta
Quantité 1 pcs. 10 pcs. 5000 pcs. 1 pcs. 10 pcs. 5000 pcs.
poids (kg) 0,050 0,590 295,000 0,050 0,590 295,000
Largeur (m) 0,370 0,160 0,800 0,370 0,160 0,800
Longueur (m) 0,040 0,070 1,050 0,040 0,070 1,050
Profondeur (m) 0,510 0,260 1,200 0,510 0,260 1,200
