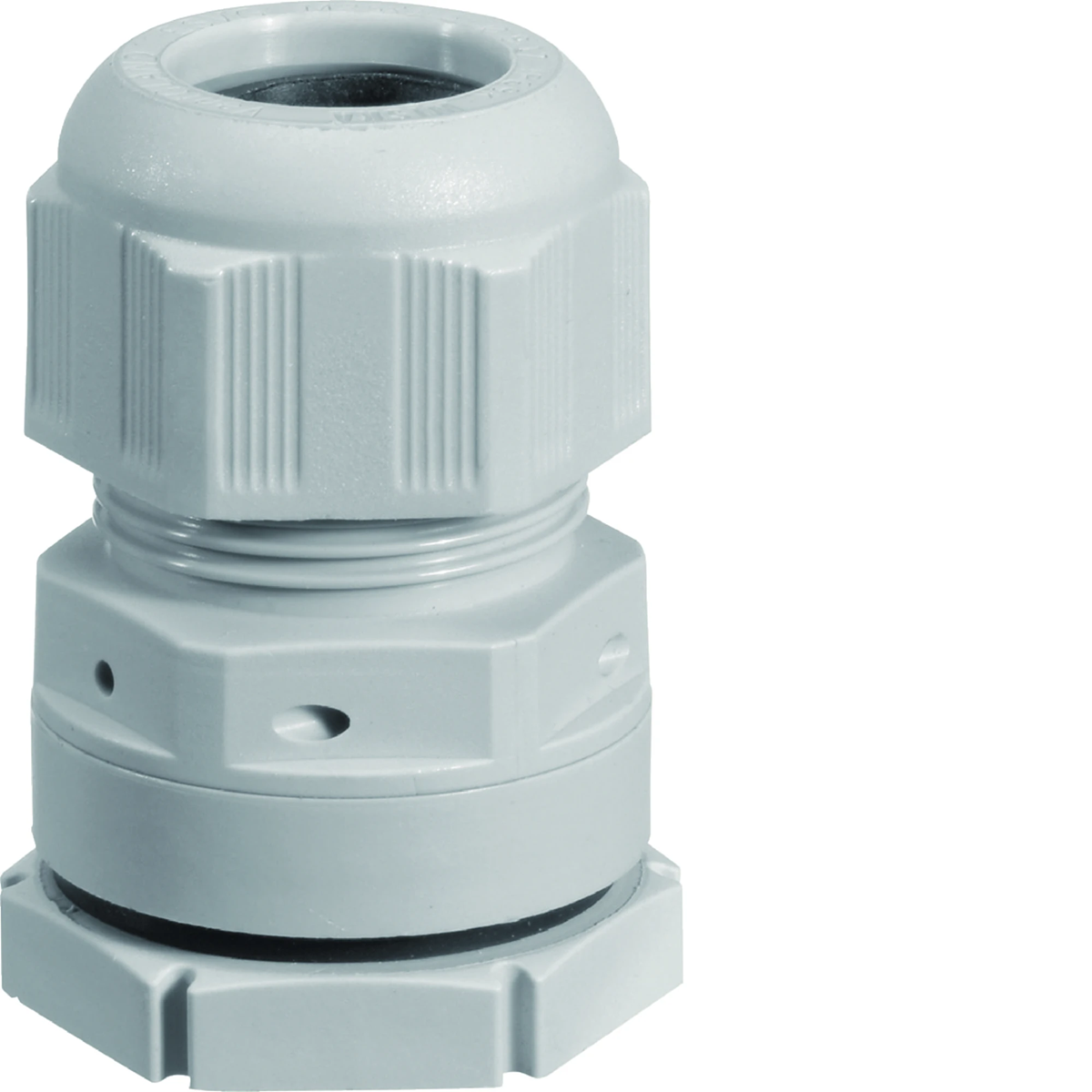

IP66 ventilation cable gland, M25 VZ025D

local index:
RRR551HAGE
Catalog No:
VZ025D
EAN code:
3250616669598
Manufacturer: HAGER
Color: Gray
Level of security: IP66
Price:
38,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

It enables ventilation of the inside of the switchgear, prevents the formation of water vapor condensation.

Technical data

  • Color
    Gray
  • PKWIU
    22.23.19.0
  • Level of security
    IP66

Other technical data

  • Thread type
    Metric
  • Thread length
    8 mm
  • Hexagon angular dimension
    32 mm
  • Material
    Plastic
  • Surface protection
    Untreated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • Bend radius protection/trumpet flare
    Yes
  • Snapping in opening
    No
  • Multi seal area
    No
  • With strain relief
    Yes
  • Operating temperature
    -25 ... 40 °C
  • For Ex-Zone dust
    None
  • Screened
    No
  • Nominal thread size metric/PG
    25
  • Wrench width
    32 mm
  • Suitable for cable diameter
    11 ... 17 mm
  • Material quality
    Polyamide (PA)
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP65
  • RAL-number
    7035
  • With locknut
    Yes
  • Model
    Straight
  • Flat cable coupling
    No
  • Separable screw gland
    No
  • Explosion-tested version
    No
  • For armoured cable
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 10 pcs. 5000 pcs.
Weight (kg) 0,021 0,025 0,315 180,500
Width (m) 0,032 0,065 0,160 0,800
Length (m) 0,032 0,020 0,065 1,050
Depth (m) 0,052 0,090 0,260 1,200
