IP65, M40 cable gland VZ040M

local index:
RRR549HAGE
Catalog No:
VZ040M
EAN code:
3250616669550

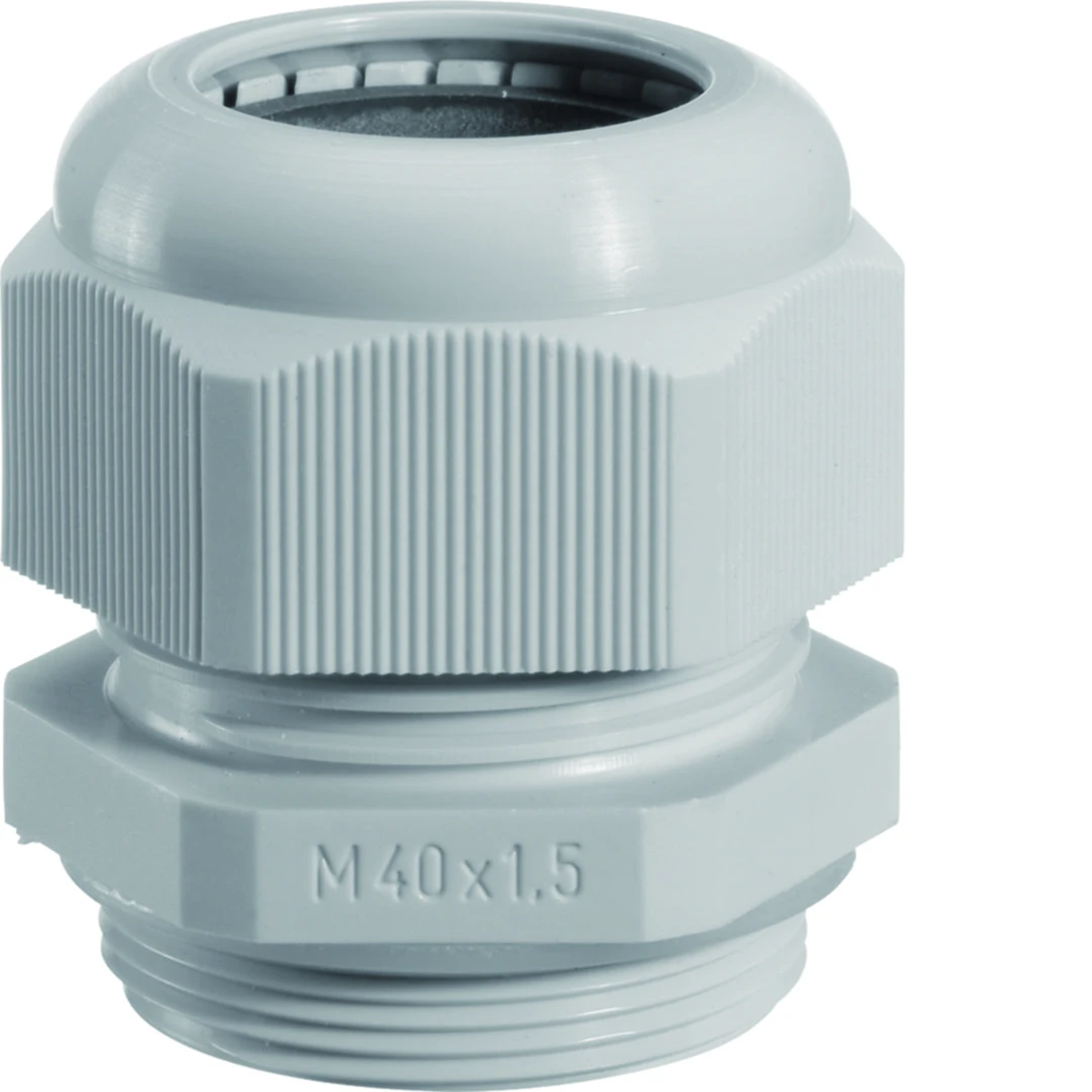

IP65, M40 cable gland
IP65, M40 cable gland

Click on the photo to enlarge

Manufacturer: HAGER
Color: Gray
Level of security: IP65
See full description
Price:
7,70 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

IP65 metric cable glands
VZ016M, VZ020M, VZ025M cable glands are supplied without a rubber seal, mounted between the nut securing the glands and the casing. Use
to obtain IP65 degree of protection necessarily an additional gasket.

Technical data

  • Color
    Gray
  • PKWIU
    22.23.19.0
  • Level of security
    IP65

Other technical data

  • Thread type
    Metric
  • Thread length
    9 mm
  • Hexagon angular dimension
    50 mm
  • Material
    Plastic
  • Surface protection
    Untreated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • Bend radius protection/trumpet flare
    Yes
  • Snapping in opening
    No
  • Multi seal area
    No
  • With strain relief
    Yes
  • Operating temperature
    -25 ... 40 °C
  • For Ex-Zone dust
    None
  • Screened
    No
  • Nominal thread size metric/PG
    40
  • Wrench width
    50 mm
  • Suitable for cable diameter
    19 ... 28 mm
  • Material quality
    Polyamide (PA)
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP65
  • RAL-number
    7035
  • With locknut
    Yes
  • Model
    Straight
  • Flat cable coupling
    No
  • Separable screw gland
    No
  • Explosion-tested version
    No
  • For armoured cable
    No

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 10 pcs. 20 pcs. 480 pcs. 10 pcs. 20 pcs. 480 pcs.
Weight (kg) 0,550 1,110 26,640 0,550 1,110 26,640
Width (m) 0,180 0,310 0,800 0,180 0,310 0,800
Length (m) 0,120 0,210 1,050 0,120 0,210 1,050
Depth (m) 0,190 0,360 1,200 0,190 0,360 1,200
