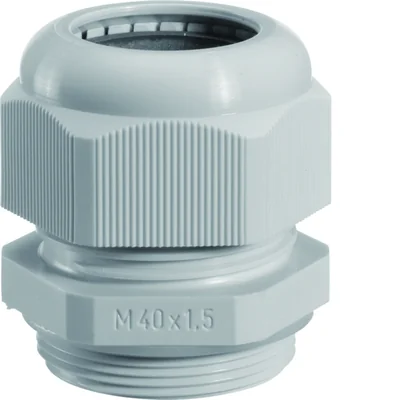

IP65, M40 cable gland VZ040M

local index:
RRR549HAGE
Catalog No:
VZ040M
EAN code:
3250616669550
Manufacturer: HAGER
Color: Gray
Level of security: IP65
Price:
7,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

IP65 metric cable glands
VZ016M, VZ020M, VZ025M cable glands are supplied without a rubber seal, mounted between the nut securing the glands and the casing. Use
to obtain IP65 degree of protection necessarily an additional gasket.

Technical data

  • Color
    Gray
  • PKWIU
    22.23.19.0
  • Level of security
    IP65

Other technical data

  • Thread type
    Metric
  • Thread length
    9 mm
  • Hexagon angular dimension
    50 mm
  • Material
    Plastic
  • Surface protection
    Untreated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • Bend radius protection/trumpet flare
    Yes
  • Snapping in opening
    No
  • Multi seal area
    No
  • With strain relief
    Yes
  • Operating temperature
    -25 ... 40 °C
  • For Ex-Zone dust
    None
  • Screened
    No
  • Nominal thread size metric/PG
    40
  • Wrench width
    50 mm
  • Suitable for cable diameter
    19 ... 28 mm
  • Material quality
    Polyamide (PA)
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP65
  • RAL-number
    7035
  • With locknut
    Yes
  • Model
    Straight
  • Flat cable coupling
    No
  • Separable screw gland
    No
  • Explosion-tested version
    No
  • For armoured cable
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 20 pcs. 480 pcs.
Weight (kg) 0,057 0,580 1,540 61,960
Width (m) 0,050 0,180 0,315 0,800
Length (m) 0,050 0,125 0,215 1,050
Depth (m) 0,053 0,200 0,360 1,200
