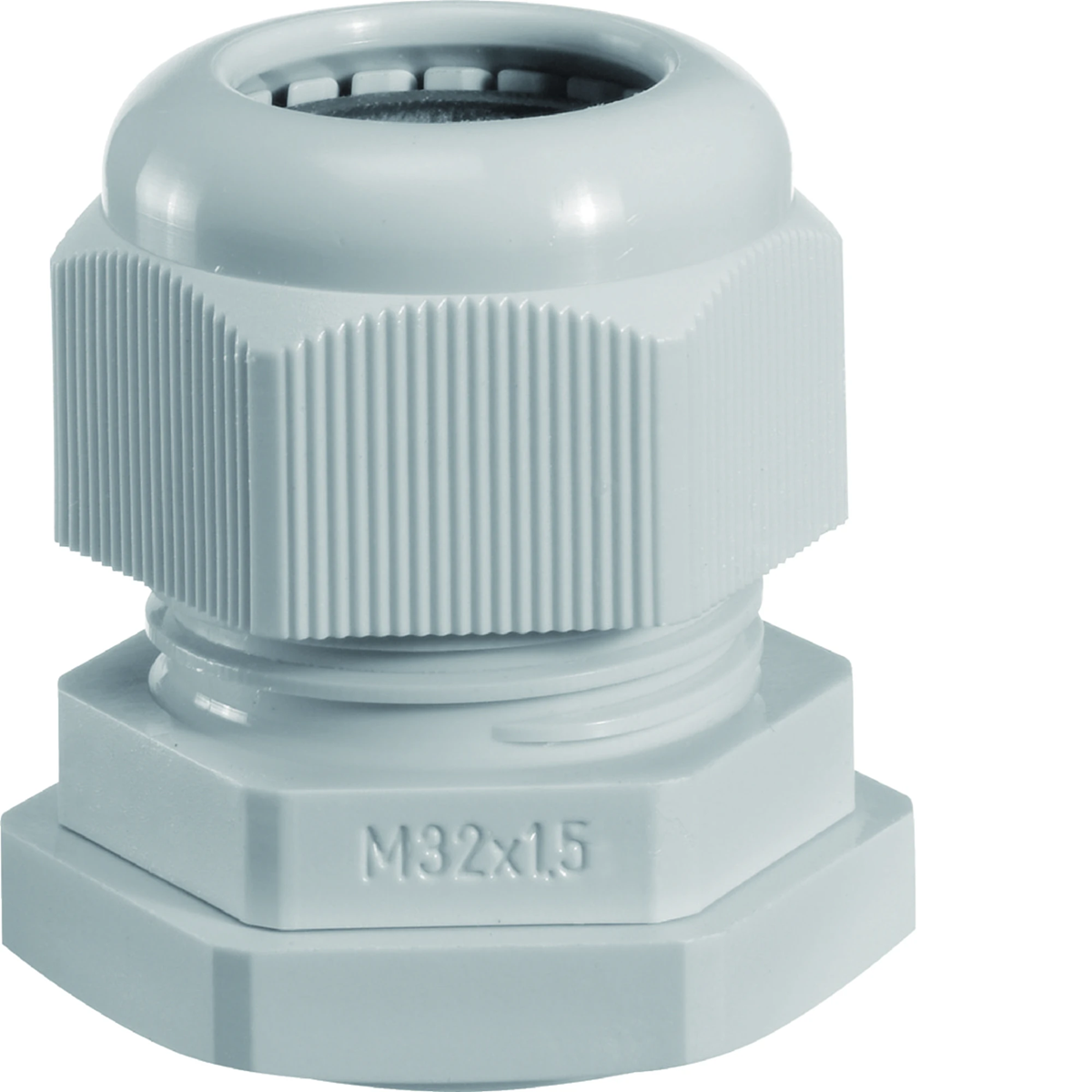

IP65, M32 cable gland VZ032M

Name: IP65, M32 cable gland
Brand: HAGER
SKU: RRR548HAGE
Price: 4.51 PLN

local index:

RRR548HAGE

Catalog No:

VZ032M

EAN code:

3250616669543

Click on the photo to enlarge

Manufacturer: HAGER

Color: Gray

Level of security: IP65

See full description

Price:

4,51 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

IP65 metric cable glands
VZ016M, VZ020M, VZ025M cable glands are supplied without a rubber seal, mounted between the nut securing the glands and the casing. Use
to obtain IP65 degree of protection necessarily an additional gasket.

Technical data

Color

Gray
PKWIU

22.23.19.0

Level of security

IP65

Other technical data

Thread type

Metric
Thread length

9 mm
Hexagon angular dimension

41 mm
Material

Plastic
Surface protection

Untreated
Glass-fibre reinforced

No
Shock resistant

Yes
Bend radius protection/trumpet flare

Yes
Snapping in opening

No
Multi seal area

No
With strain relief

Yes
Operating temperature

-25 ... 40 °C
For Ex-Zone dust

None
Screened

No

Nominal thread size metric/PG

32
Wrench width

41 mm
Suitable for cable diameter

15 ... 21 mm
Material quality

Polyamide (PA)
Halogen free

Yes
Degree of protection (IP)

IP65
RAL-number

7035
With locknut

Yes
Model

Straight
Flat cable coupling

No
Separable screw gland

No
Explosion-tested version

No
For armoured cable

No

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
Tax identification number

6460015532

Bulk packaging

A kind of package	Karton	Paleta
Quantity	20 pcs.	3600 pcs.
Weight (kg)	0,700	126,000
Width (m)	0,077	0,800
Length (m)	0,044	1,200
Depth (m)	0,136	1,200
