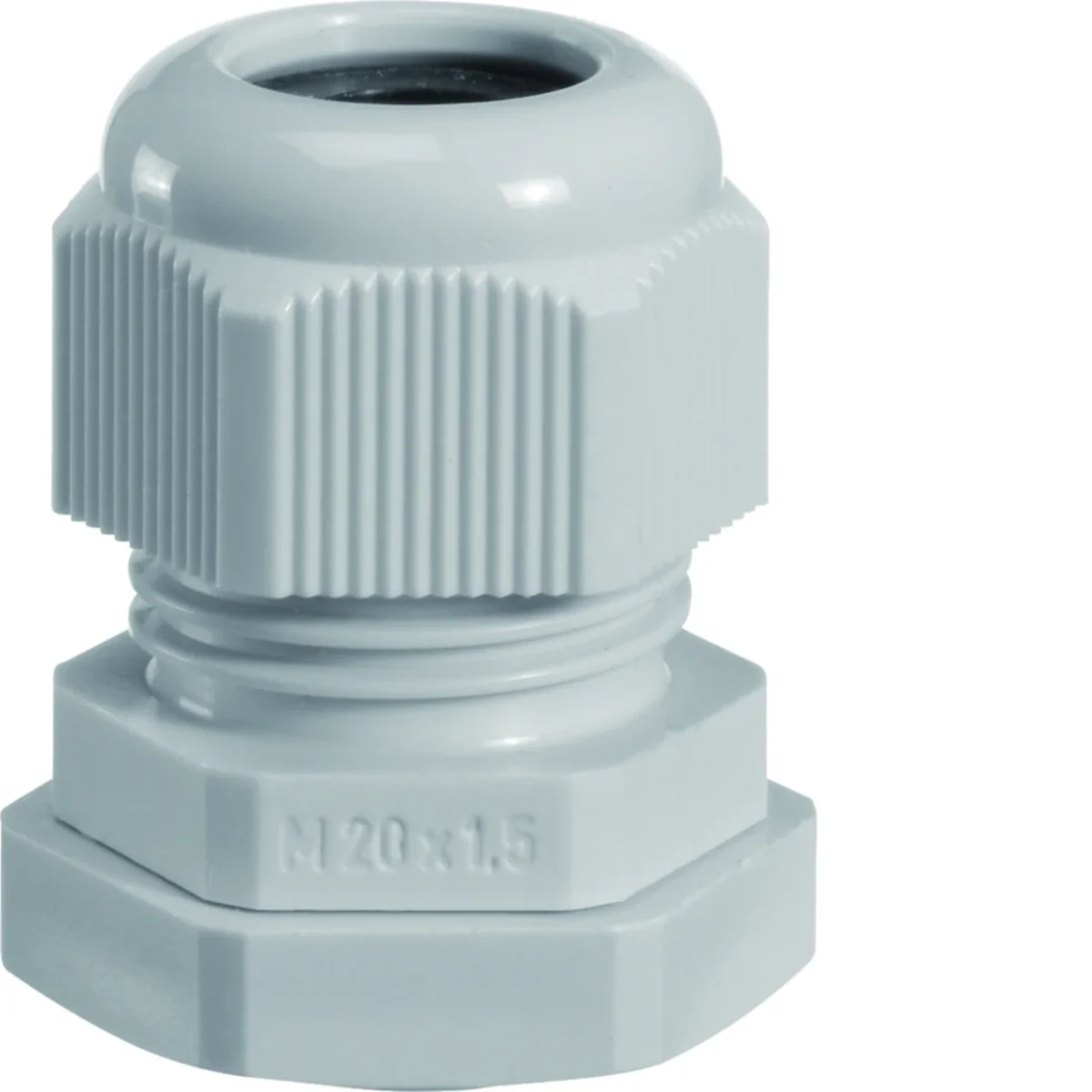

IP65, M20 cable gland VZ020M

local index:
RRR546HAGE
Catalog No:
VZ020M
EAN code:
3250616669529
Manufacturer: HAGER
Color: Gray
Level of security: IP65
Price:
2,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

IP65 metric cable glands
VZ016M, VZ020M, VZ025M cable glands are supplied without a rubber seal, mounted between the nut securing the glands and the housing. Use
to obtain IP65 degree of protection necessarily an additional gasket.

Technical data

  • Color
    Gray
  • PKWIU
    22.23.19.0
  • Level of security
    IP65

Other technical data

  • Suitable for cable diameter
    8 ... 13 mm
  • Surface protection
    Untreated
  • Degree of protection (IP)
    IP65
  • Bend radius protection/trumpet flare
    Yes
  • Material
    Plastic
  • Halogen free
    Yes
  • RAL-number
    7035
  • Multi seal area
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 20 pcs. 600 pcs. 3600 pcs.
Weight (kg) 0,010 0,254 7,620 70,720
Width (m) 0,026 0,140 0,413 0,800
Length (m) 0,035 0,100 0,376 1,150
Depth (m) 0,026 0,095 0,410 1,200
