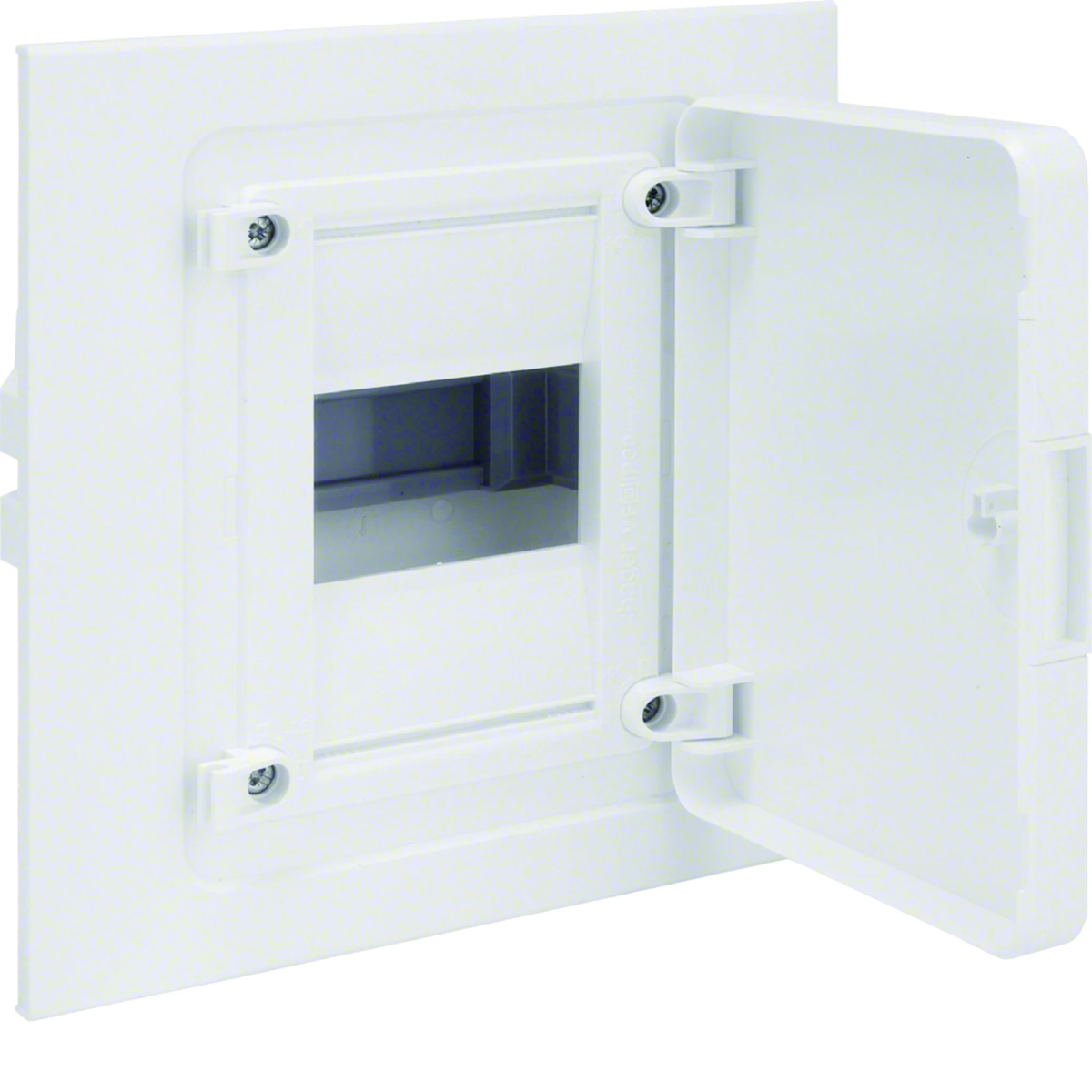

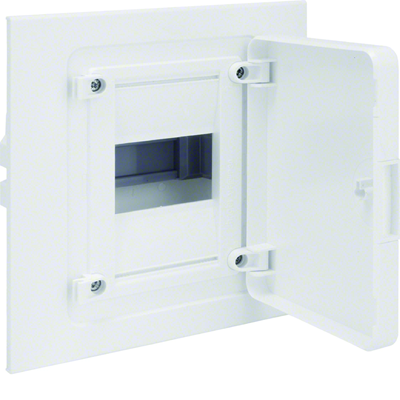

IP41 4-module flush-mounted switchgear VF104PD

local index:
RIP022HAGE
Catalog No:
VF104PD
EAN code:
3250616463196
Manufacturer: HAGER
Depth [mm]: 97.5
Number of doors: 1
Number of modules: 4
Price:
26,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Full door.

Technical data

  • Depth [mm]
    97.5
  • Number of modules
    4
  • Protection class
    II
  • Housing material
    Material
  • Level of security
    IP40
  • Height [mm]
    225
  • Number of rows for cameras
    1
  • PKWIU
    27.12.40.0
  • Number of doors
    1
  • Number of rows
    1
  • Color
    White
  • Installation
    Flush-mounted
  • Width [mm]
    204
  • Glow wire test [°C]
    850
  • Lock type
    Latch

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    4
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    204 mm
  • Built-in depth
    72 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • Type of closure
    Other
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    225 mm
  • Depth
    97.5 mm
  • Inner depth
    97.5 mm
  • With mounting plate
    No
  • Colour
    White
  • With lock
    No

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 34 pcs. 136 pcs.
Weight (kg) 0,548 0,650 23,420 118,680
Width (m) 0,204 0,220 0,580 0,800
Length (m) 0,225 0,110 0,480 1,110
Depth (m) 0,097 0,235 0,790 1,200
